DSI Straight Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mm

Roll over image to zoom in Click on image to zoom

DSI Straight Multi Unit Abutment Next-Gen(M1.7) 5.0mm Full Set - Internal Hex Ø2.42mm

SKU: PMUS-10

Your cart
Variant	Variant total	Quantity	Price	Variant total
1.0mm	1.0mm $75.90/ea	$0.00	Quantity	$75.90/ea	$0.00

2.0mm	2.0mm $75.90/ea	$0.00	Quantity	$75.90/ea	$0.00

3.0mm	3.0mm $75.90/ea	$0.00	Quantity	$75.90/ea	$0.00

4.0mm	4.0mm $75.90/ea	$0.00	Quantity	$75.90/ea	$0.00

Add To Wishlist

The DSI Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.

DSI Next-Gen multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Next-Gen multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals‍

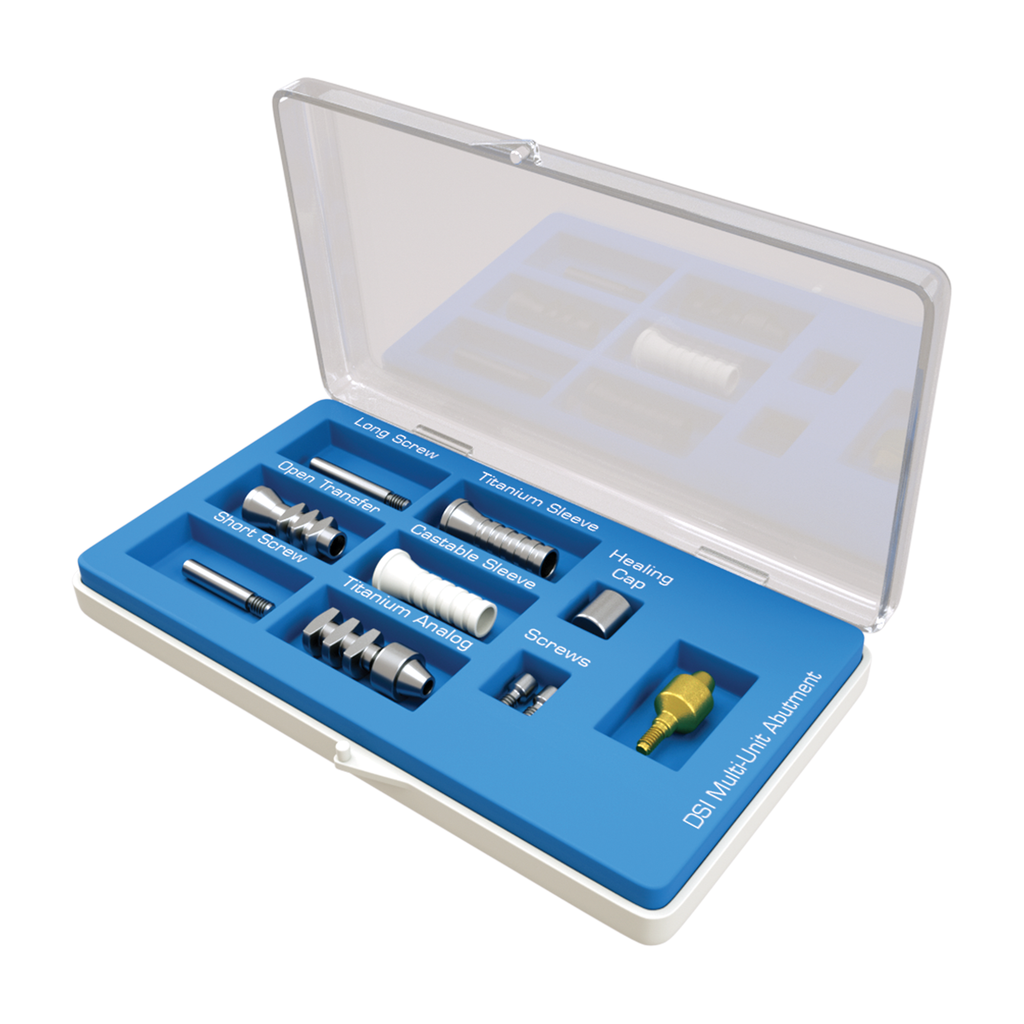

The most commonly used and versatile is the Full Set, which includes

One abutment of the chosen size:

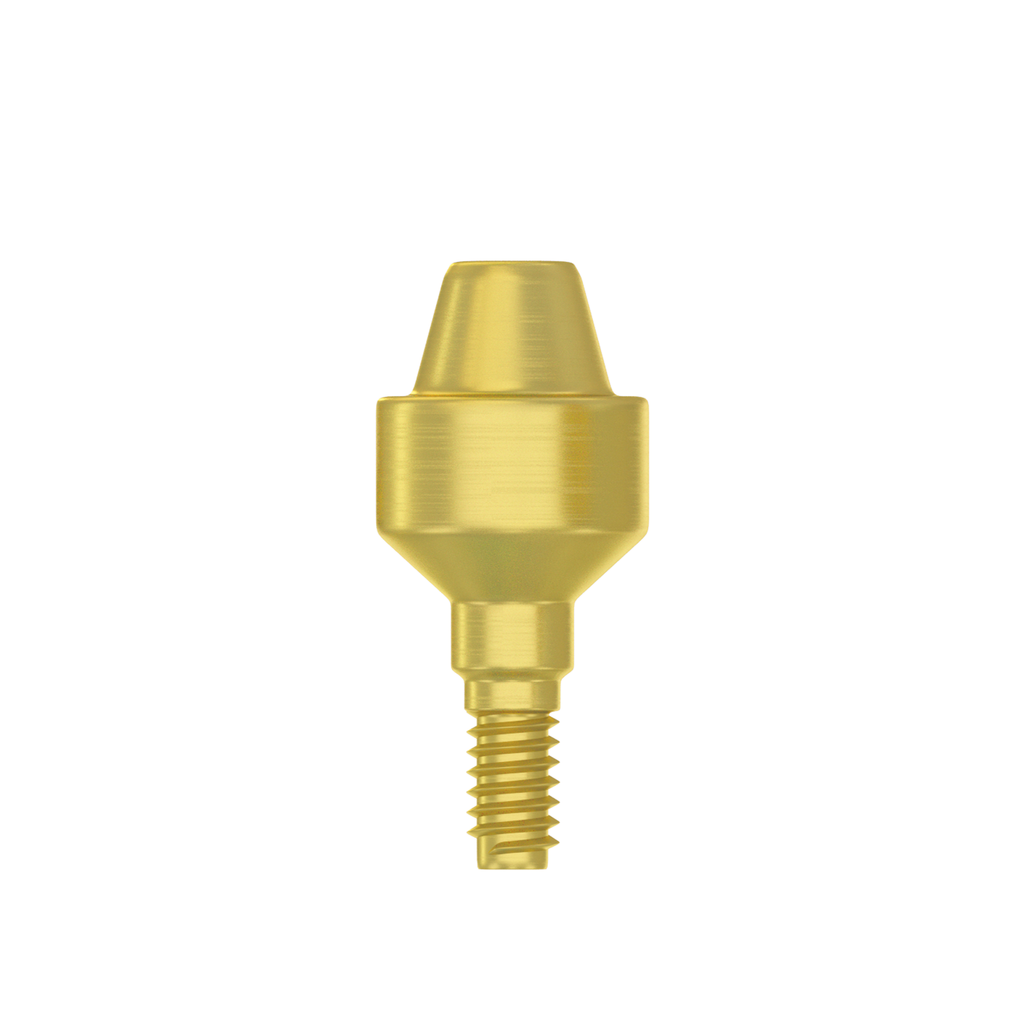

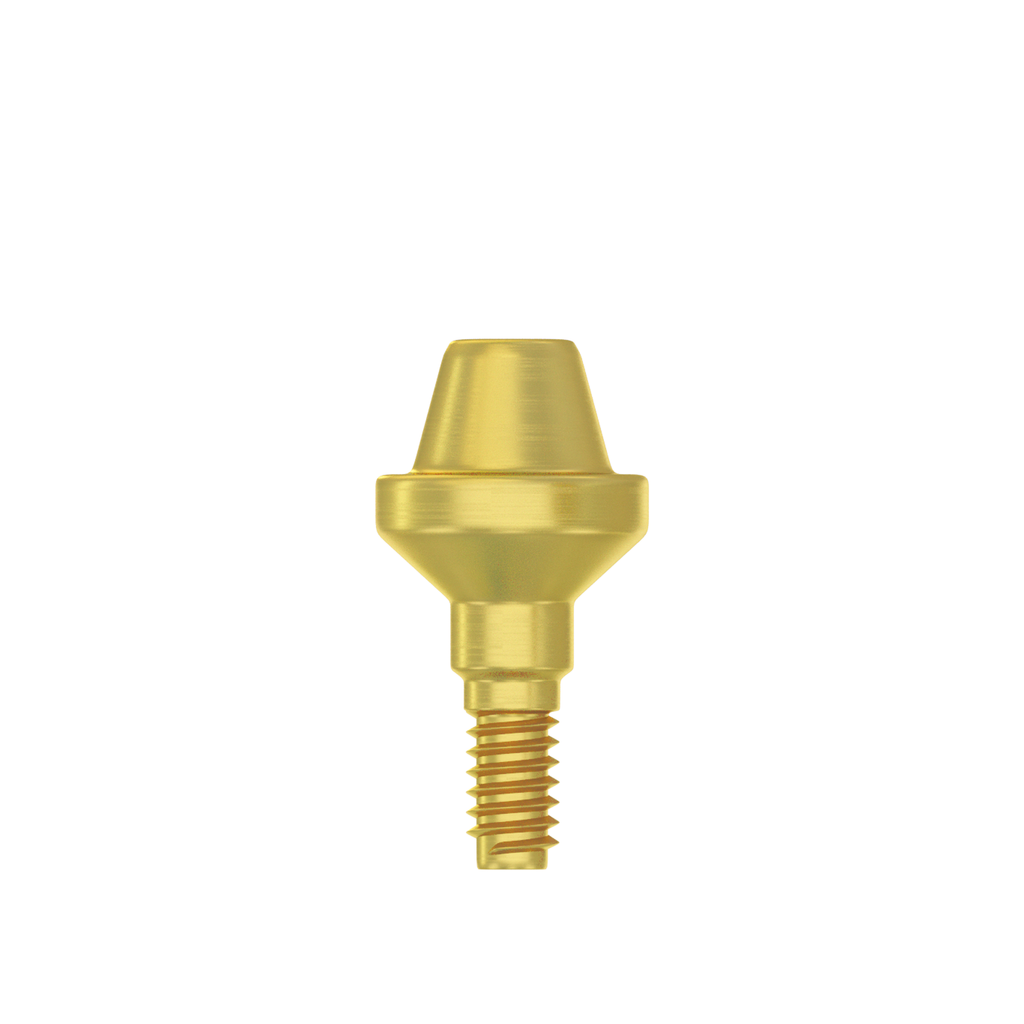

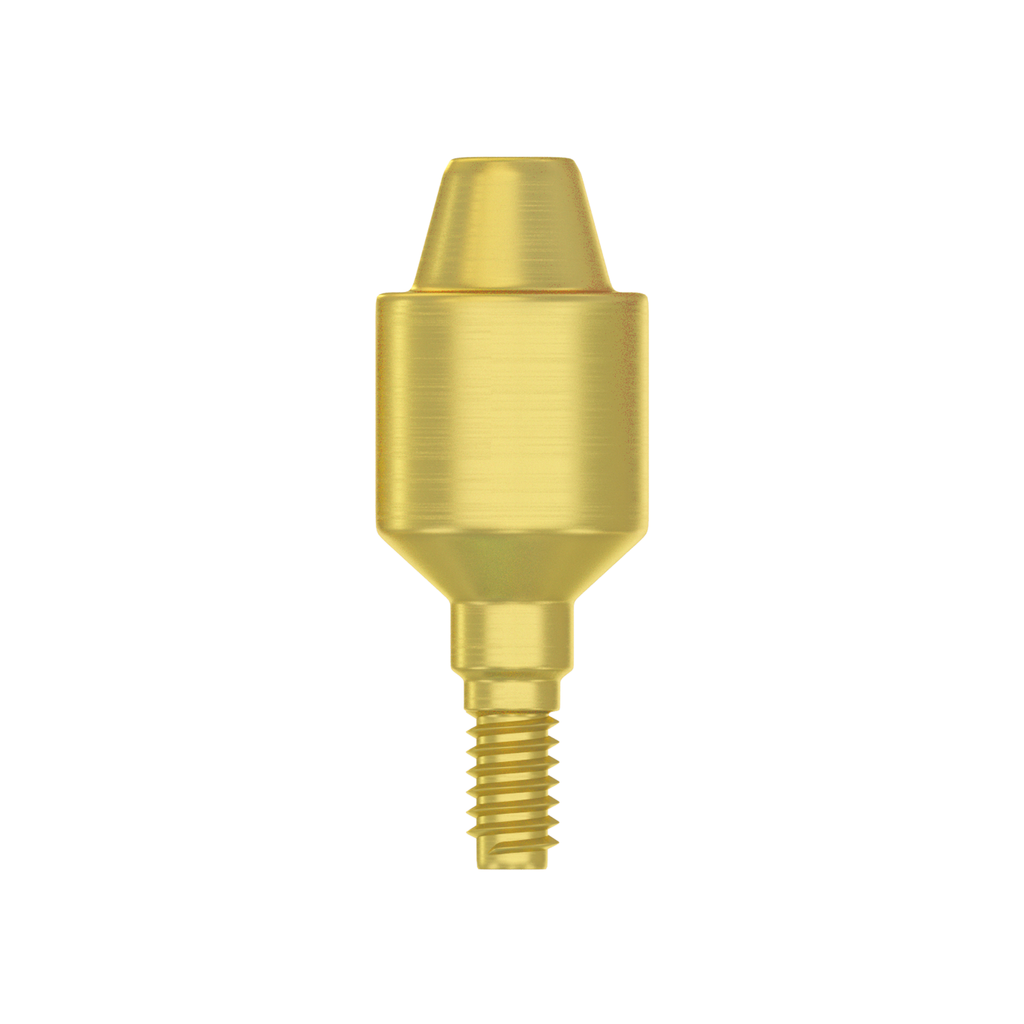

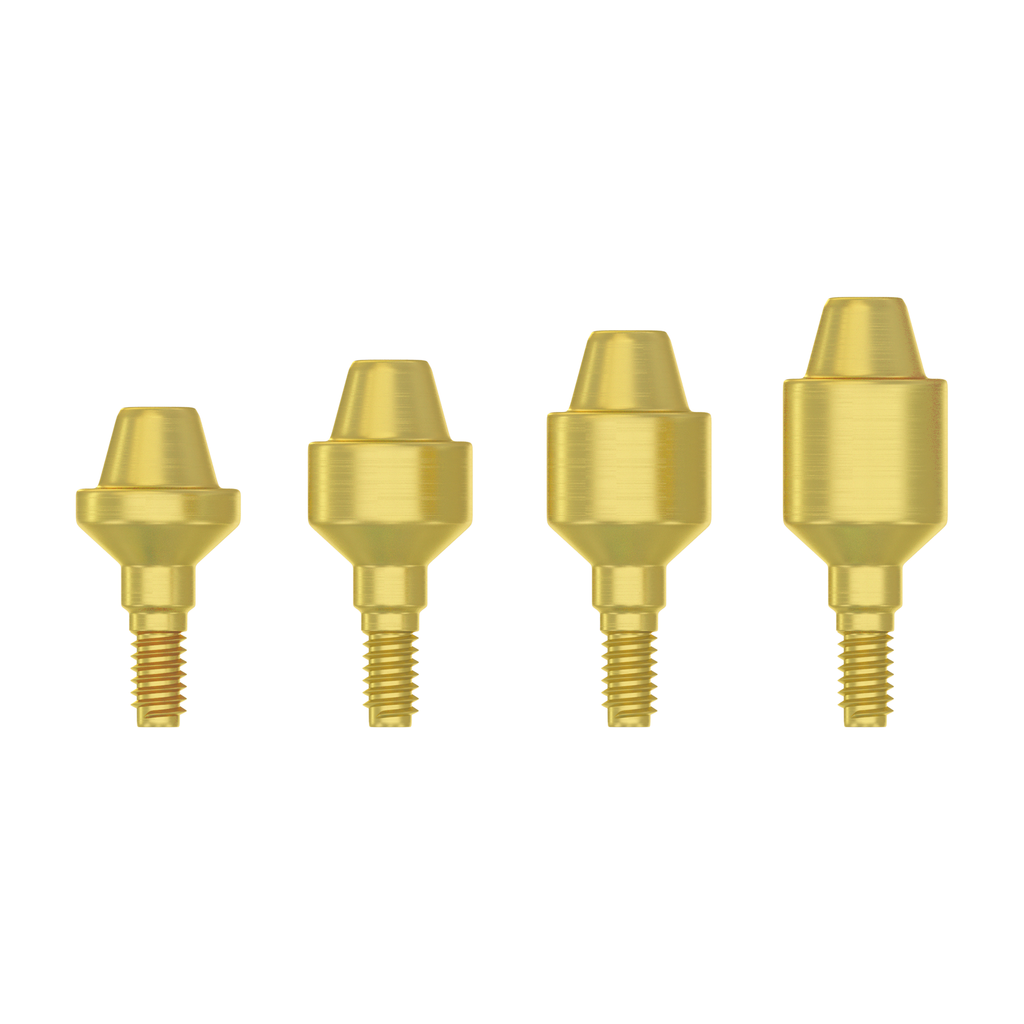

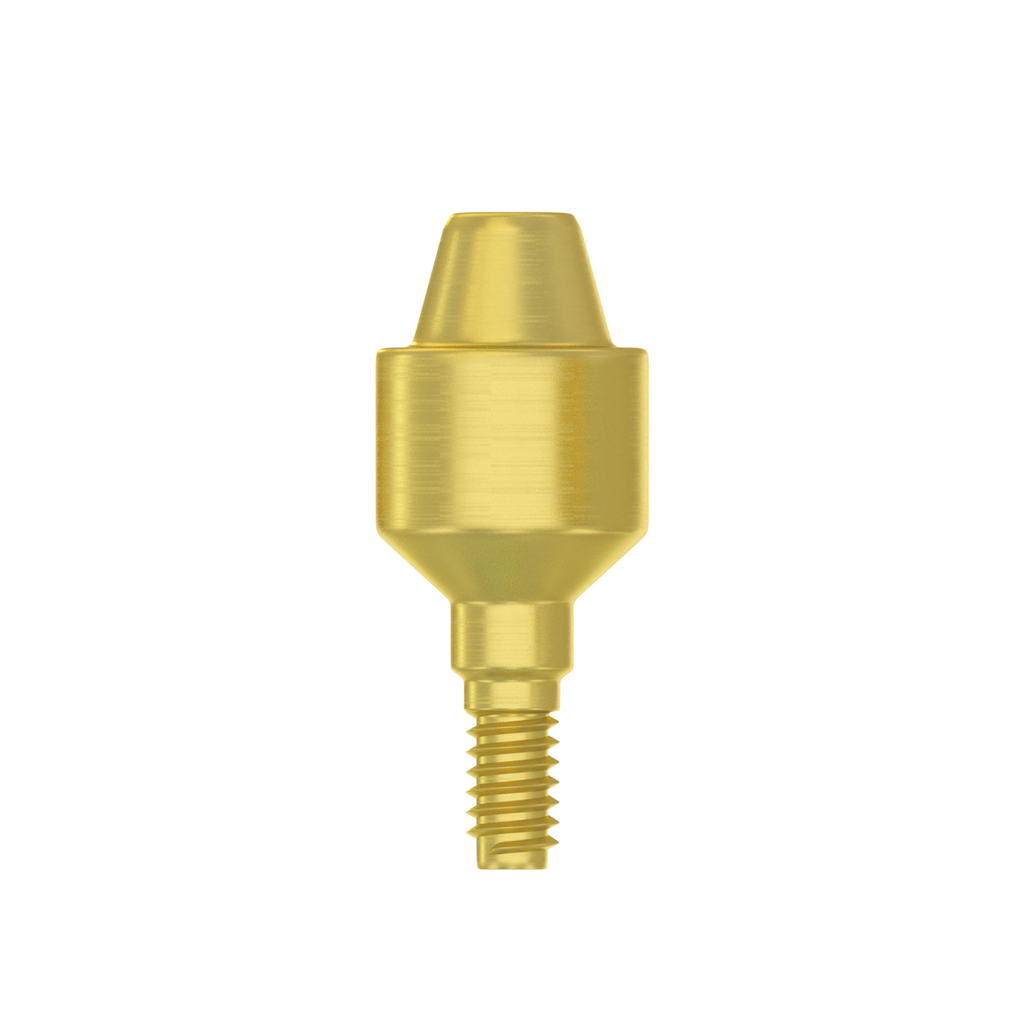

MUS-10, MUS-20 , MUS-30 , MUS-40: Straight Multi Unit Abutment Ø5.0mm ,1.0-4.0mm x1

And the following parts:

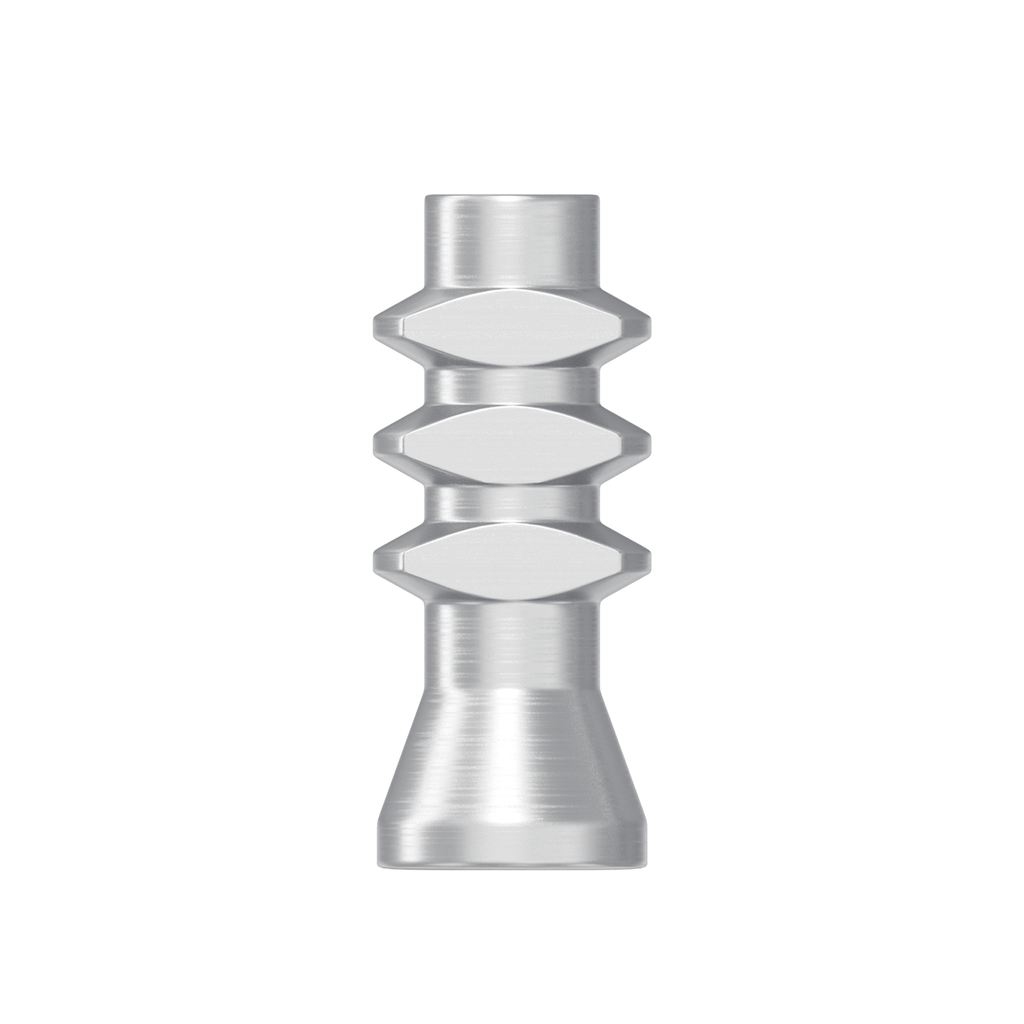

MU-S-OT: Open Tray Transfer Ø 5.0mm , L=9.0mm, H=11.5mm x 1

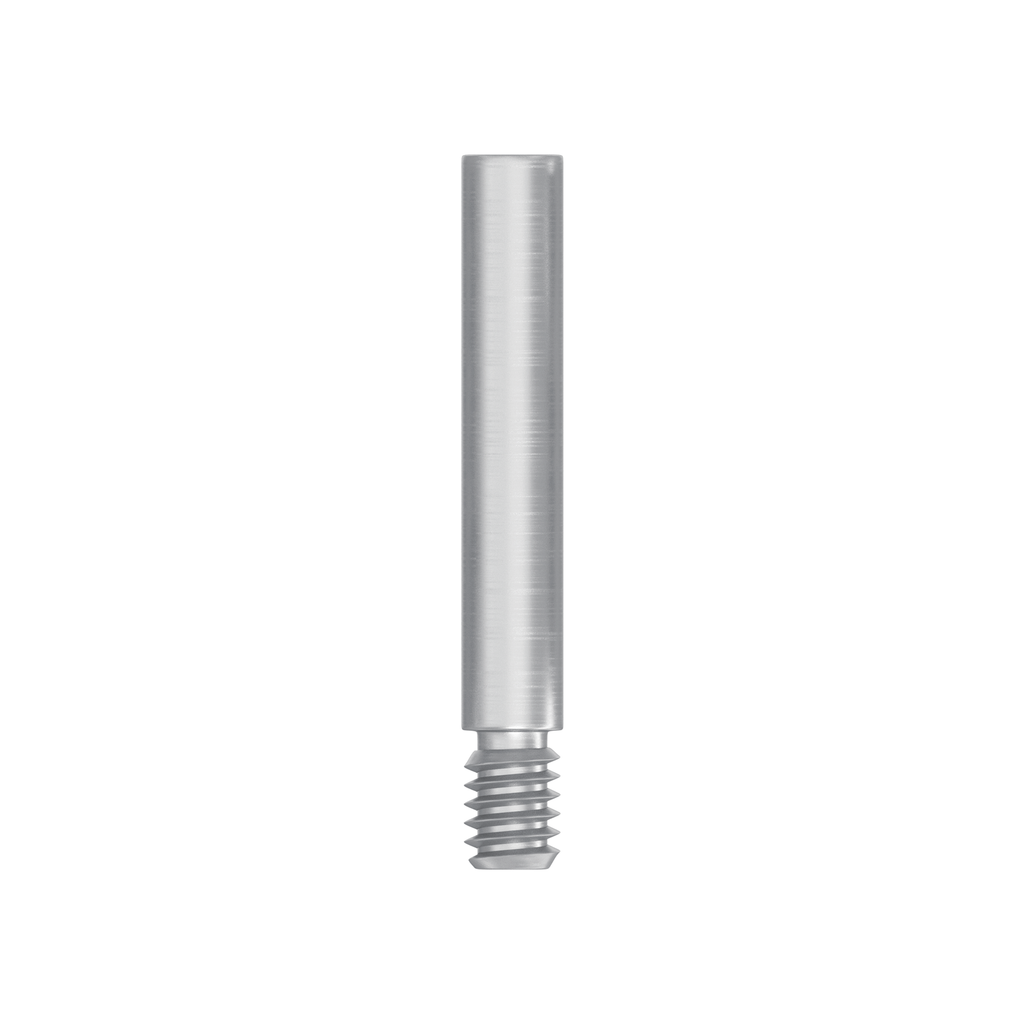

MU-S-LT: Long Transfer Screw Ø 2.0mm , L=12.0mm, H=14.0mm x 1

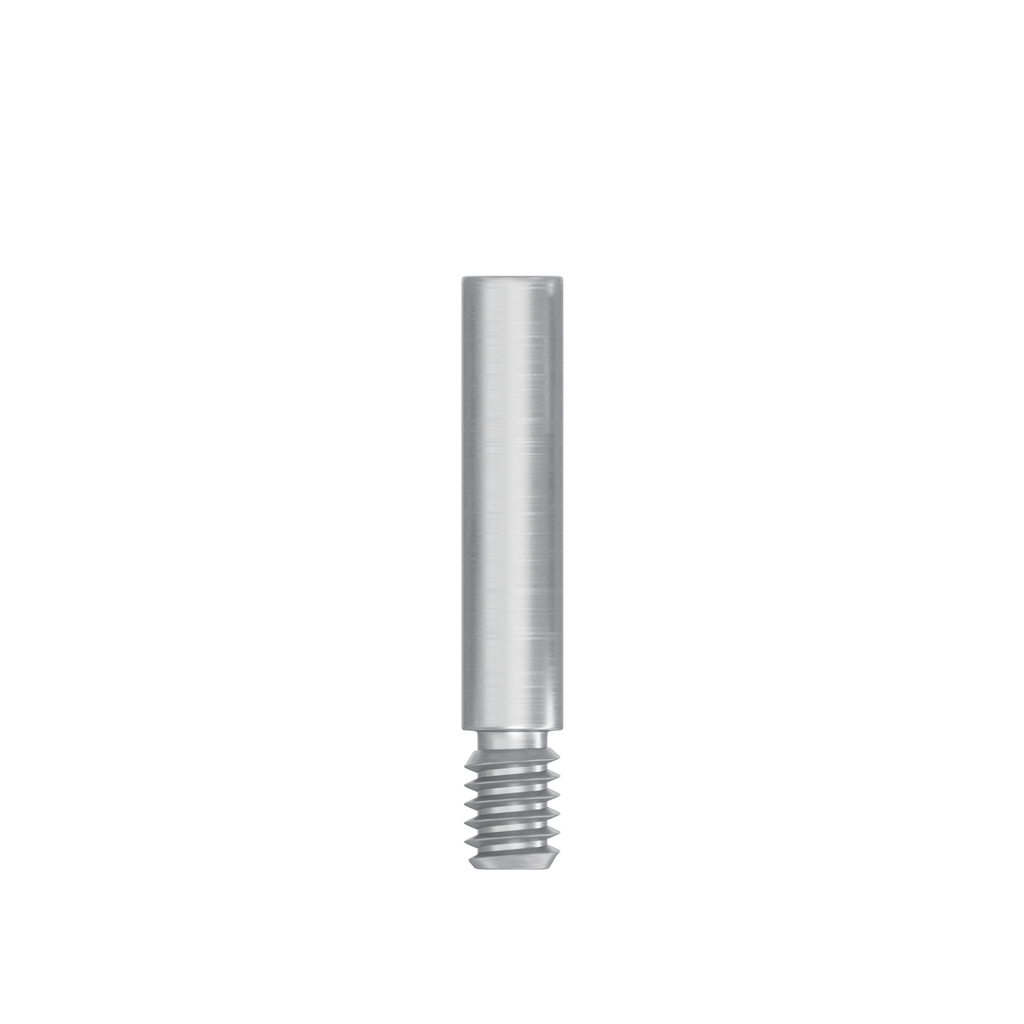

MU-S-ST: Short Transfer Screw Ø 2.0mm , L=9.0mm, H=11.0mm x 1

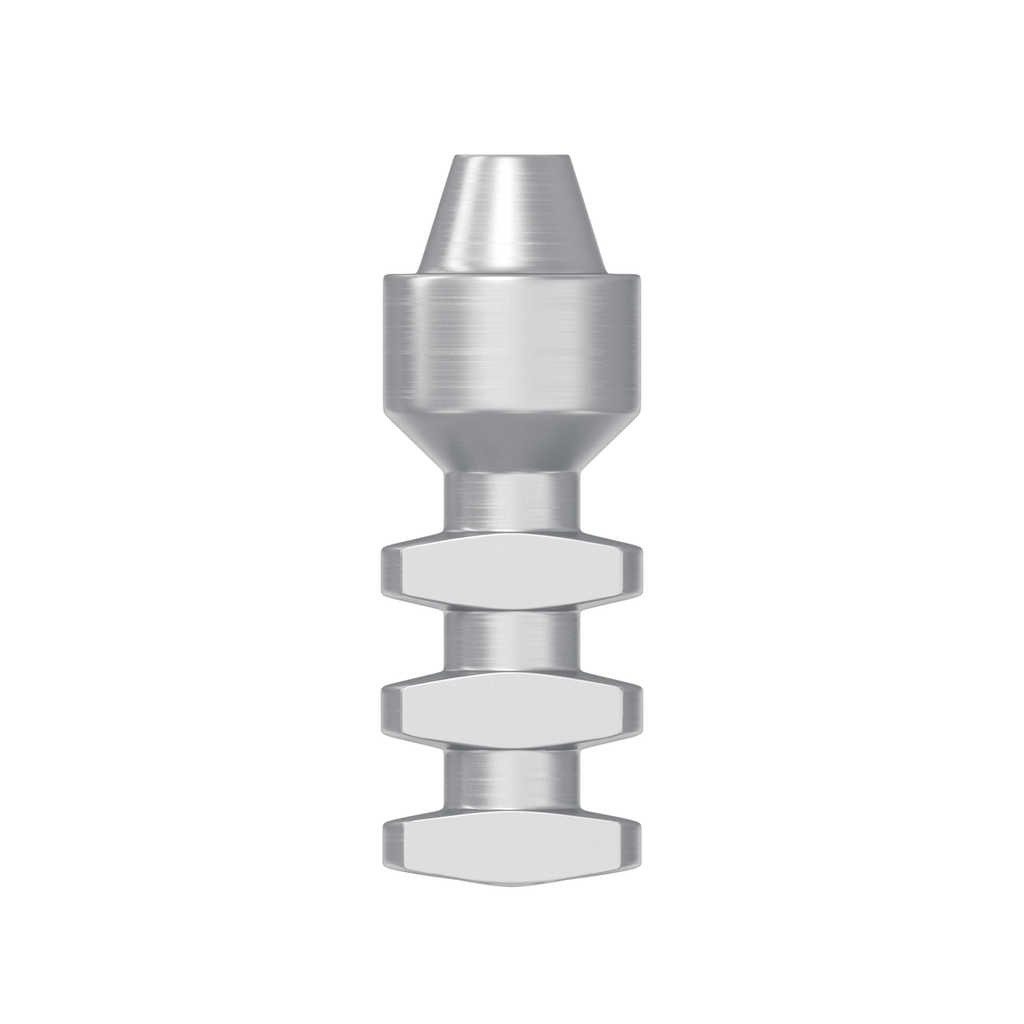

MU-S-AN: Titanium Analog Ø 5.0mm , L=7.3mm, H=13.5mm x 1

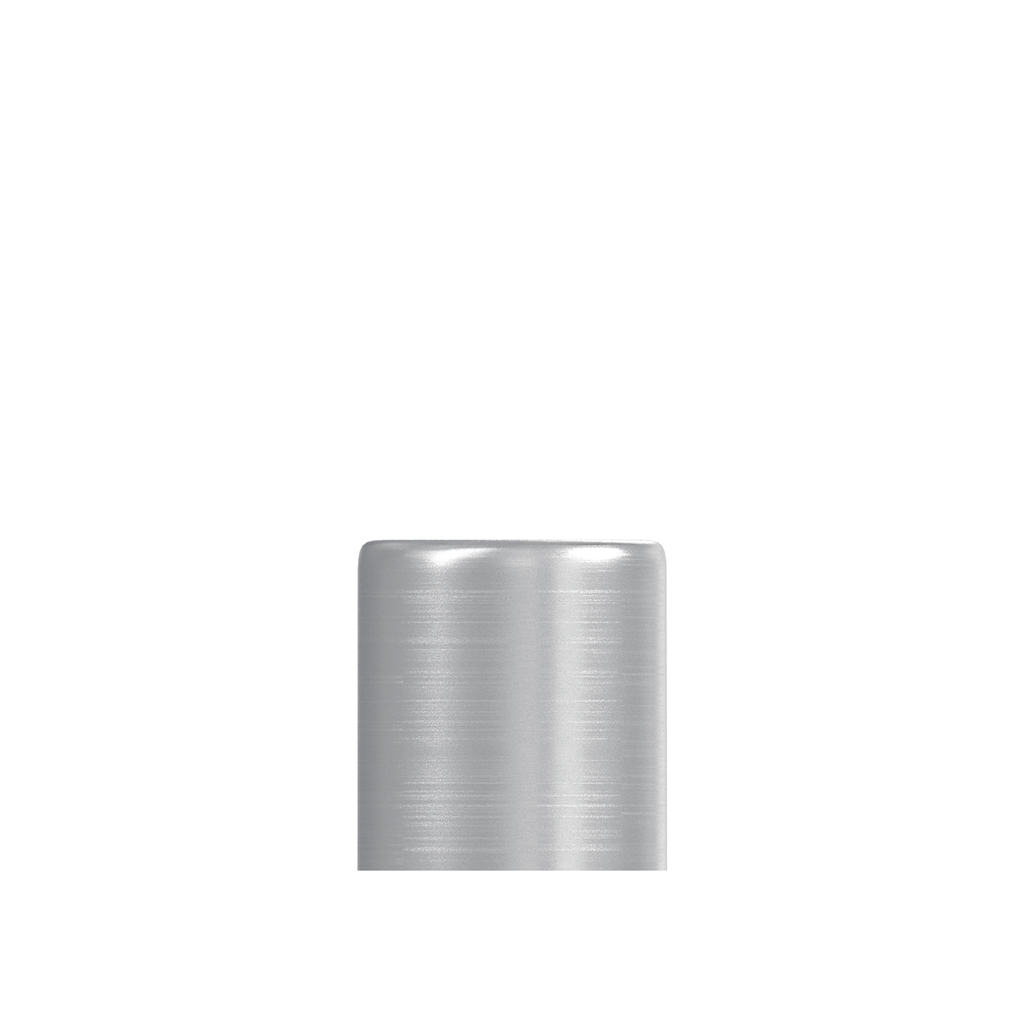

MU-S-HC: Healing Cap Ø 4.9mm , L=2.35mm, H=5.0mm x 1

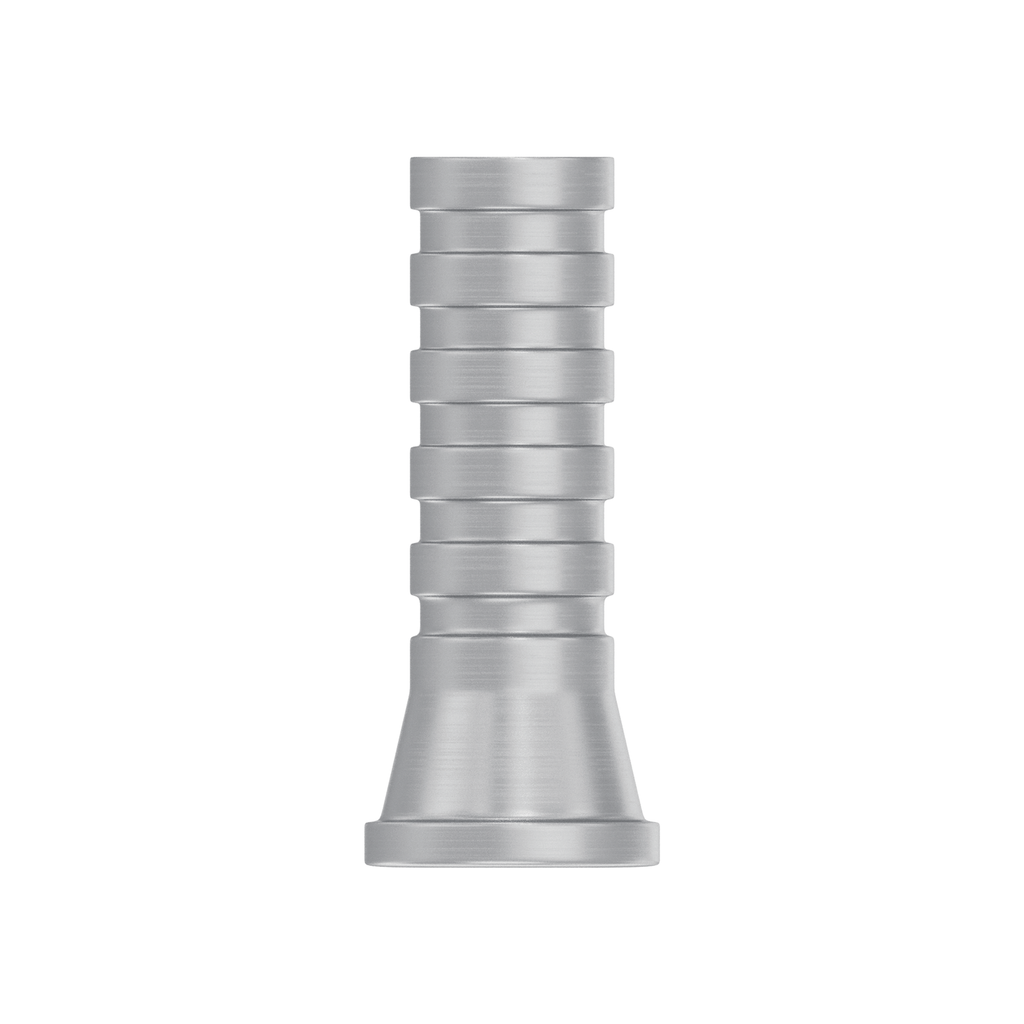

MU-S-TS: Titanium Sleeve Abutment Ø 5.0mm , L=9.0mm, H=12.0mm x 1

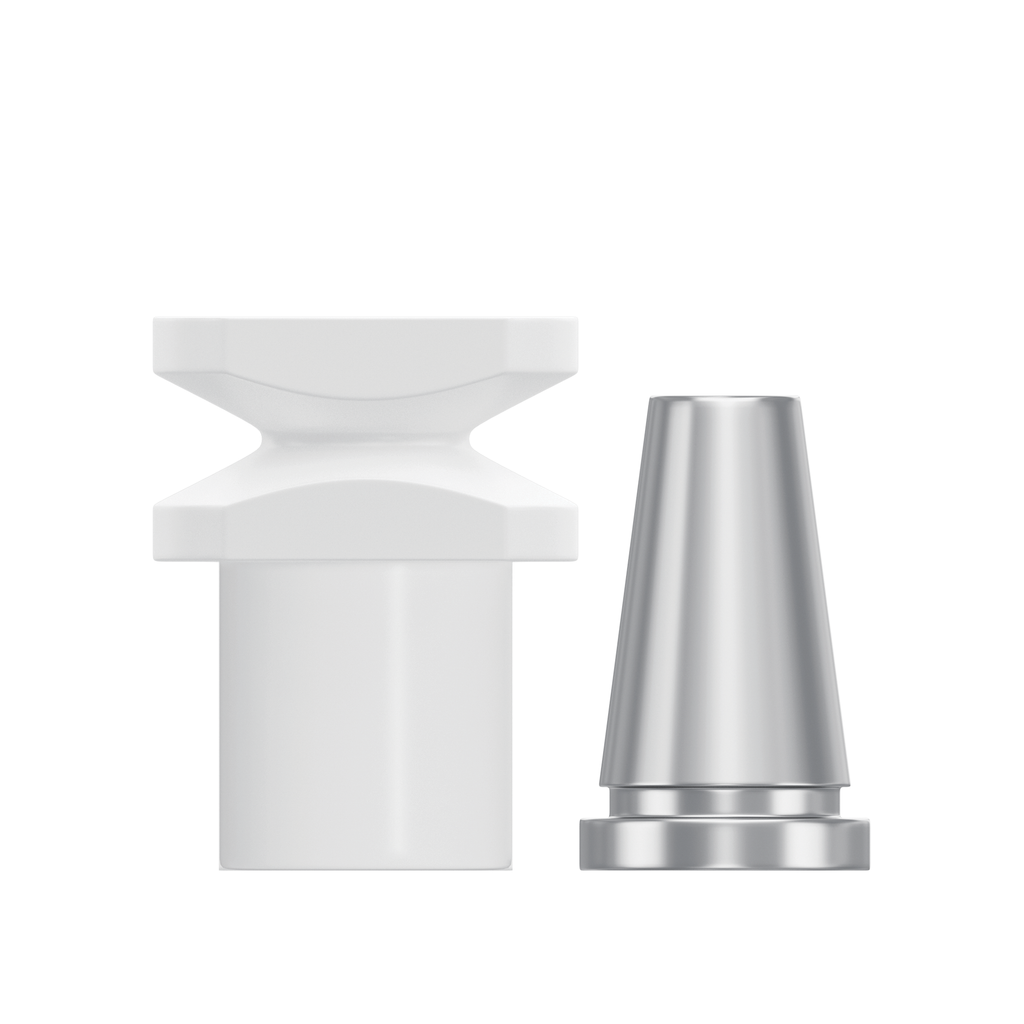

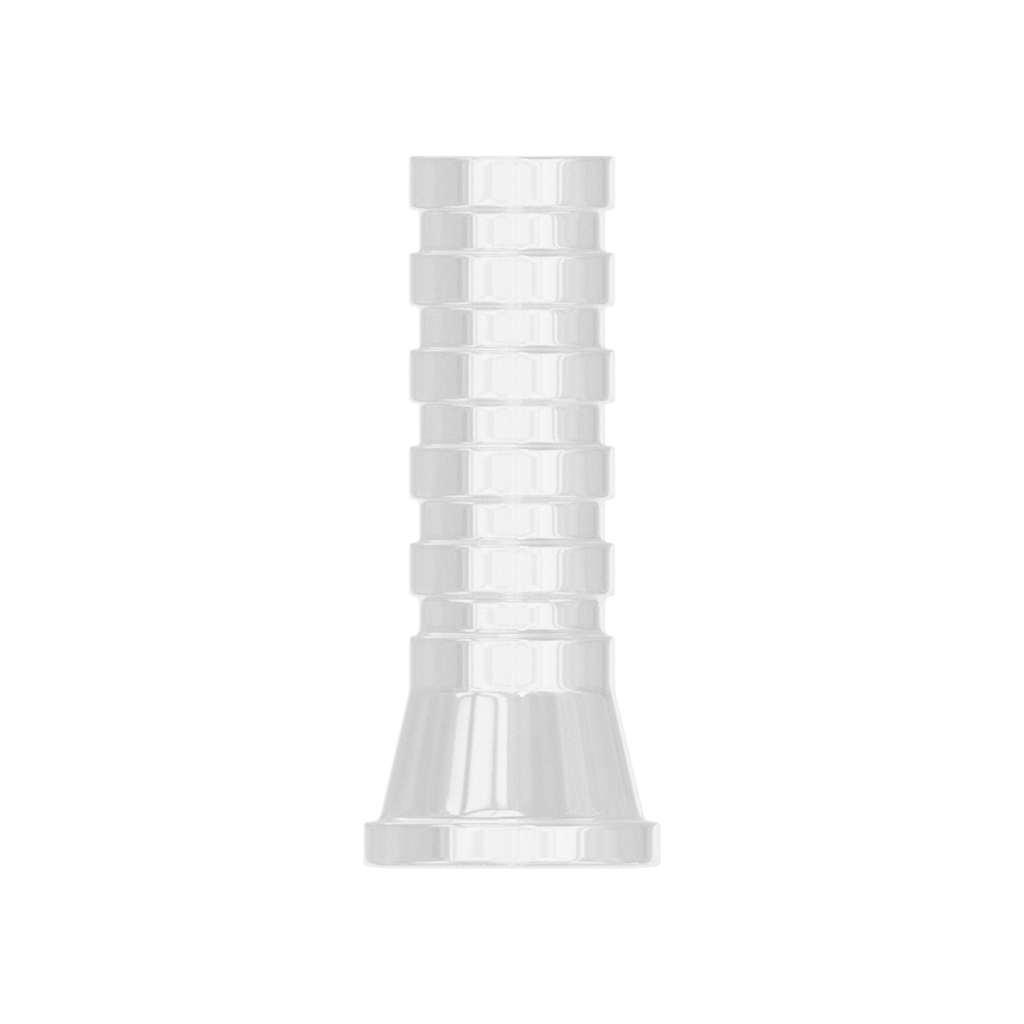

MU-S-SP: Castable Sleeve Abutment(for Lab) Ø 5.0mm , L=9.0mm, H=12.0mm x 1

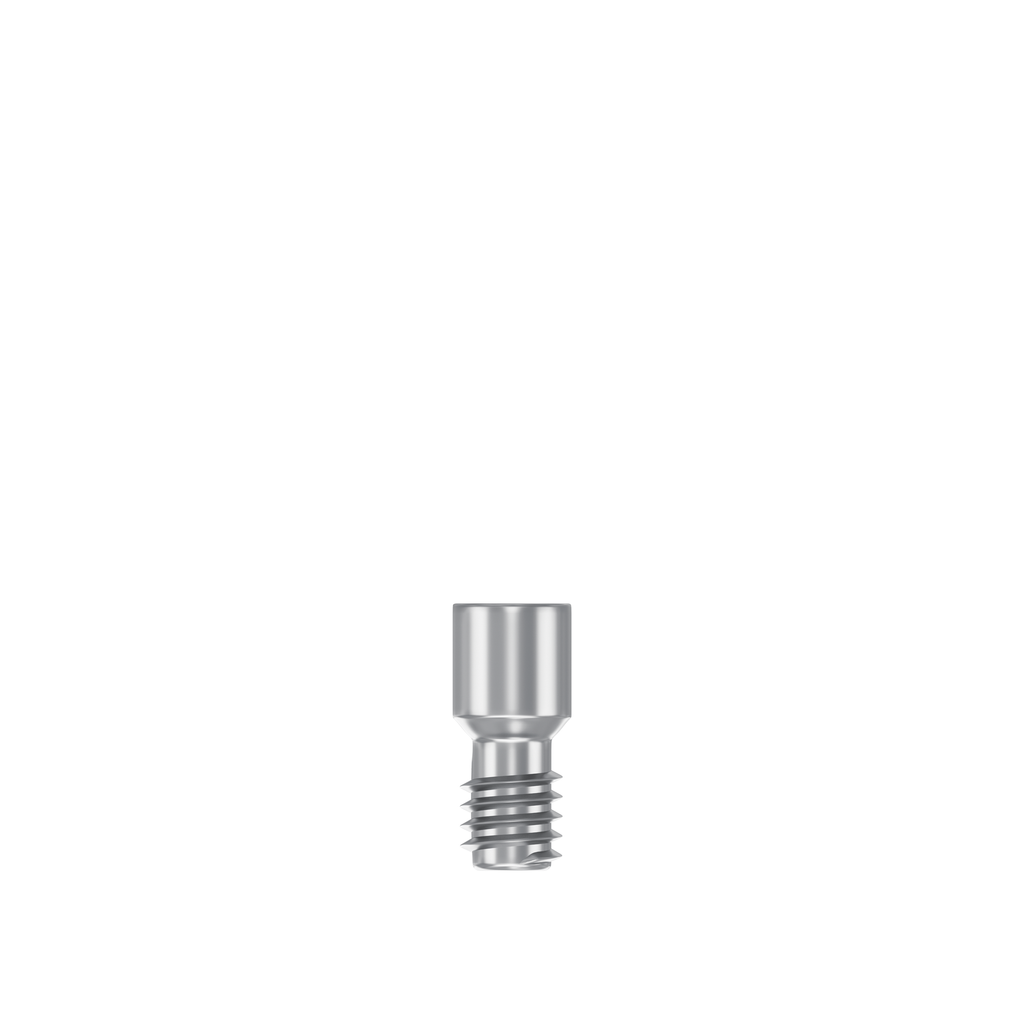

MU-S-FX: Fixation Short Screws Ø 1.72mm , L=2.5mm, H=5.0mm x 2

DSI Next-Gen multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case. DSI Next-gen Multi-Unit abutment is one of the only systems that allows torquing the restoration to 30 Ncm, including angulated versions. This ensures the stability of the restoration.

Best-in-class digital library link for free download
Exocad: https://dsisrael.co/EXOCADLIB
3Shape: https://dsisrael.co/3SHAPELIB

Indications:

Multiple teeth
Complete bridges
Fabrication of long-term/permanent restorations
All-on-4,All-on-6

Features:

Excellent biocompatibility, no risk of abruption.
Precise, non-rotational, functional.
Simple, fast, and accurate positioning.
Outstanding stability for the crowns and bridges
Superior aesthetic results.

Technical information:

Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
Standard platform - regular body Ø5.0mm / collar height 1-4mm
Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
Multi Unit level Connection M1.7 Compatible with : Paltop, Surcam

Specification

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Product type","bold":true},{"type":"text","value":": Next-Gen MUA Straight Kit"}]},{"type":"paragraph","children":[{"type":"text","value":"Platform","bold":true},{"type":"text","value":": Standard platform - Internal Hex Ø2.42mm"}]},{"type":"paragraph","children":[{"type":"text","value":"Implant Level Compatible with: ","bold":true},{"type":"text","value":"DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP "}]},{"type":"paragraph","children":[{"type":"text","value":"Multi Unit level Connection M1.7 Compatible with : ","bold":true},{"type":"text","value":"Paltop, Surcam "}]},{"type":"paragraph","children":[{"type":"text","value":"Material: ","bold":true}]},{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"Titanium Ti-6Al-4V-ELI"}]},{"type":"list-item","children":[{"type":"text","value":"Stainless Steel Grade 316"}]},{"type":"list-item","children":[{"type":"text","value":"Delrin"}]}]},{"type":"paragraph","children":[{"type":"text","value":""}]},{"type":"paragraph","children":[{"type":"text","value":"Indications: ","bold":true}]},{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"Multiple teeth"}]},{"type":"list-item","children":[{"type":"text","value":"Complete bridges"}]},{"type":"list-item","children":[{"type":"text","value":"Fabrication of long-term/permanent restorations"}]},{"type":"list-item","children":[{"type":"text","value":"All-on-4,All-on-6 "}]}]},{"type":"paragraph","children":[{"type":"text","value":"Country of origin: ","bold":true},{"type":"text","value":"Israel"}]}]}

Material:

["Titanium alloy Ti-6Al-4V grade 23 ELI","Acetal (Delrin®)"]

Package contents:

["1 Straight MUA + Accessories (see description)"]

Platform:

Internal Hex Ø2.42mm
