DIP Premium Angulated Multi Unit Abutment (M1.6) 5.0mm Full Set - Internal Hex Ø2.42mm

SKU: PMU-A17-RP-10

Quick Buy

  • Collar Height / Angle
  • 1.0mm
  • 2.0mm
  • 3.0mm
  • 17°
  • 30°
  • 45°
Add To Wishlist

We deliver to more than 120 countries worldwide.In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping Type Shipping Cost Estimated Delivery Eligibility
DHL Express Worldwide $45.00 2-4 Days All orders
DHL Free Express Worldwide Free 2-4 Days Orders $399.00 and up
International Israel Post $15.00 7-21 Days All orders
International Israel Post (Free) Free 7-21 Days Orders $120.00 and up

Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

We deliver to more than 120 countries worldwide.In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping Type Shipping Cost Estimated Delivery Eligibility
DHL Express Worldwide $45.00 2-4 Days All orders
DHL Free Express Worldwide Free 2-4 Days Orders $399.00 and up
International Israel Post $15.00 7-21 Days All orders
International Israel Post (Free) Free 7-21 Days Orders $120.00 and up

Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

Description

The DSI Premium Angulated Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.

DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals‍

  • DSI Premium multi-unit Time-proven design Allows, work with different implants (regular hexagonal, narrow, conical) without changing the restoration at the multi-unit level

DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

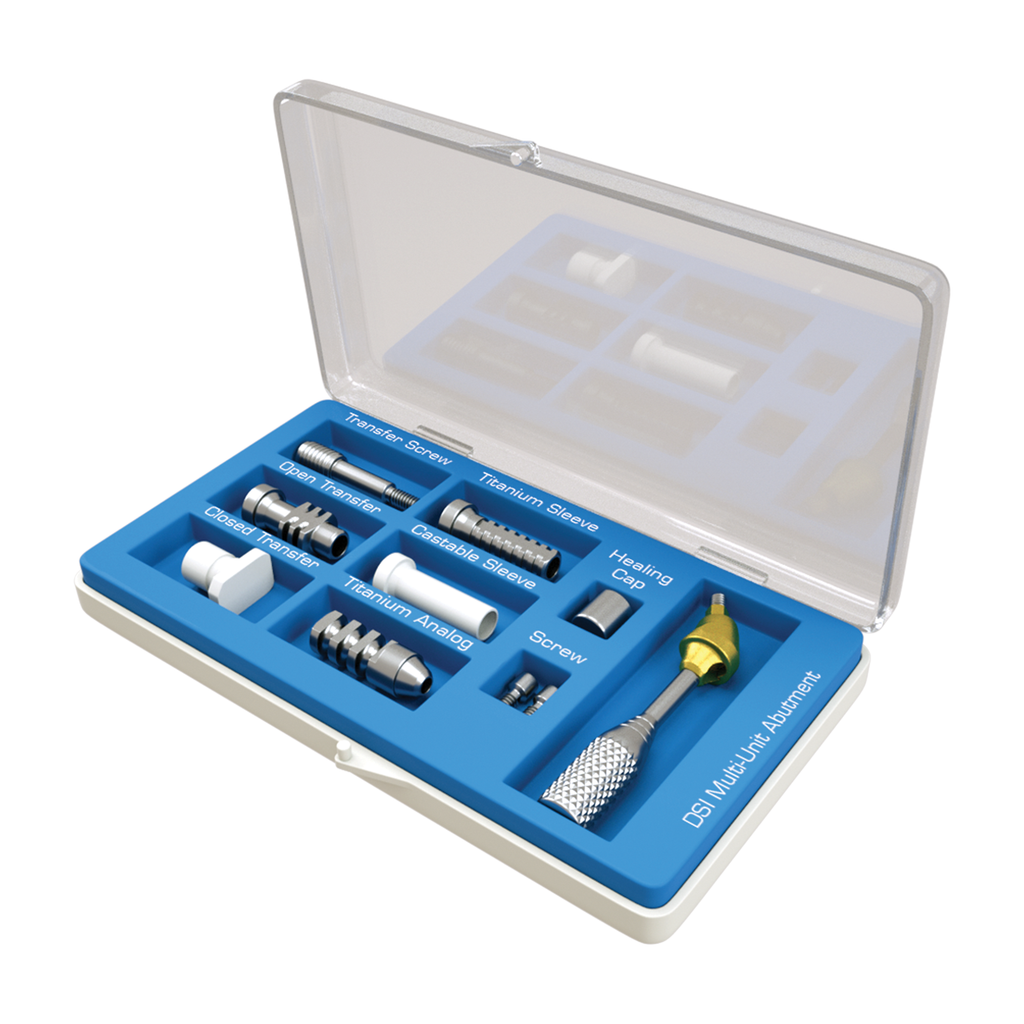

The most commonly used and versatile is the Full Set, which includes

One abutment of the chosen size:

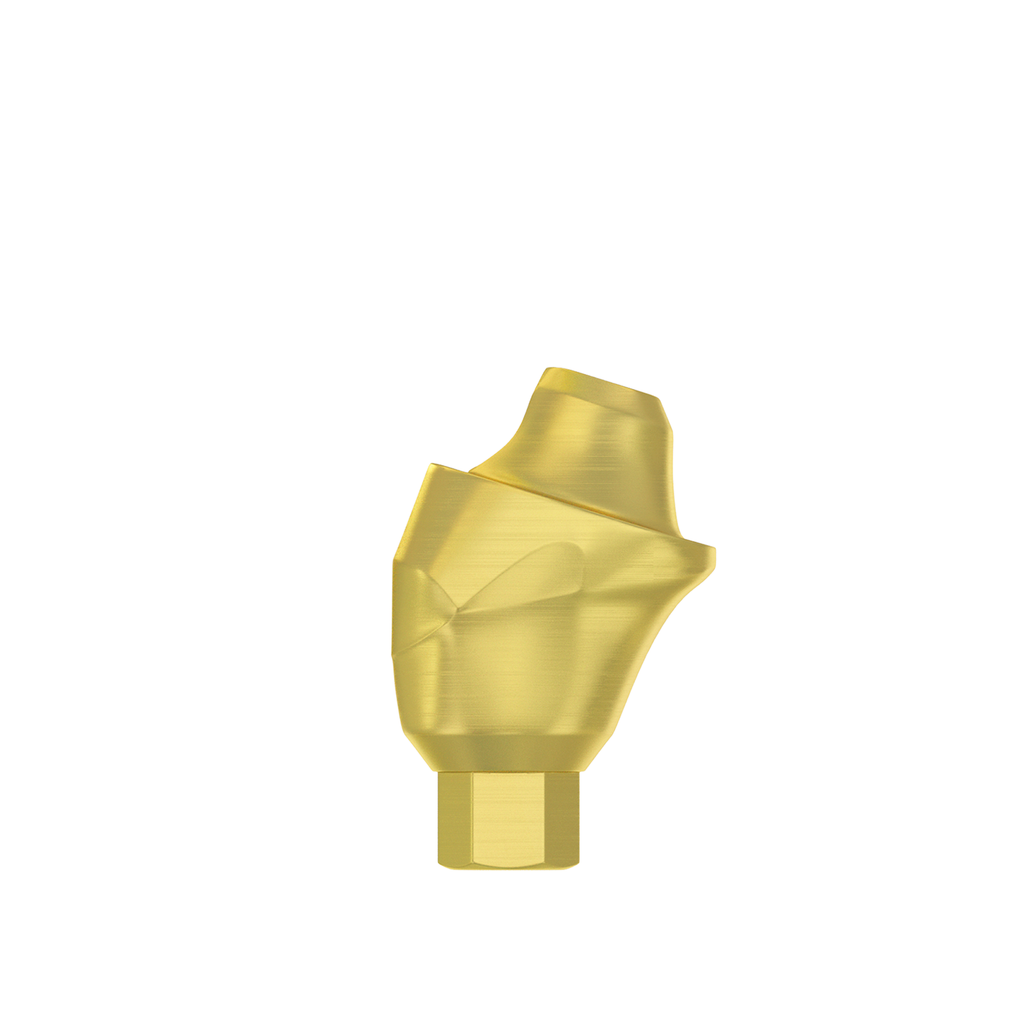

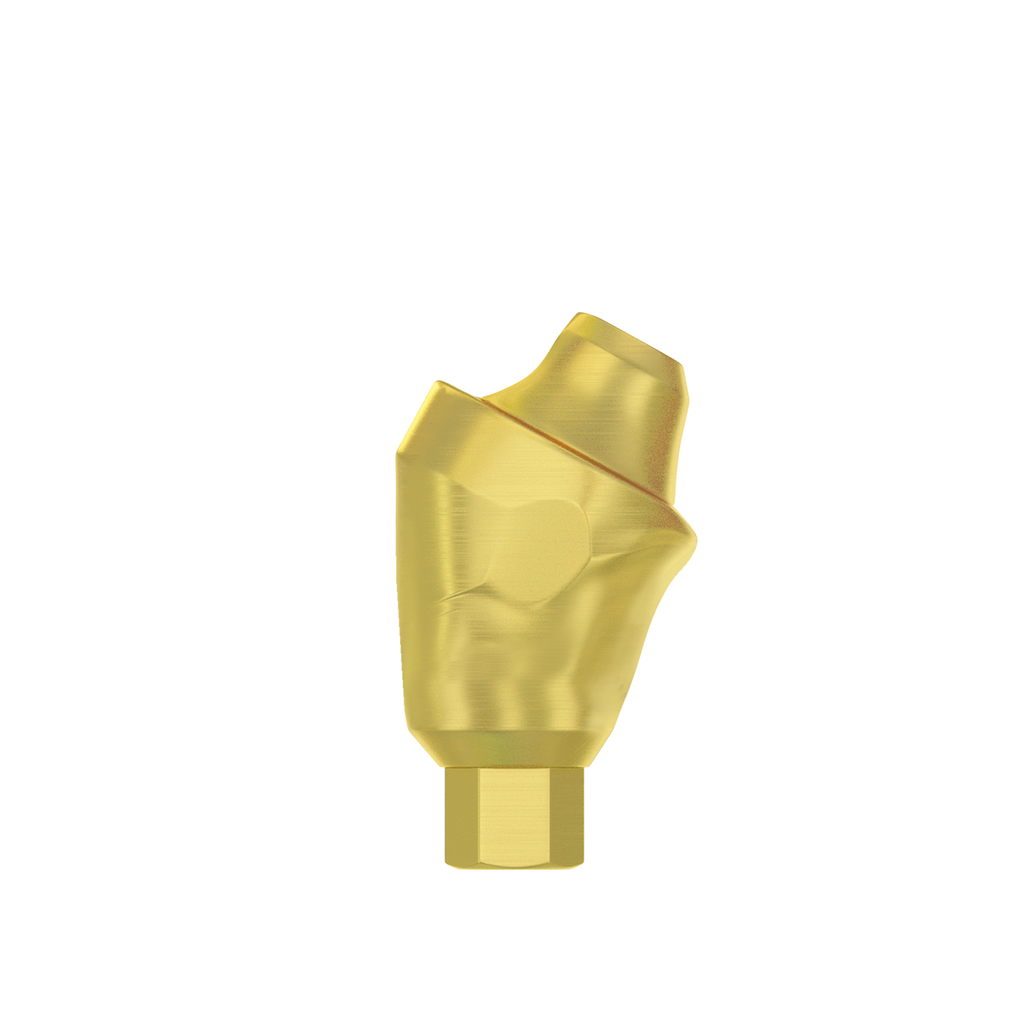

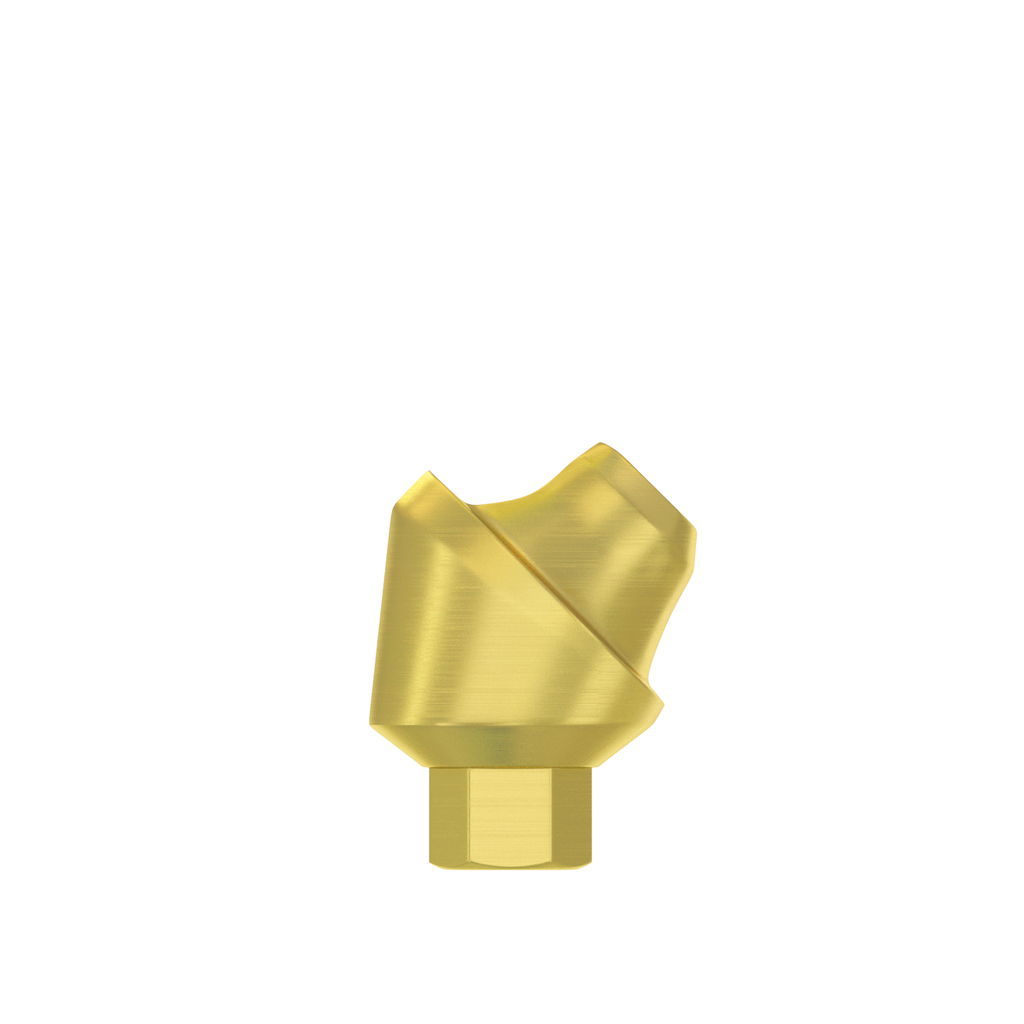

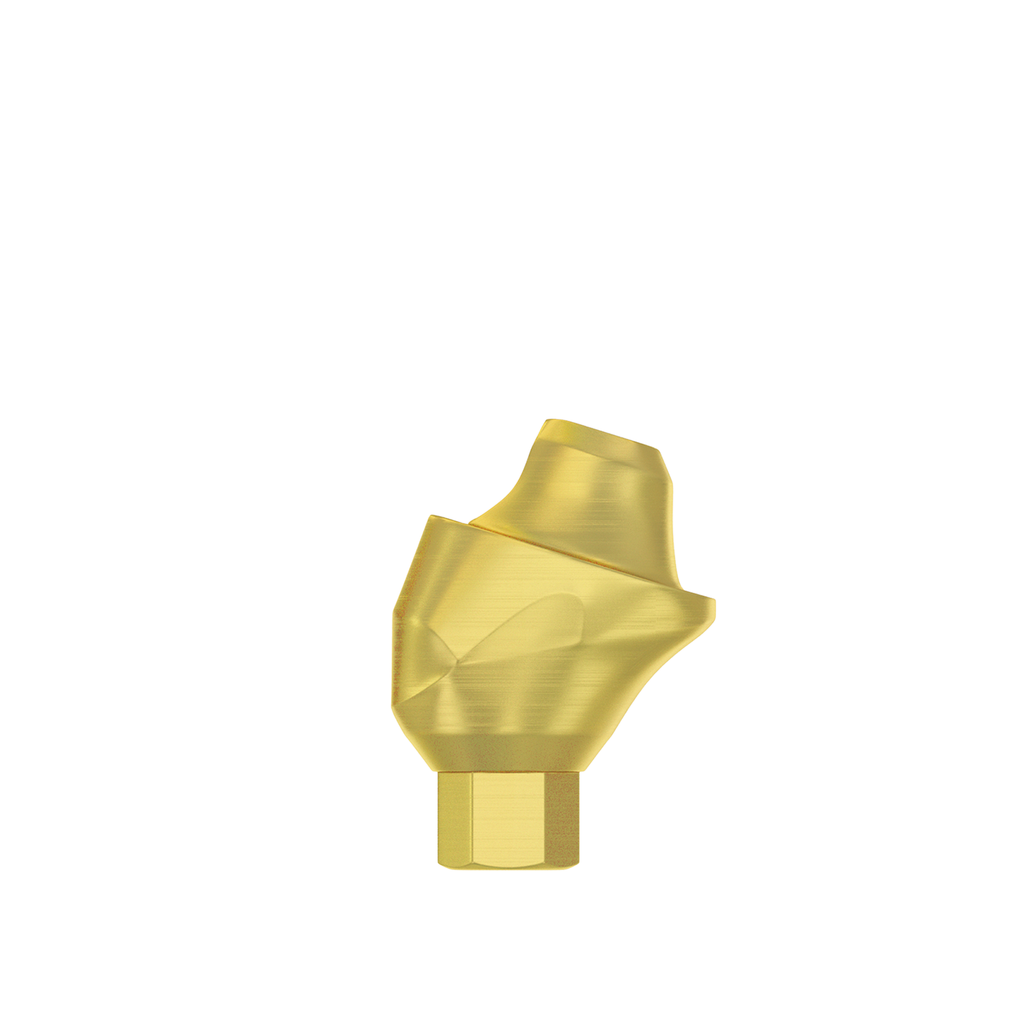

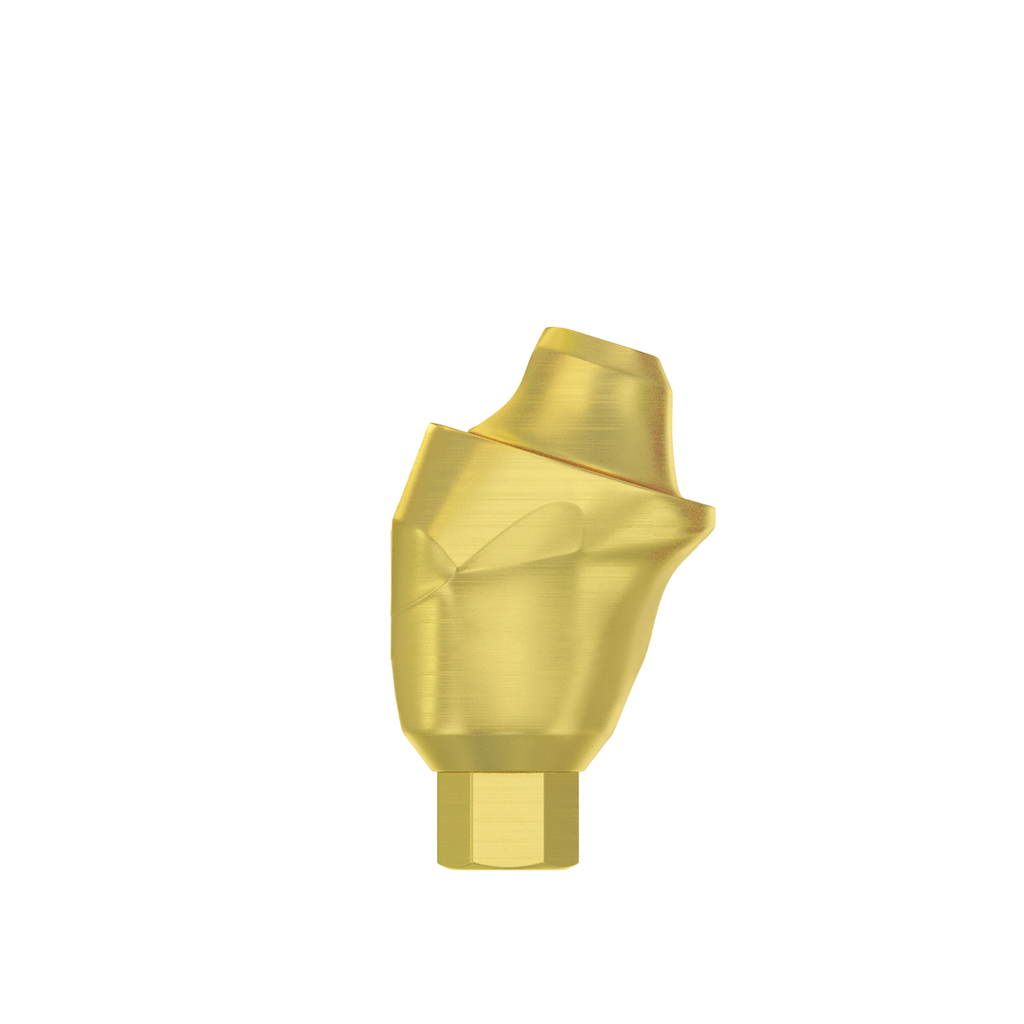

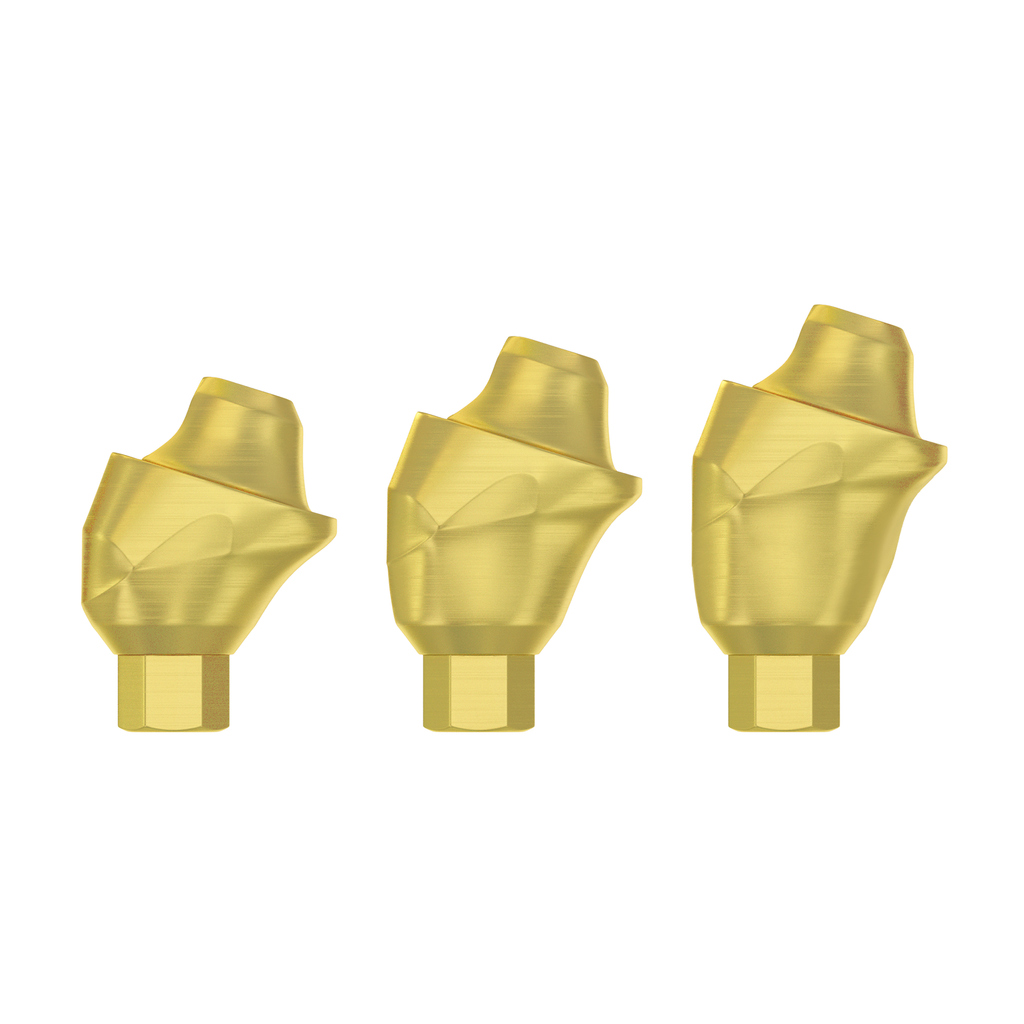

  1. MU-A17-RP-10, MU-A17-RP-20 , MU-A17-RP-30 , MU-A30-RP-10, MU-A30-RP-10, MU-A30-RP-30, MU-A45-RP-10: Angulated Multi Unit Abutment Ø4.8mm ,1.0-3.0mm x1

And the following parts:

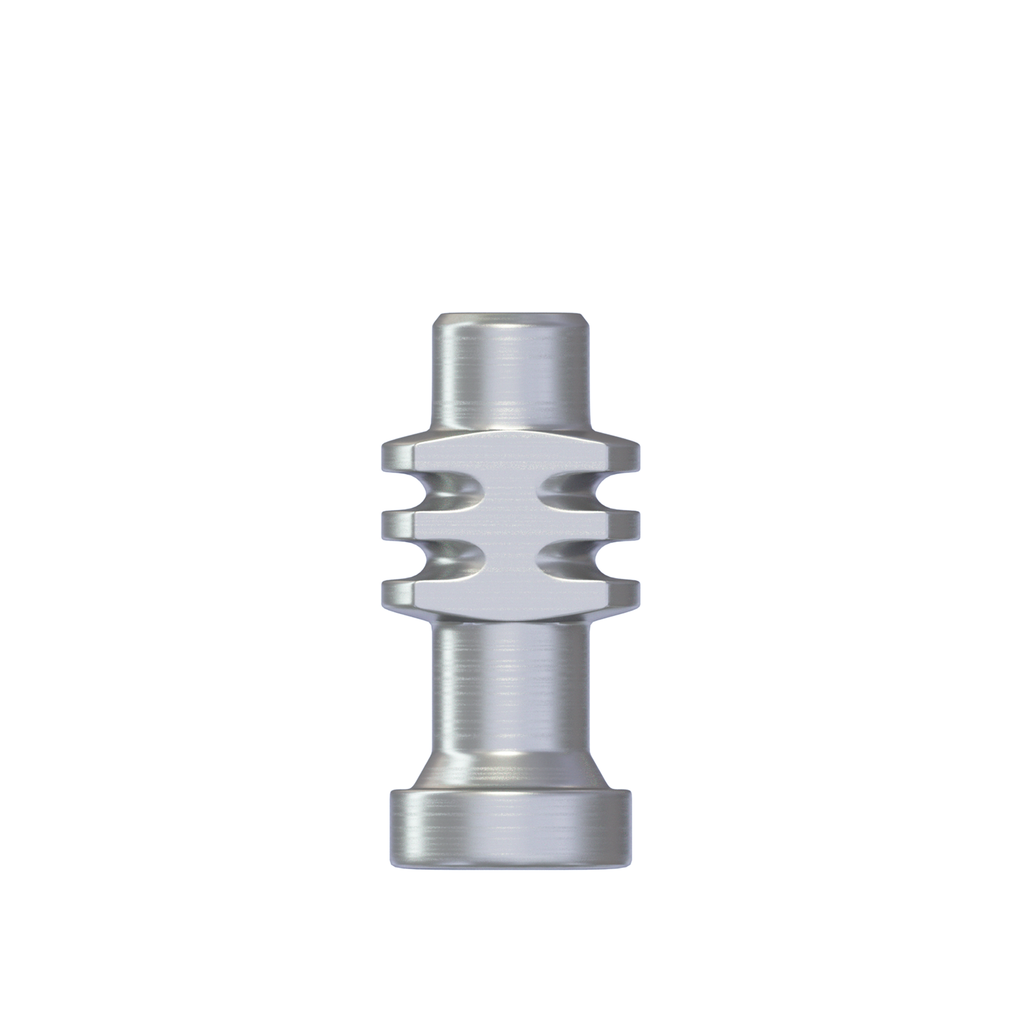

  1. STFMU-K: Open Tray Transfer Ø 4.8mm , L=8.5mm, H=10.7mm x 1

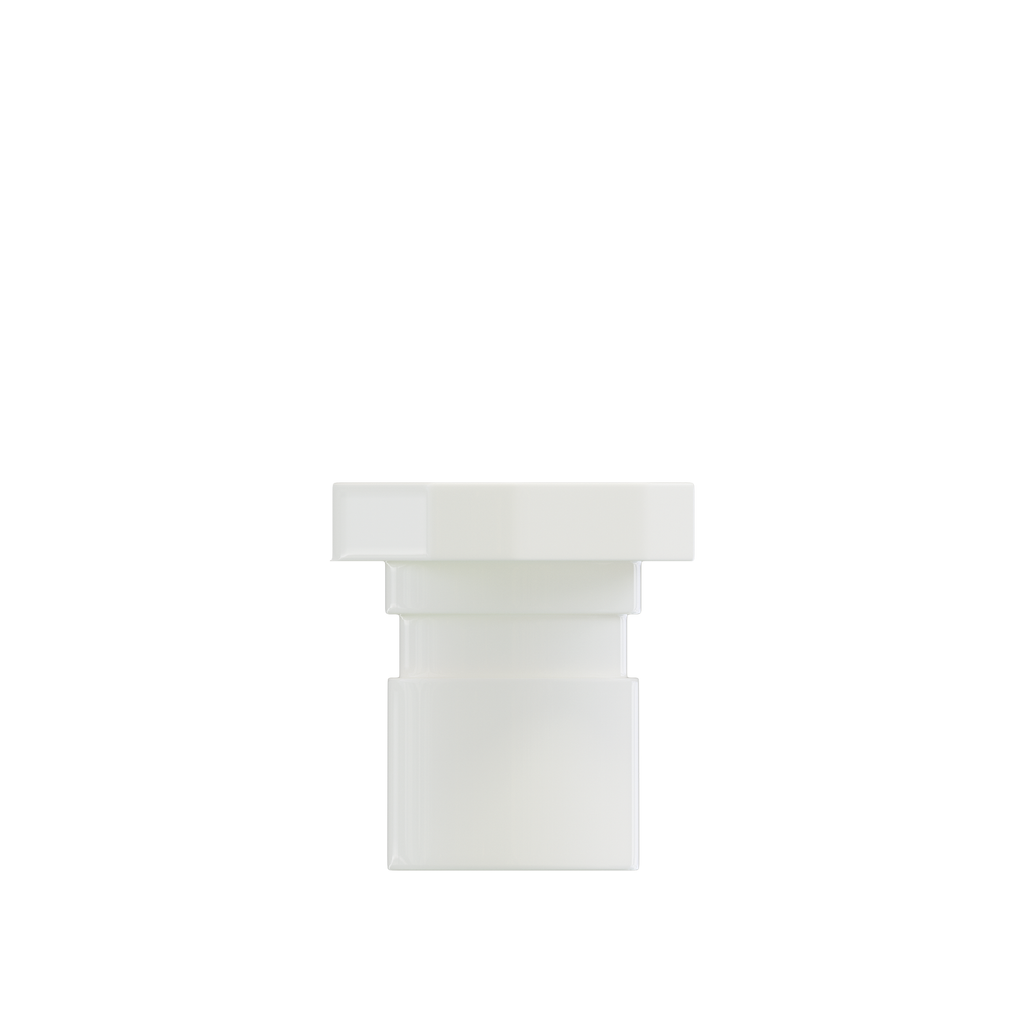

  2. STFMU-KC: Snap-On Closed Transfer Ø 4.75mm , L=5.0mm, H=7.2mm x 1

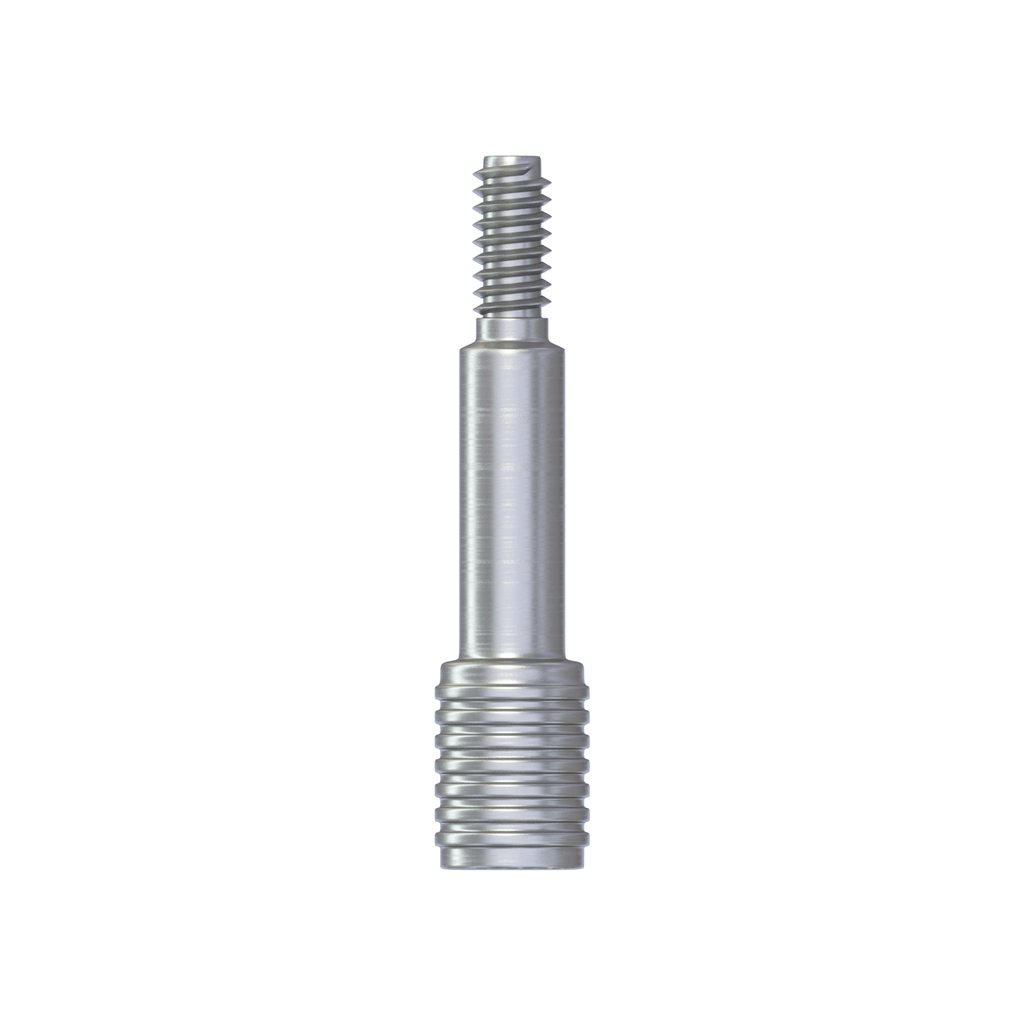

  3. SSFTMU-K: Premium Transfer Screw Ø 2.0mm , L=11.0mm, H=14.5mm x 1

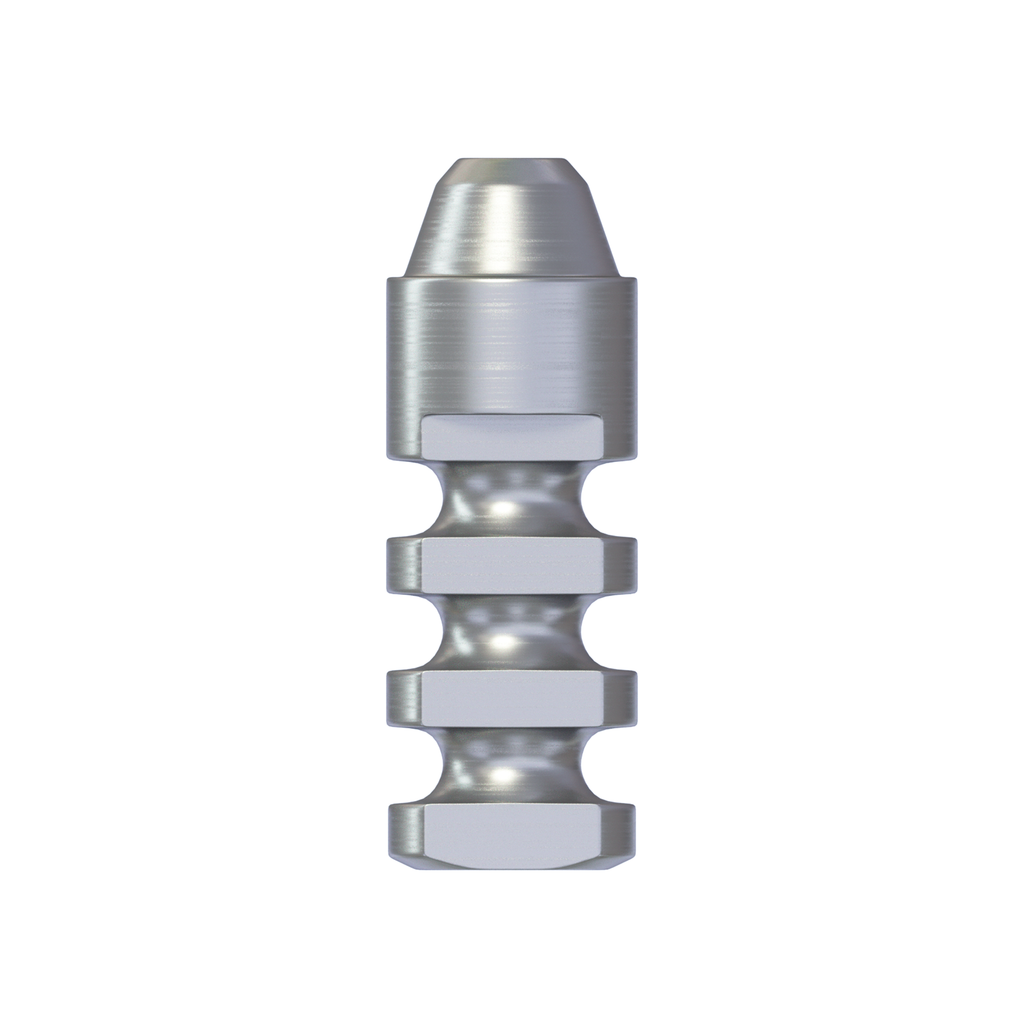

  4. SAFMU-K: Titanium Analog Ø 4.8mm , L=7.0mm, H=13.5mm x 1

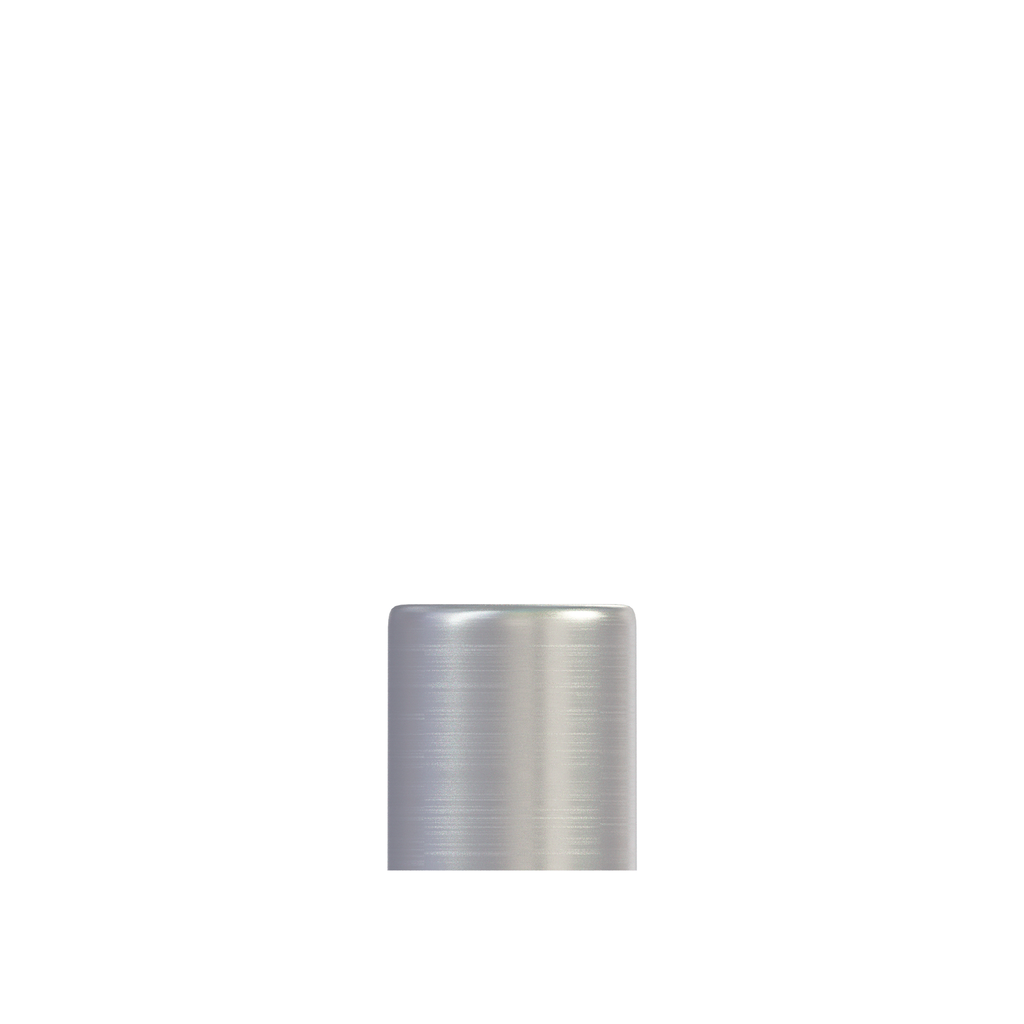

  5. SHCFMU-K: Healing Cap Ø 4.9mm , L=2.35mm, H=5.0mm x 1

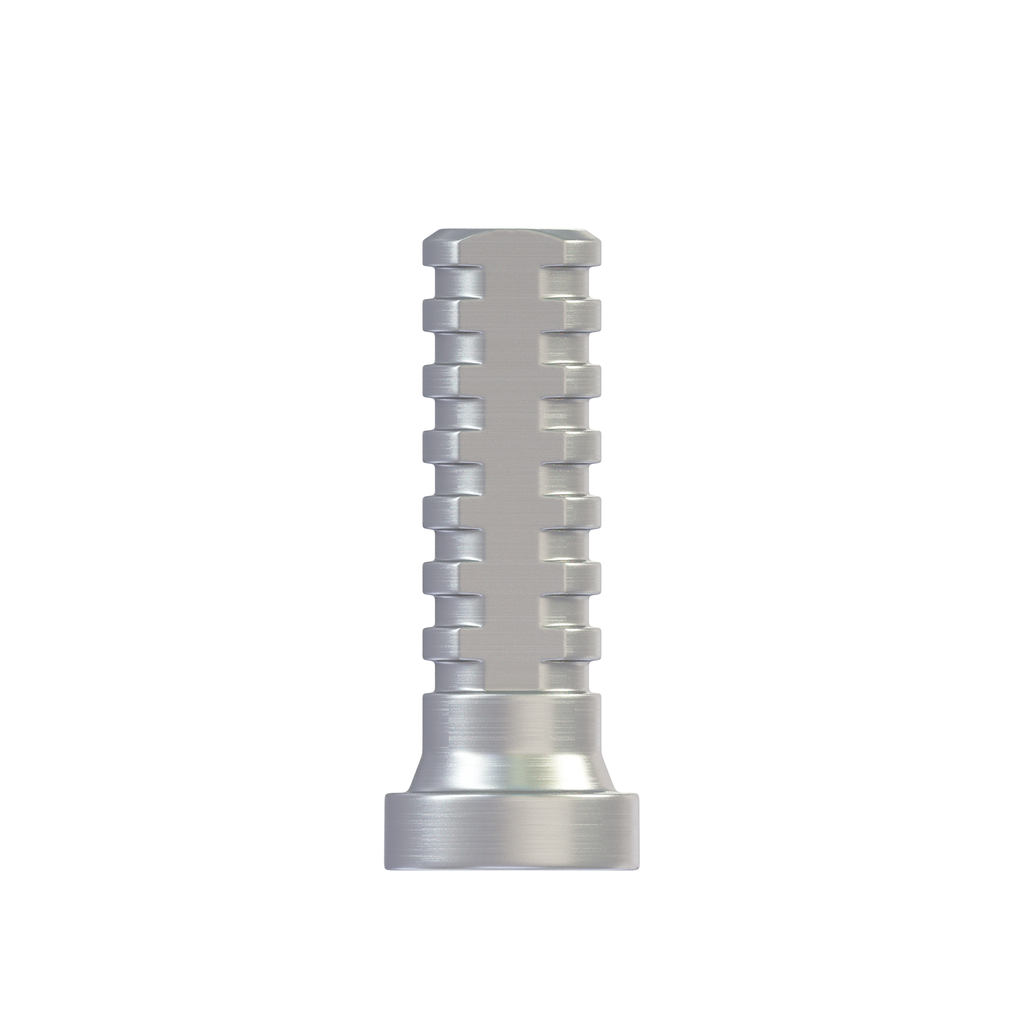

  6. SSTFMU-K: Titanium Sleeve Abutment Ø 4.8mm , L=10.0mm, H=12.0mm x 1

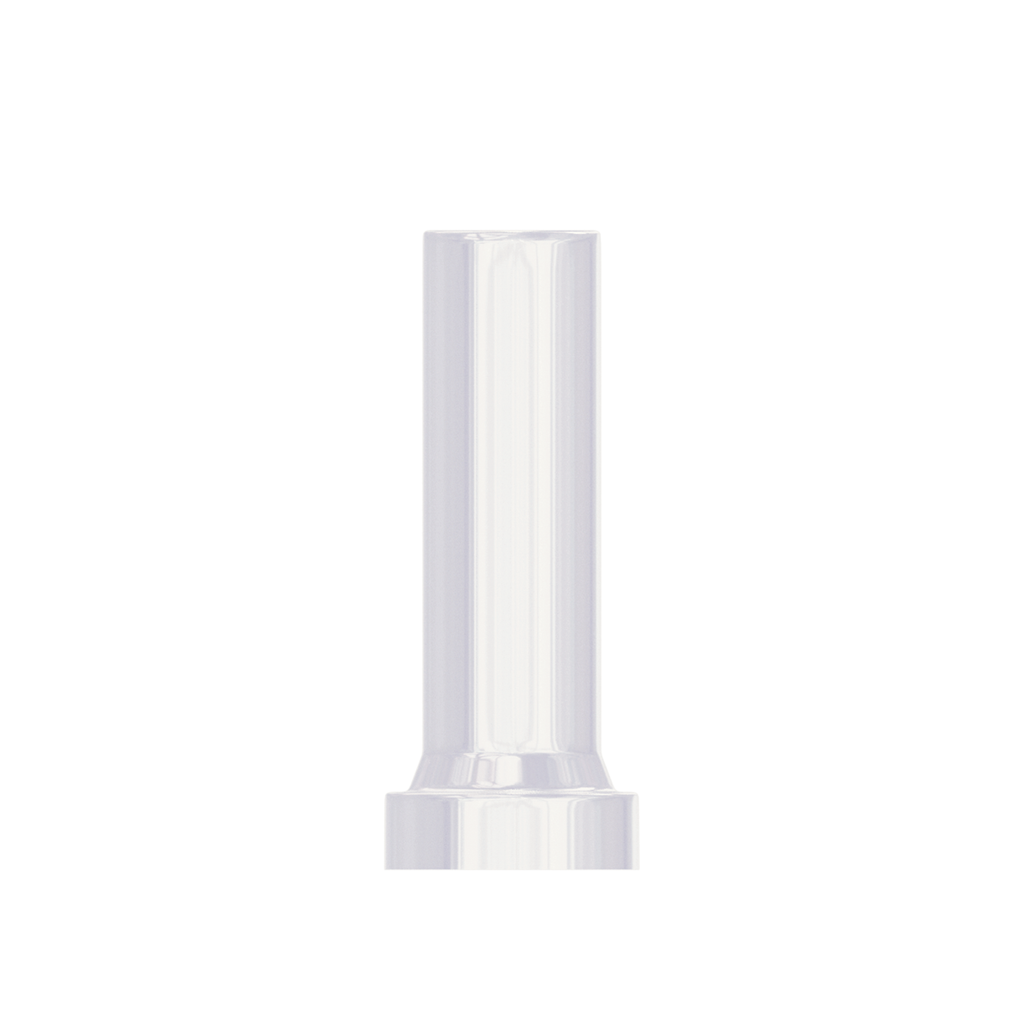

  7. SSPFMU-K: Castable Sleeve Abutment(for Lab) Ø 4.8mm , L=10.0mm, H=12.0mm x 1

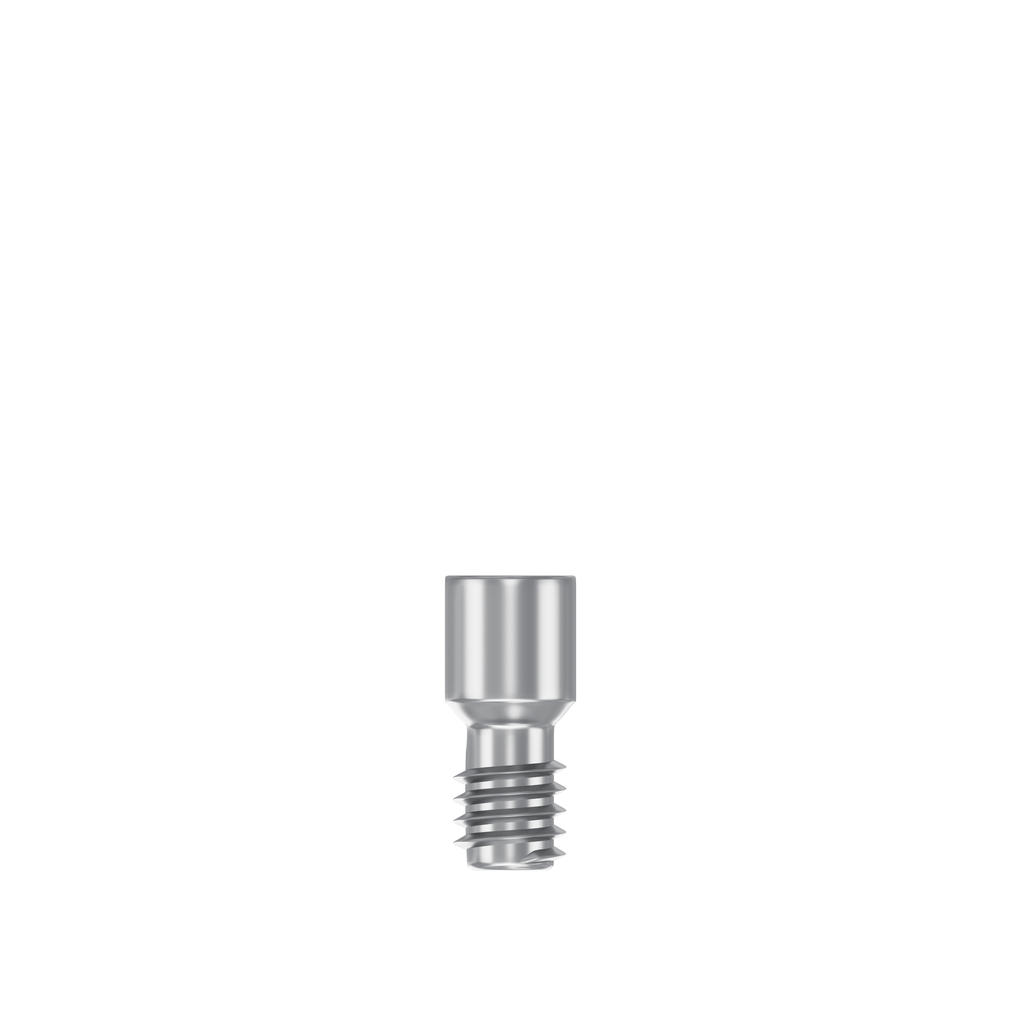

  8. SSFMU-K: Fixation Short Screws Ø 2.0mm , L=2.6mm, H=3.9mm x 2

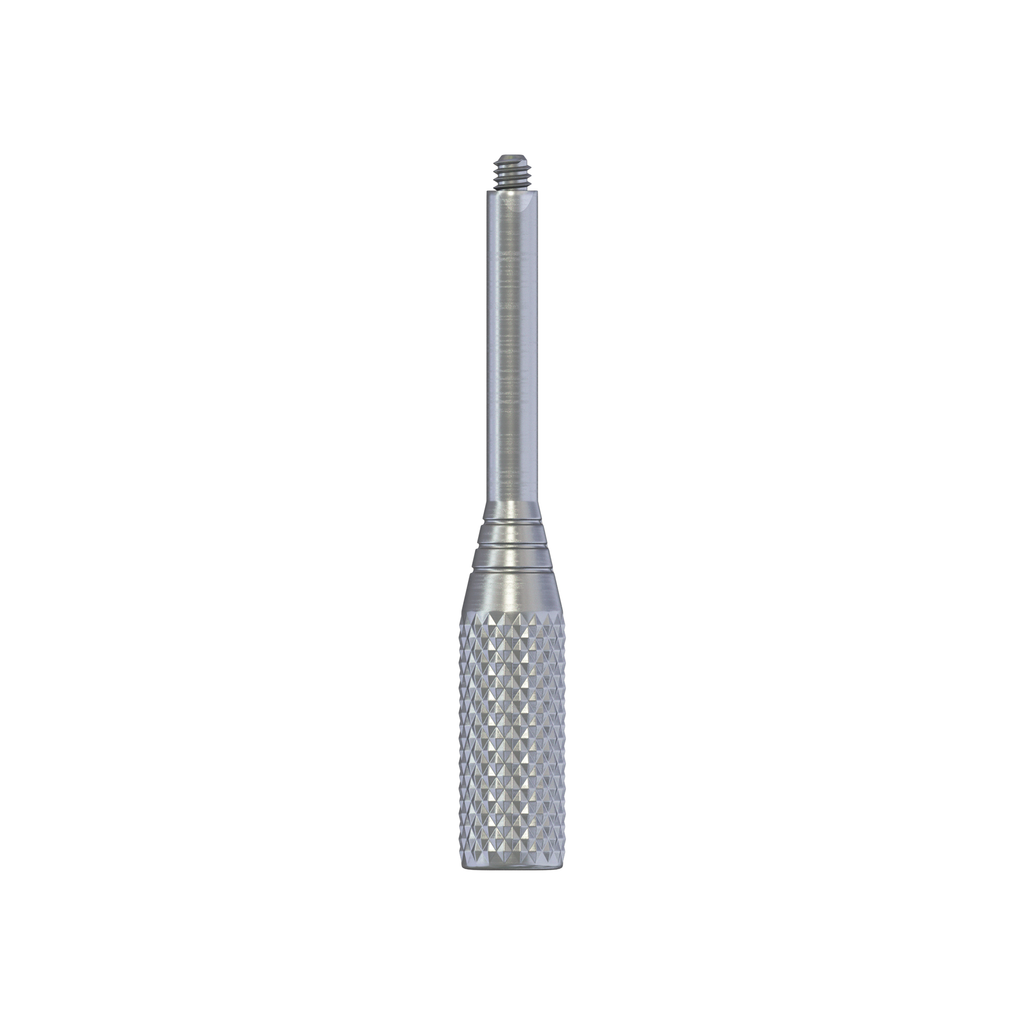

  9. MUD-M1.6: Metal Position Holder Ø 1.6mm , L=12.2mm, H=25.2mm x 1

Indications:

  • Multiple teeth
  • Complete bridges
  • Fabrication of long-term/permanent restorations
  • All-on-4,All-on-6
  • For non-parallel implant alignment cases

Features:

  • Excellent biocompatibility, no risk of abruption.
  • Precise, non-rotational, functional.
  • Simple, fast, and accurate positioning.
  • Outstanding stability for the crowns and bridges
  • Superior aesthetic results.

Technical information:

  • Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
  • Regular platform - Ø5.0mm / collar height 1.0-3.0mm
  • Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
  • Multi Unit level Connection M1.6 Compatible with : DSI®, MIS®,
  • 17° Degrees
  • 30° Degrees
  • 45° Degrees

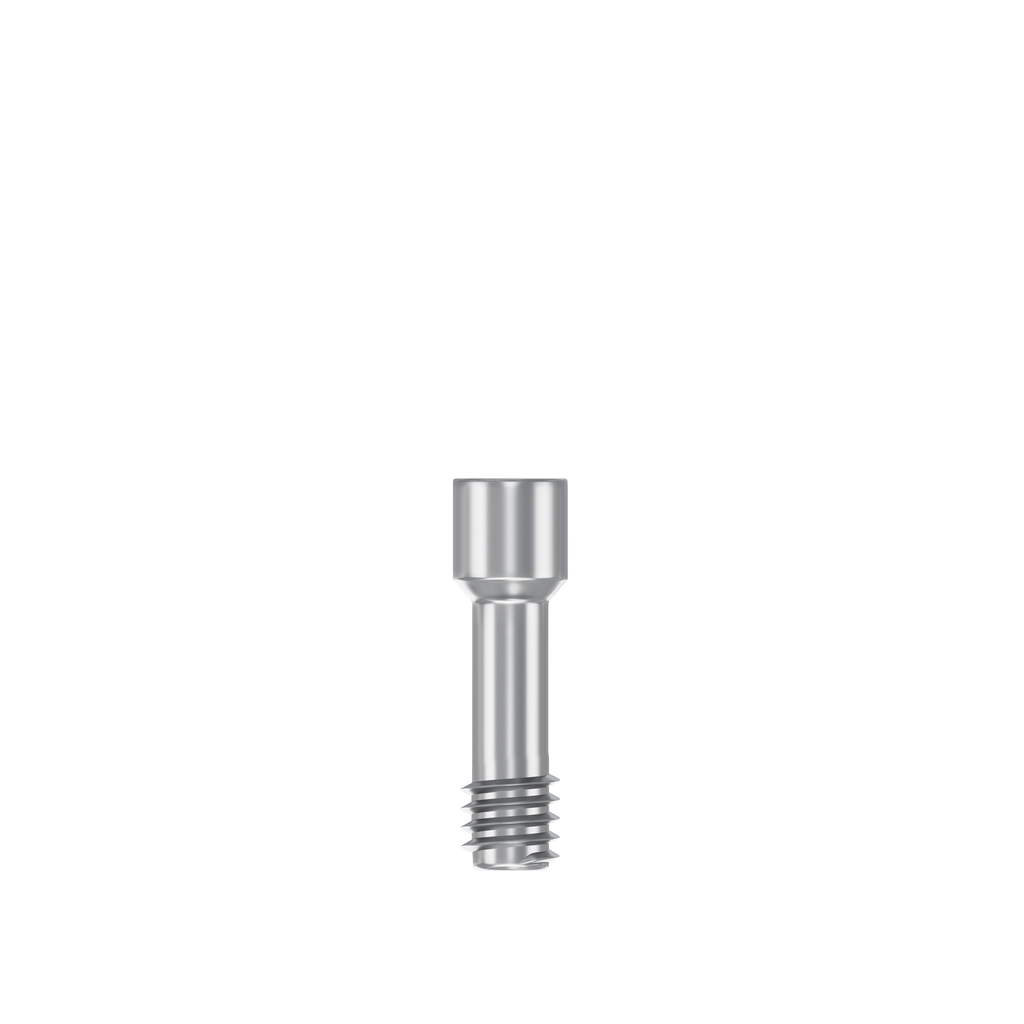

  • Titanium fixation screw included with every abutment

Material:
  • ["Titanium alloy Ti-6Al-4V grade 23 ELI","Acetal (Delrin®)"]
Package contents:
  • ["1 Angulated MUA + Accessories (see description)"]
Platform:

Internal Hex Ø2.42mm
