DIP Premium Angulated Multi Unit Abutment (M1.4) 4.9mm Full Set - Internal Hex Ø2.42mm

SKU: PMUA-NO-1720

Quick Buy

  • Angle / Collar Height
  • 17°
  • 30°
  • 45°
  • 52°
  • 60°
  • 2.0mm
  • 3.0mm
  • 4.0mm
  • 5.0mm
Add To Wishlist

We deliver to more than 120 countries worldwide.In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping Type Shipping Cost Estimated Delivery Eligibility
DHL Express Worldwide $45.00 2-4 Days All orders
DHL Free Express Worldwide Free 2-4 Days Orders $399.00 and up
International Israel Post $15.00 7-21 Days All orders
International Israel Post (Free) Free 7-21 Days Orders $120.00 and up

Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

We deliver to more than 120 countries worldwide.In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping Type Shipping Cost Estimated Delivery Eligibility
DHL Express Worldwide $45.00 2-4 Days All orders
DHL Free Express Worldwide Free 2-4 Days Orders $399.00 and up
International Israel Post $15.00 7-21 Days All orders
International Israel Post (Free) Free 7-21 Days Orders $120.00 and up

Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

Description

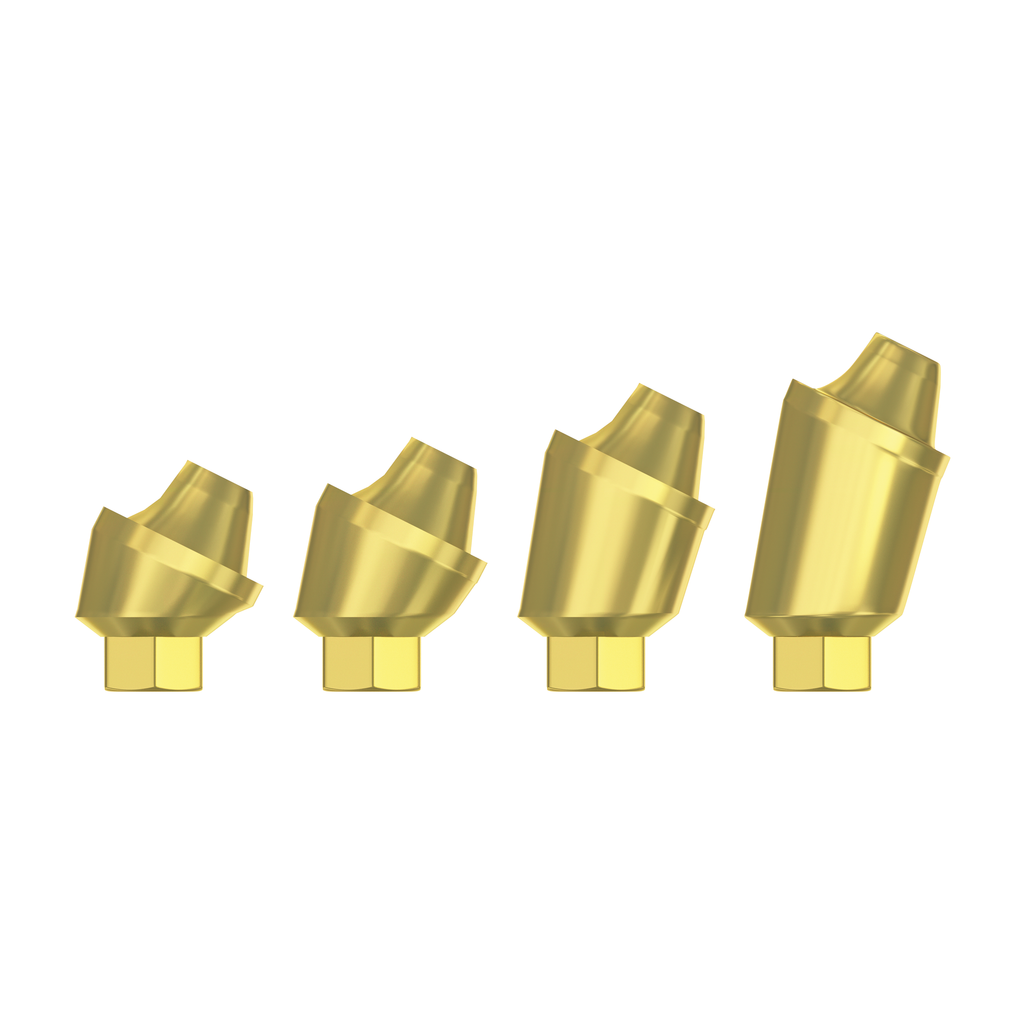

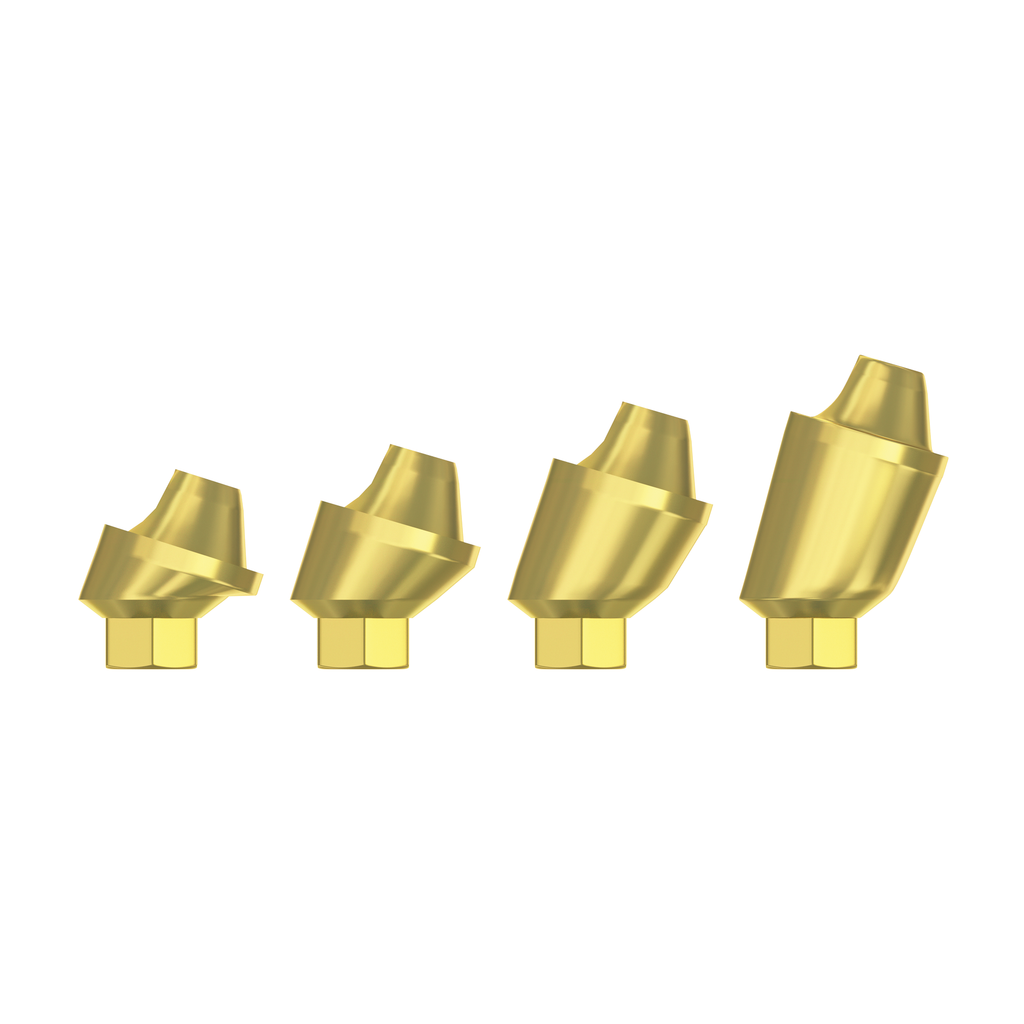

The DSI Angulated Premium Multi-Unit Abutments 1.4M come with an angle selection of up to 60° which allows overcoming implant divergence for up to 120° in all directions for perfect parallel alignment. They are suitable for all kind of restorations from a single tooth to full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.

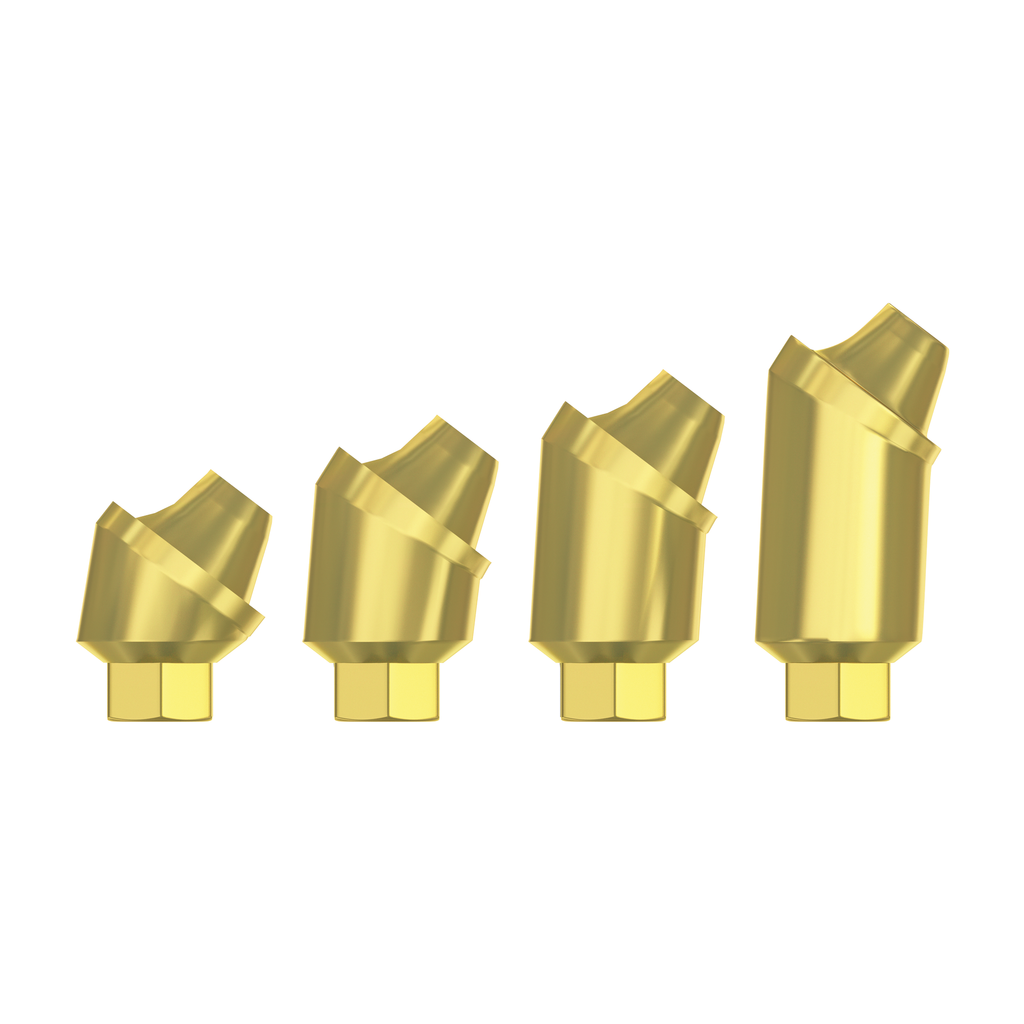

  • Higher angulations (45°+) are developed for basal and zygomatic bone-anchored implant restorations


DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals‍

DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

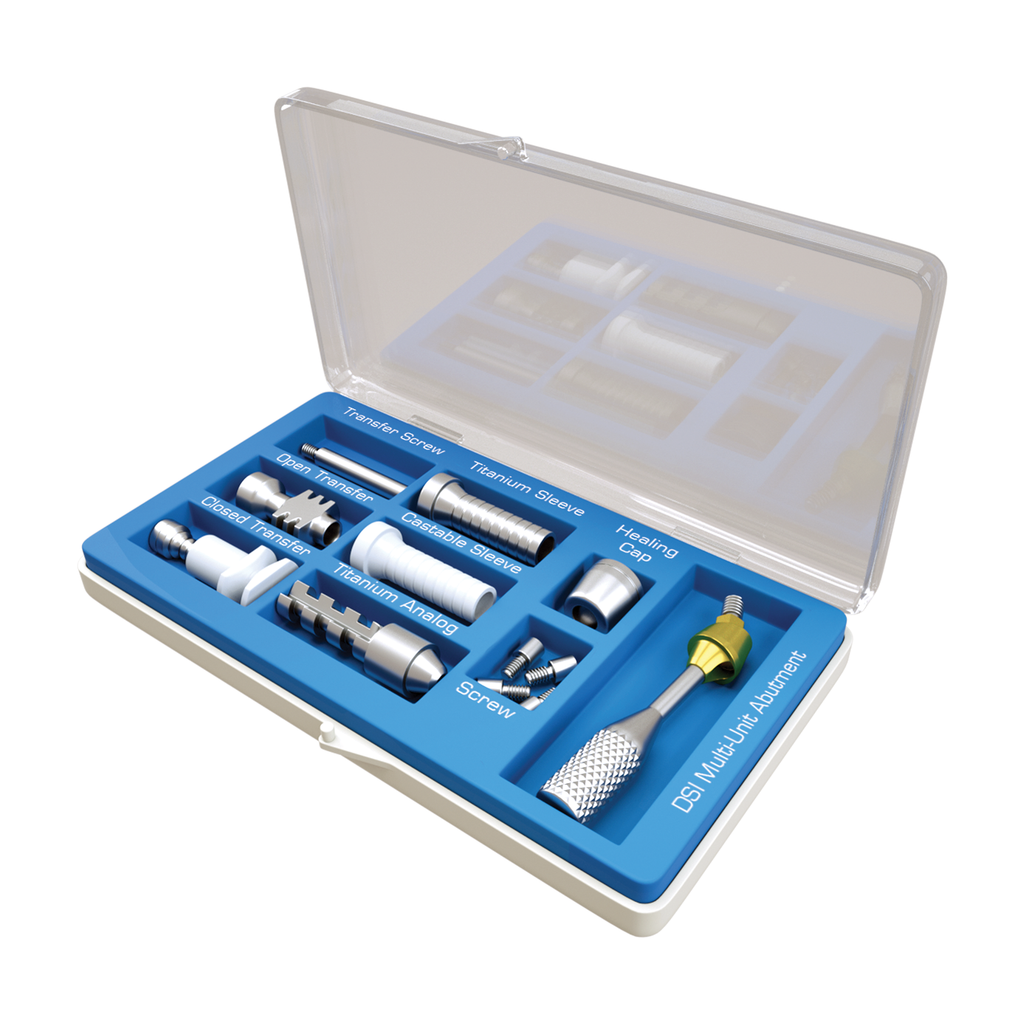

The most commonly used and versatile is the Full Set, which includes

One abutment of the chosen size:

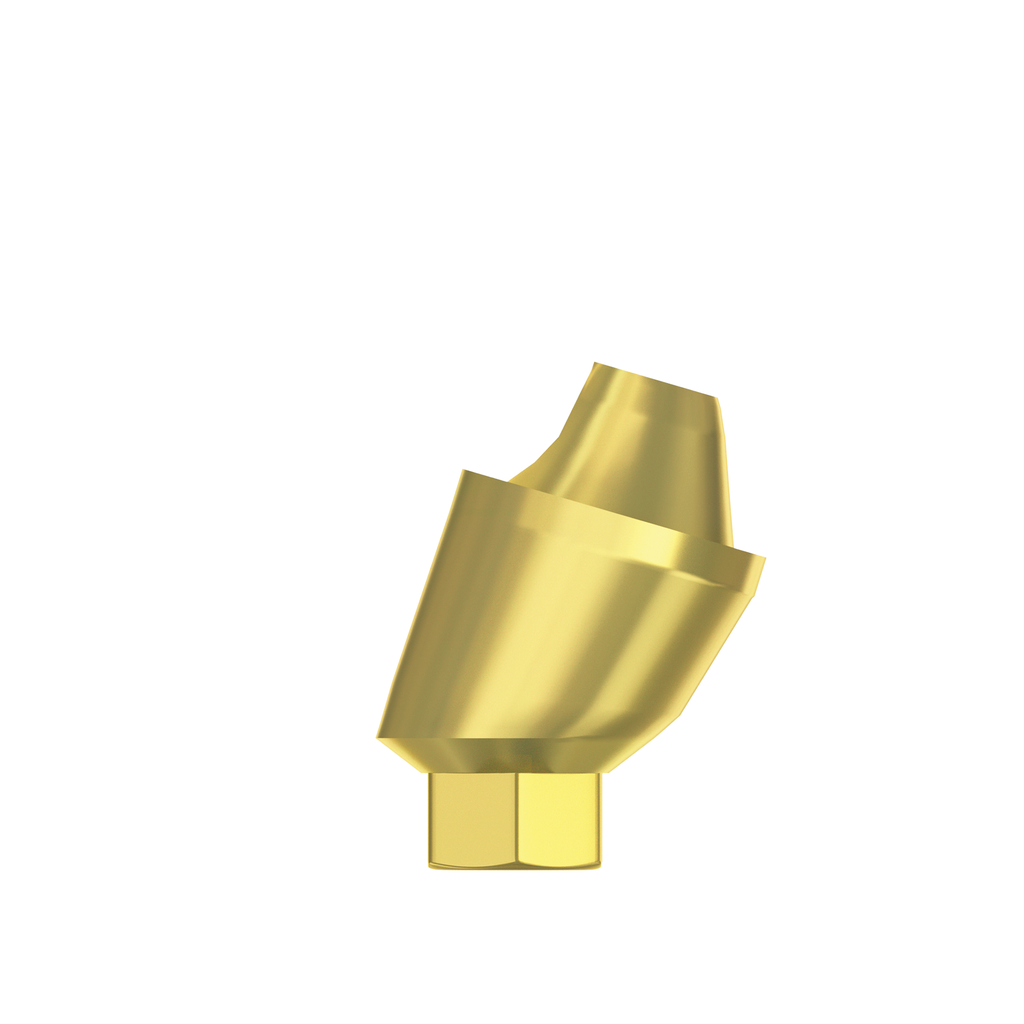

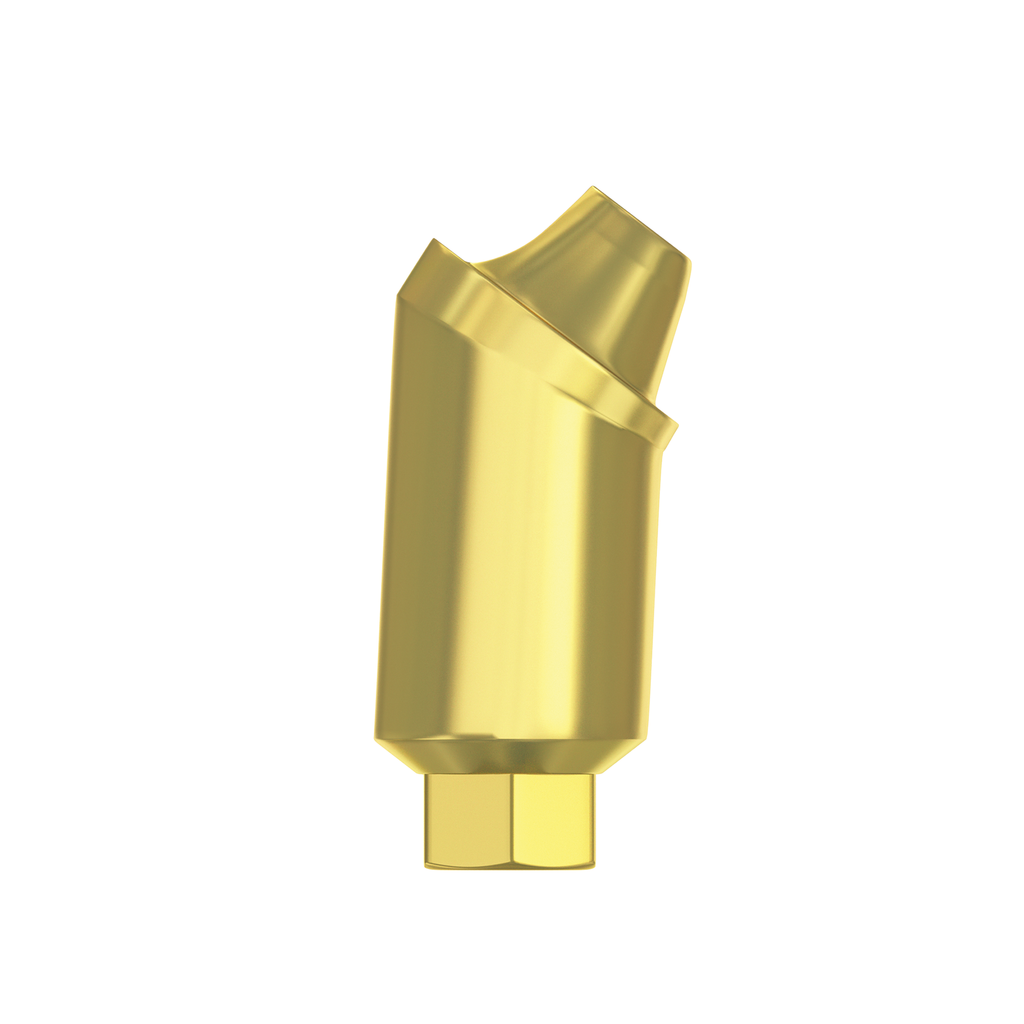

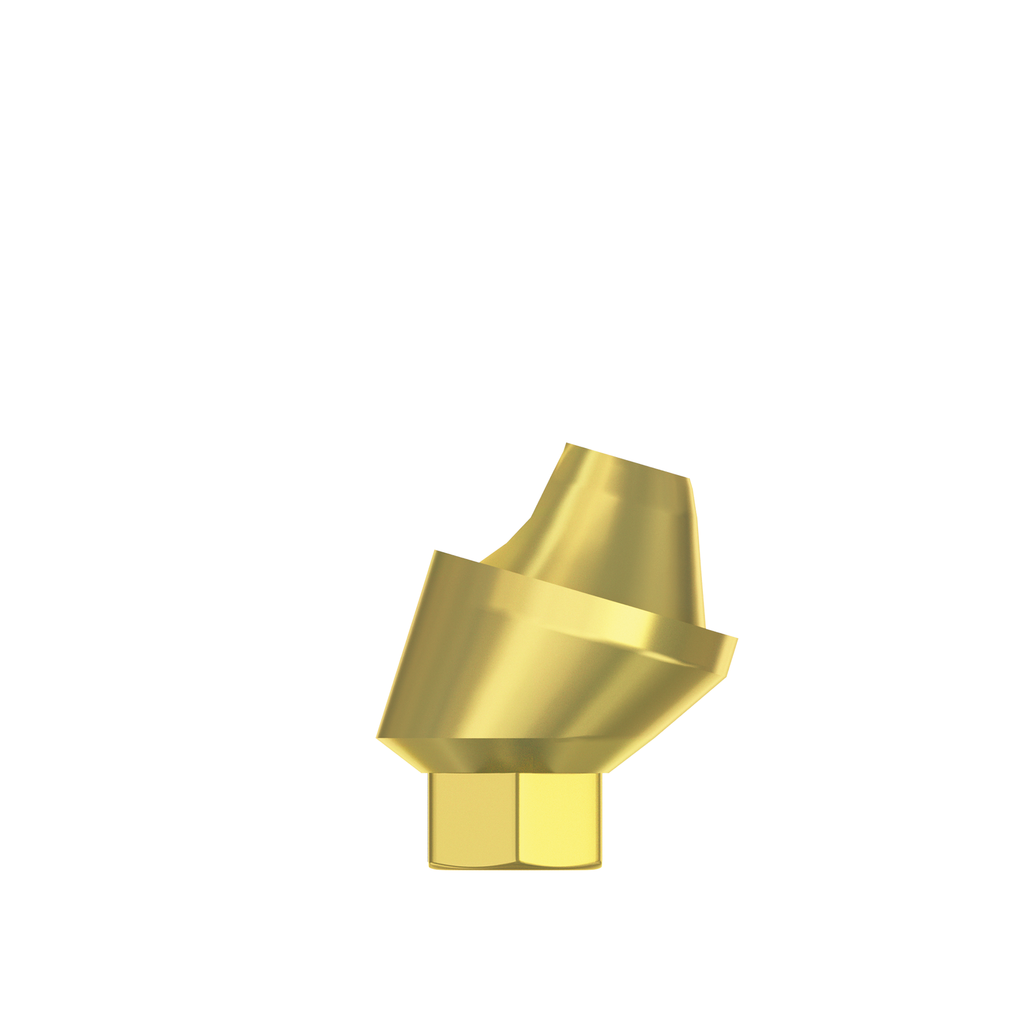

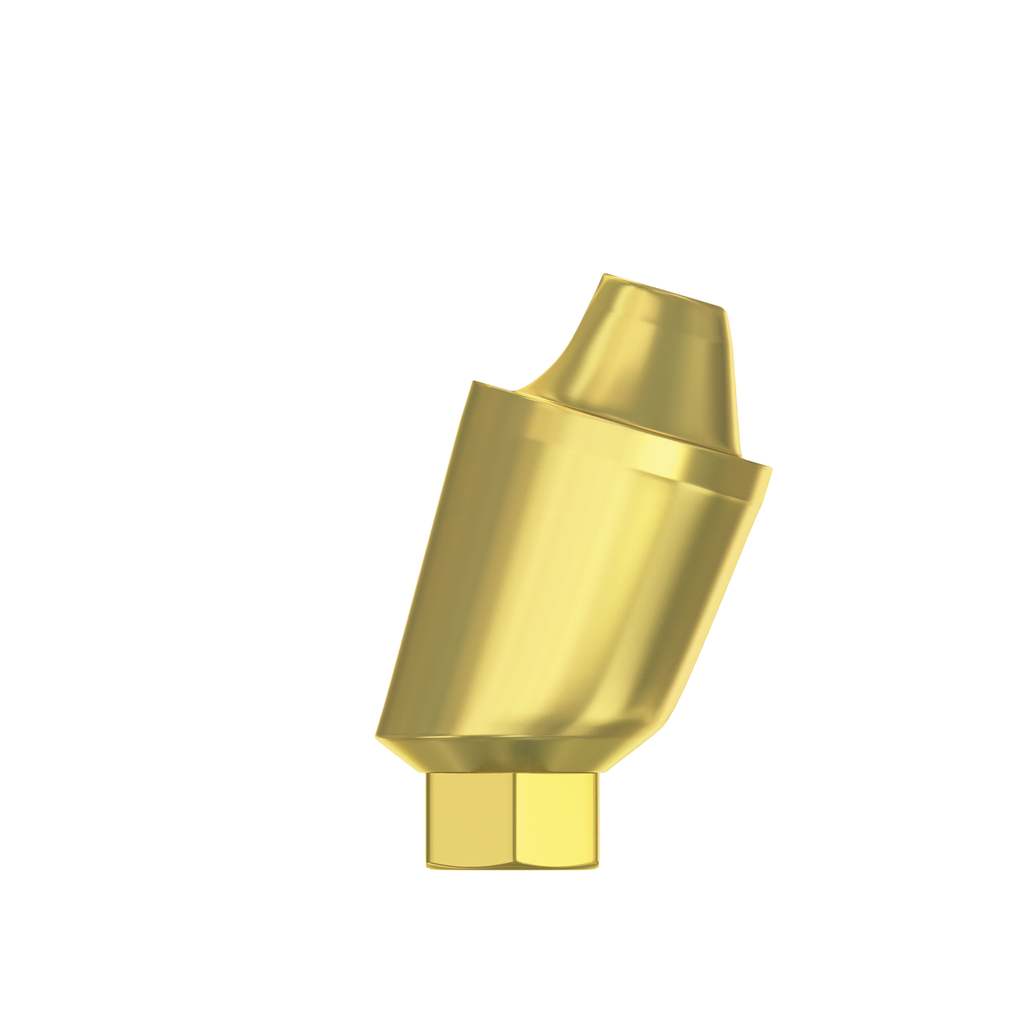

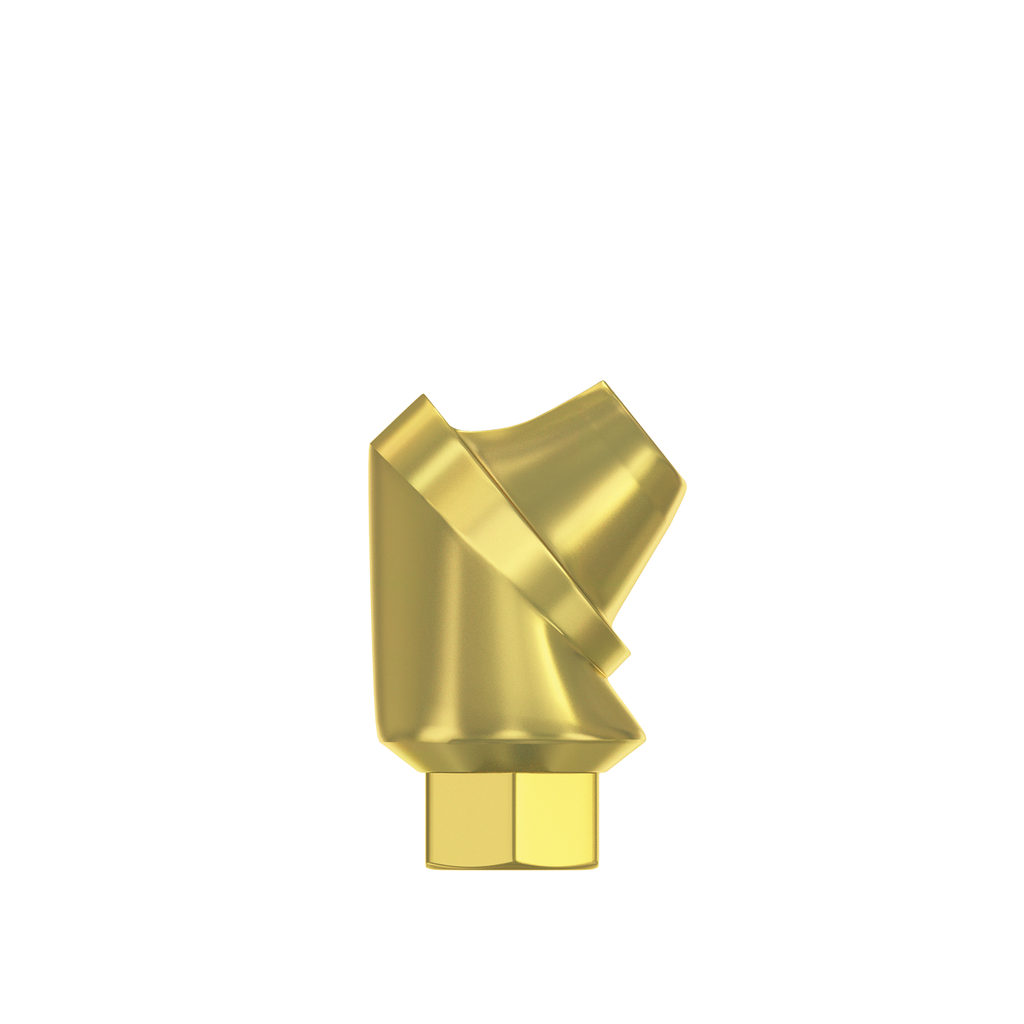

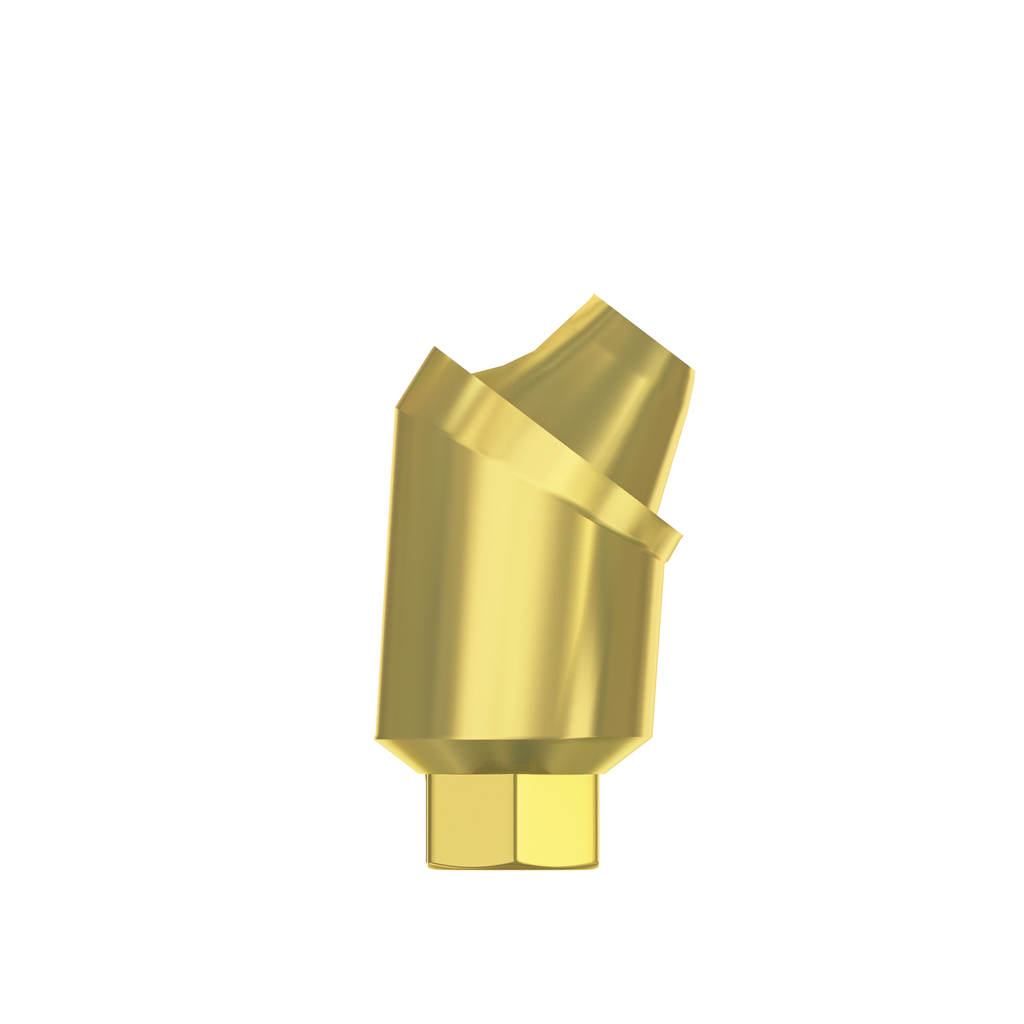

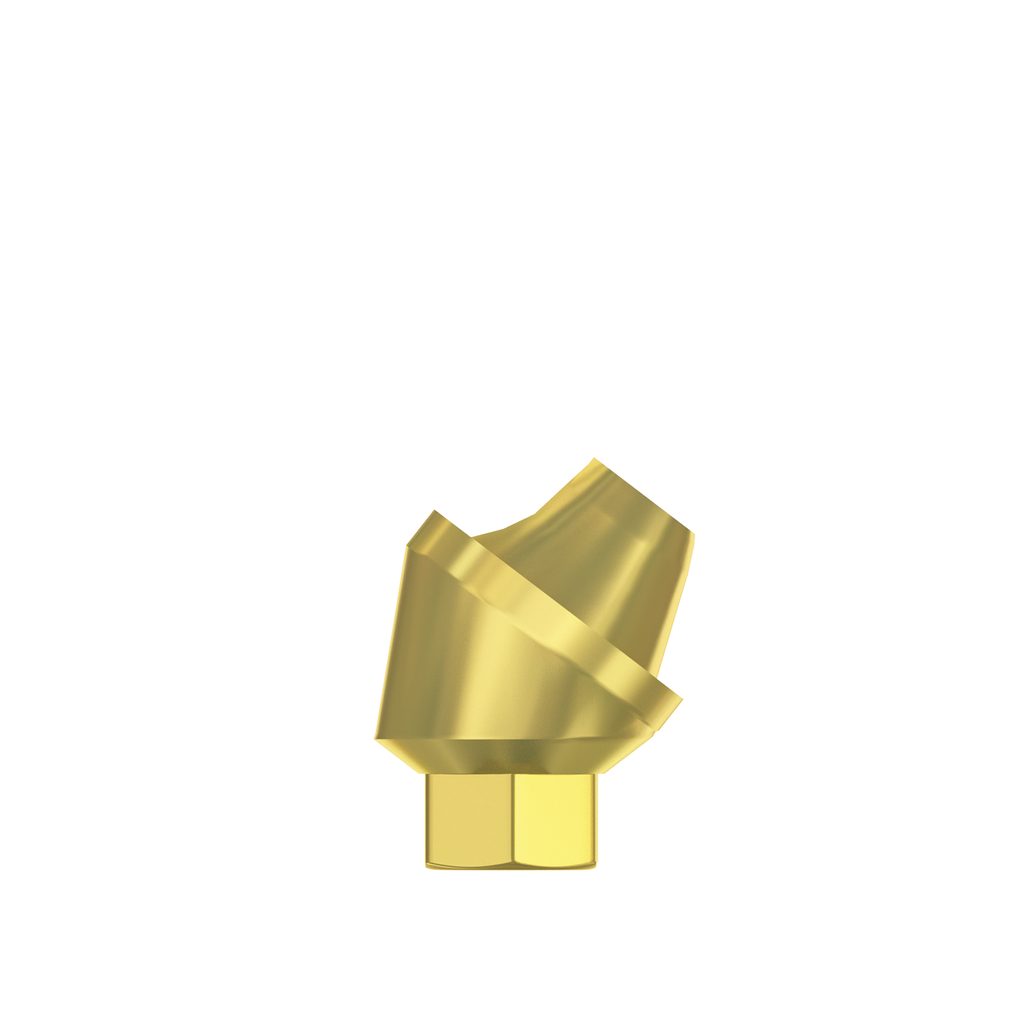

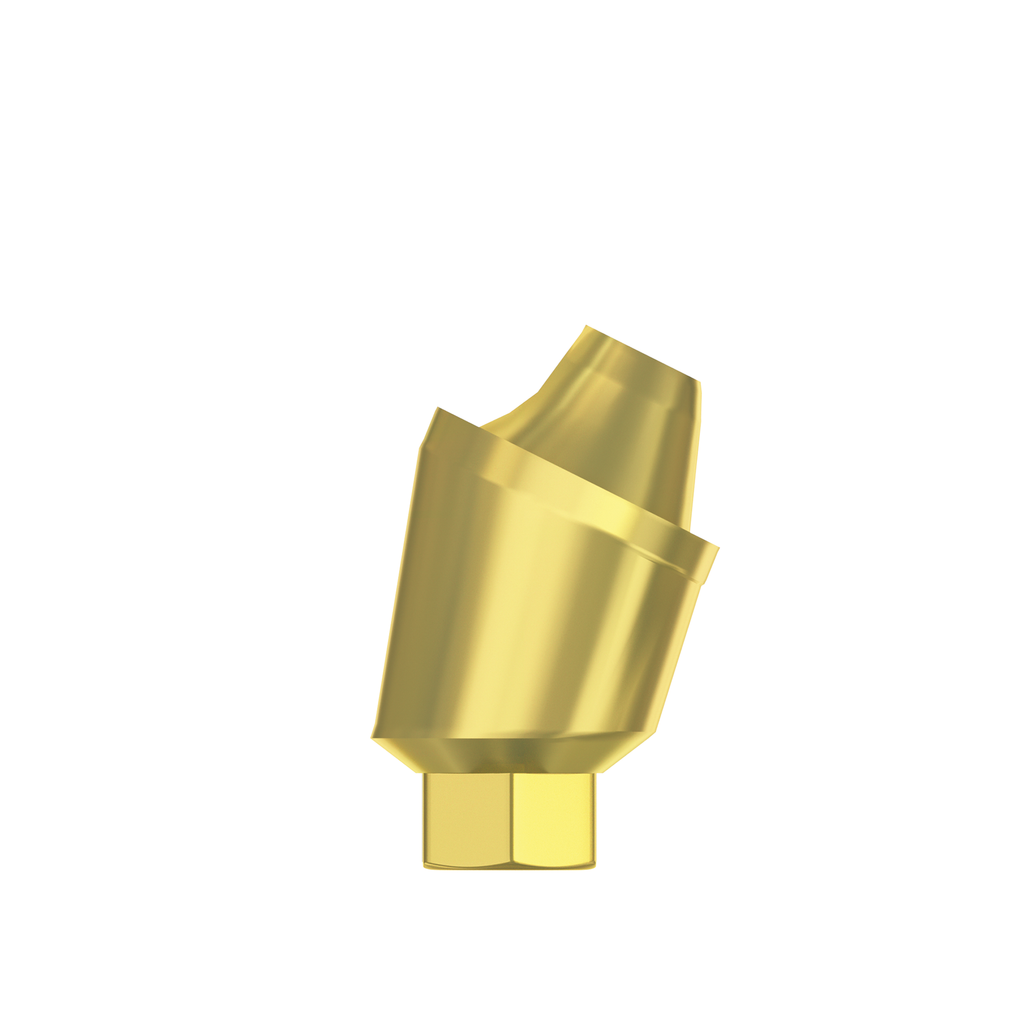

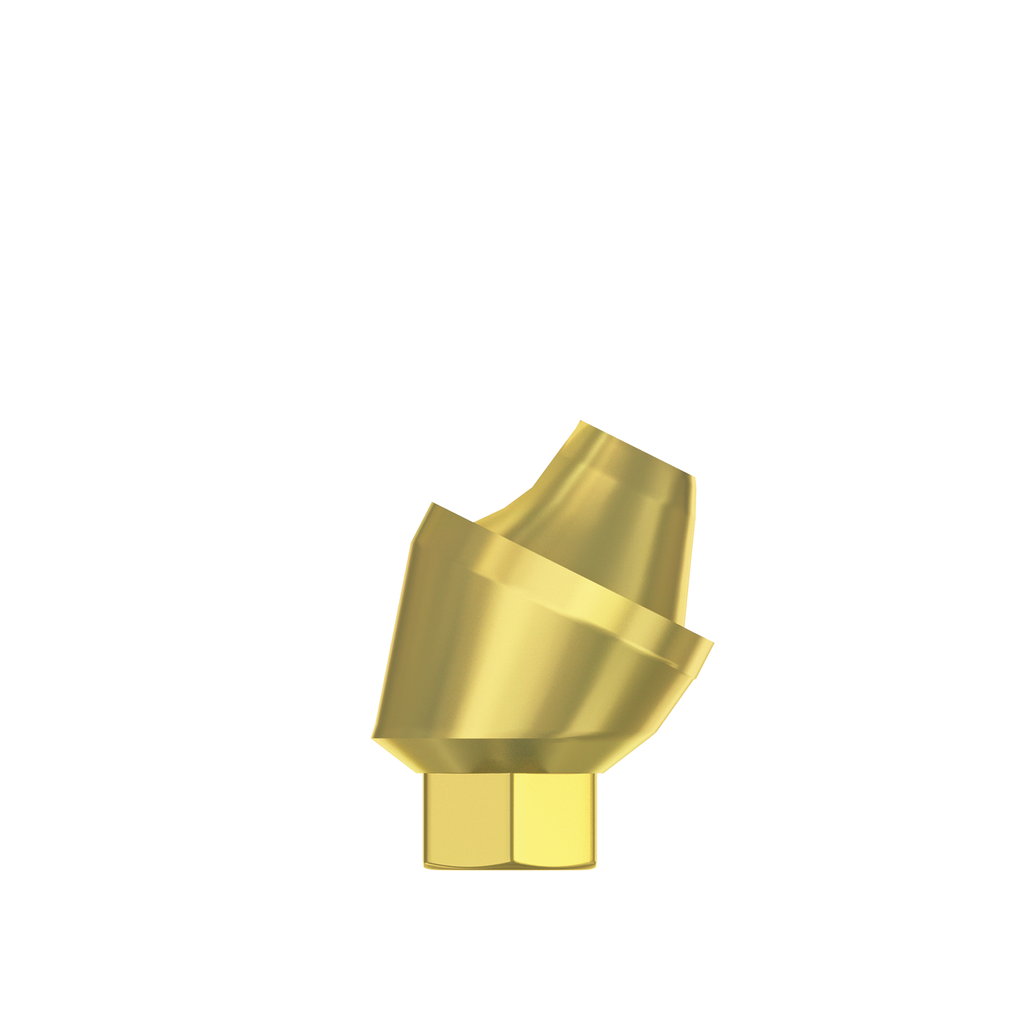

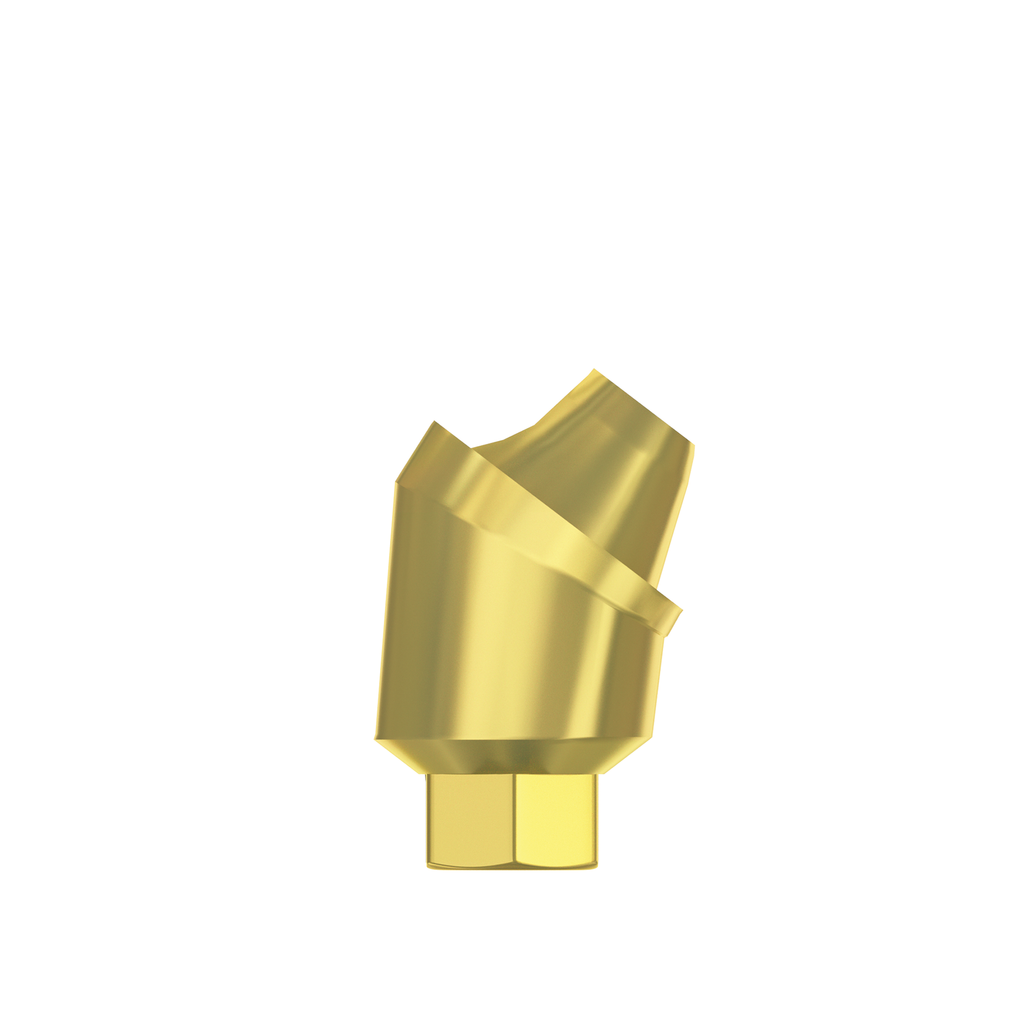

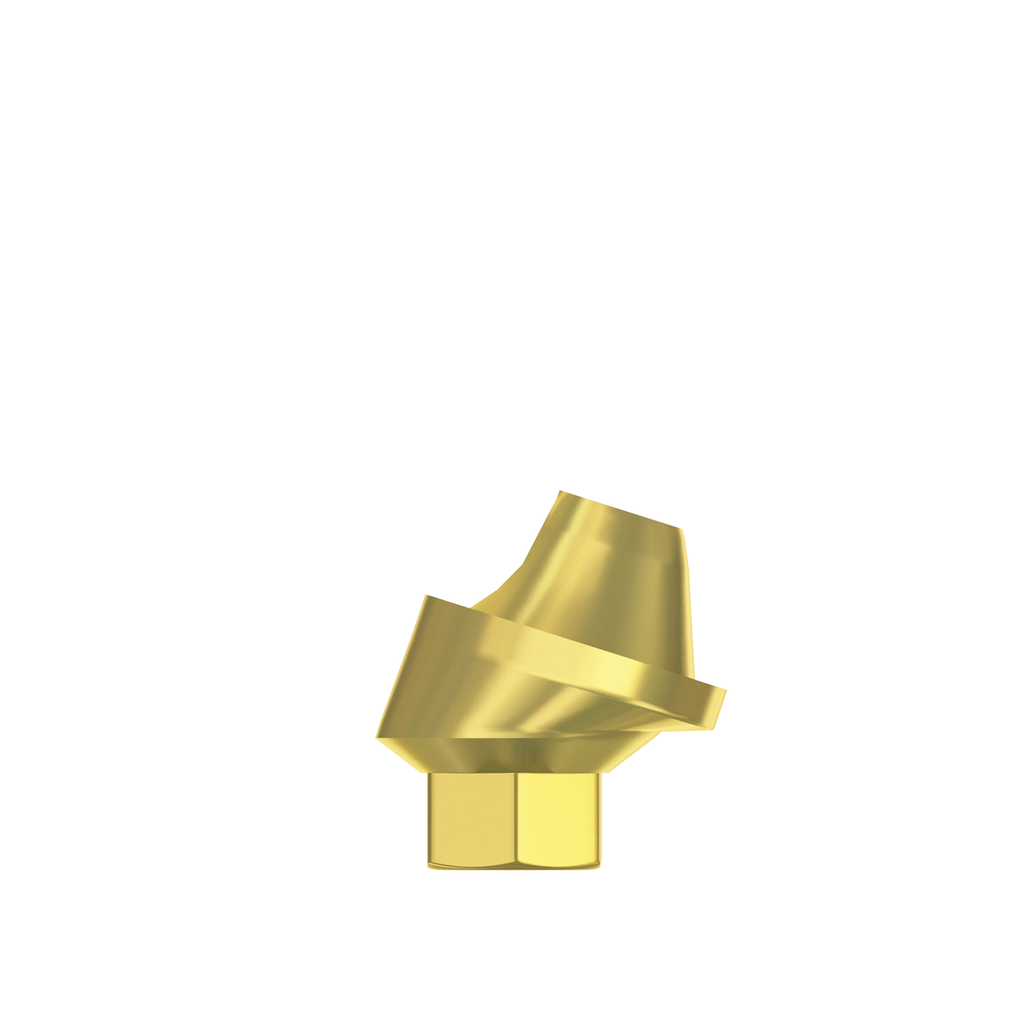

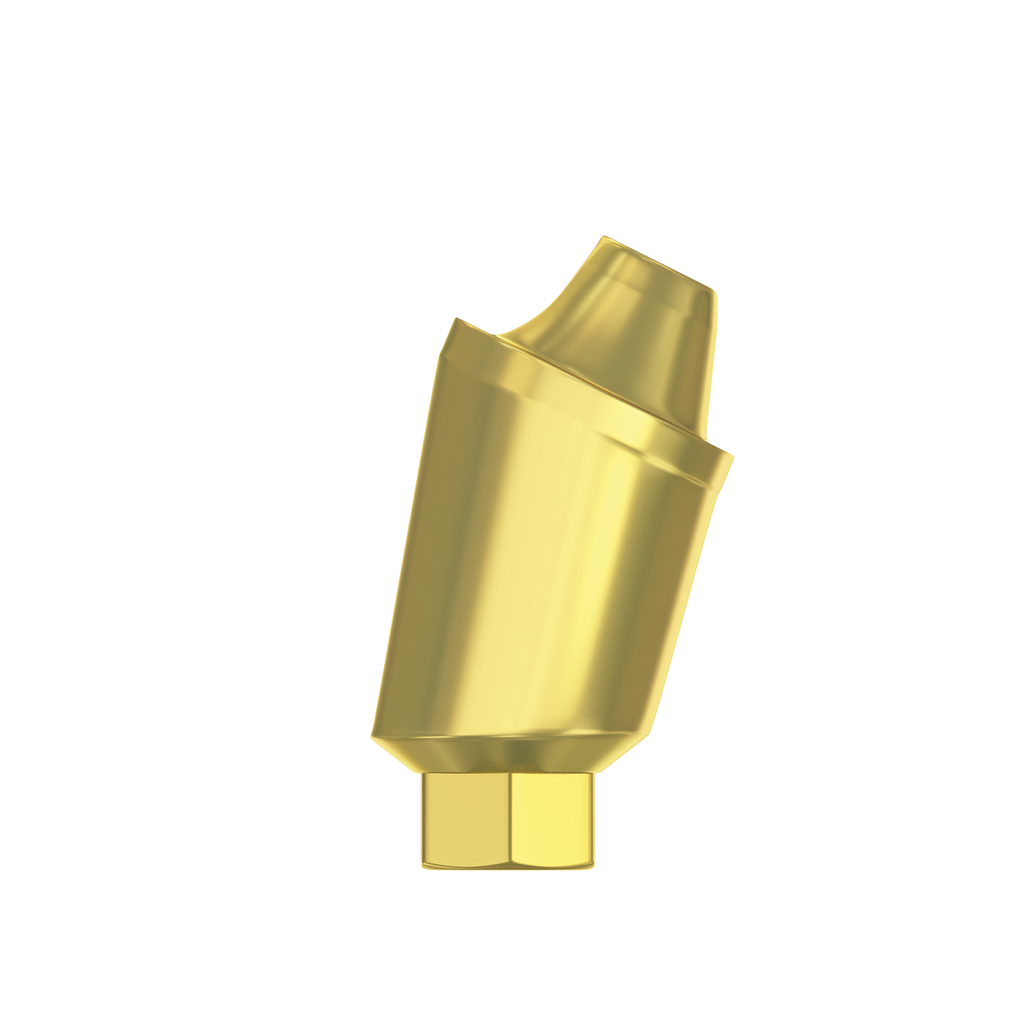

  1. MUA-NO-1720, MUA-NO-1730 , MUA-NP-1740 , MUA-NO-1750 , MUA-NO-3020, MUA-NO-3030, MUA-NO-3040, MUA-NO-3050, MUA-NO-4520, MUA-NO-4530, MUA-NO-4540,MUA-NO-5220, MUA-NO-6020: Angulated Multi Unit Abutment Ø5.0mm ,2.0-5.0mm x1

And the following parts:

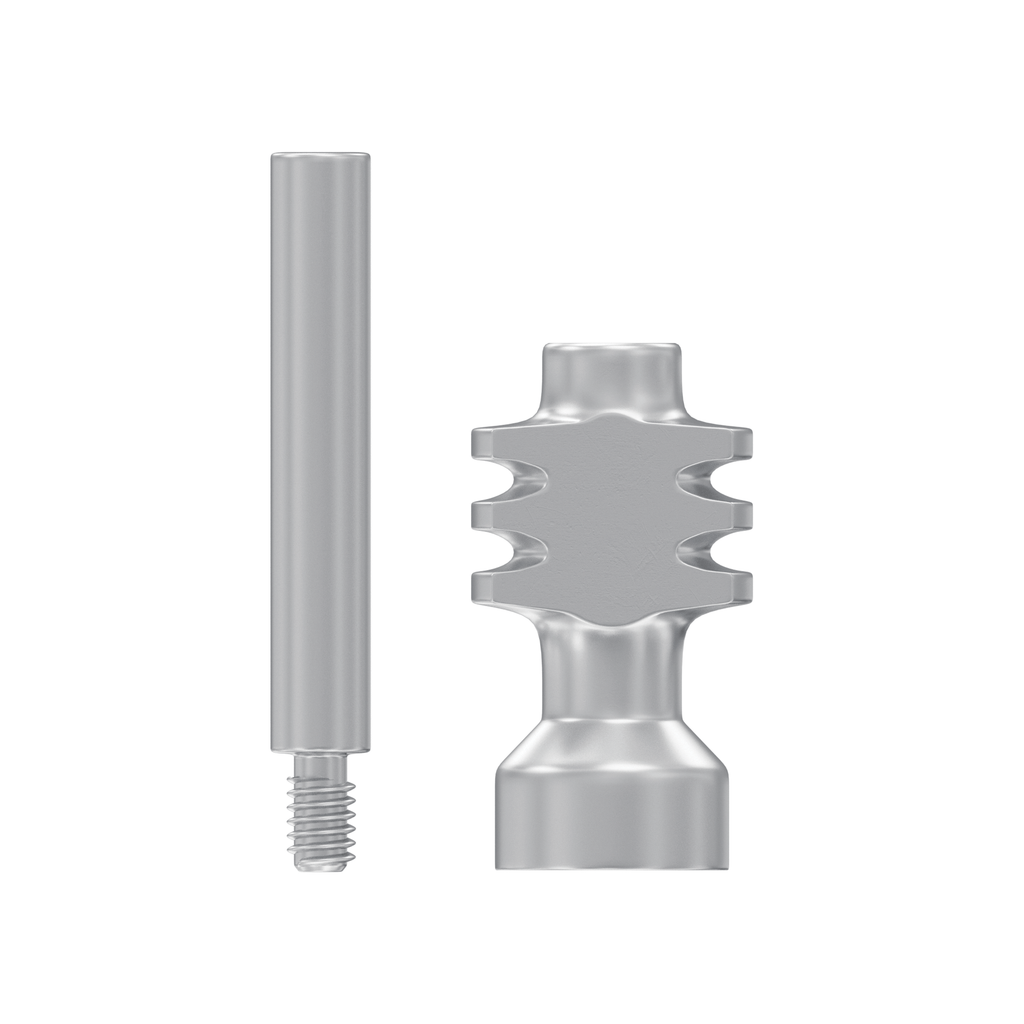

  1. MU-NO-OT: Open Tray Transfer + screw Ø 4.9mm , L=9.0mm, H=11.0mm x 1

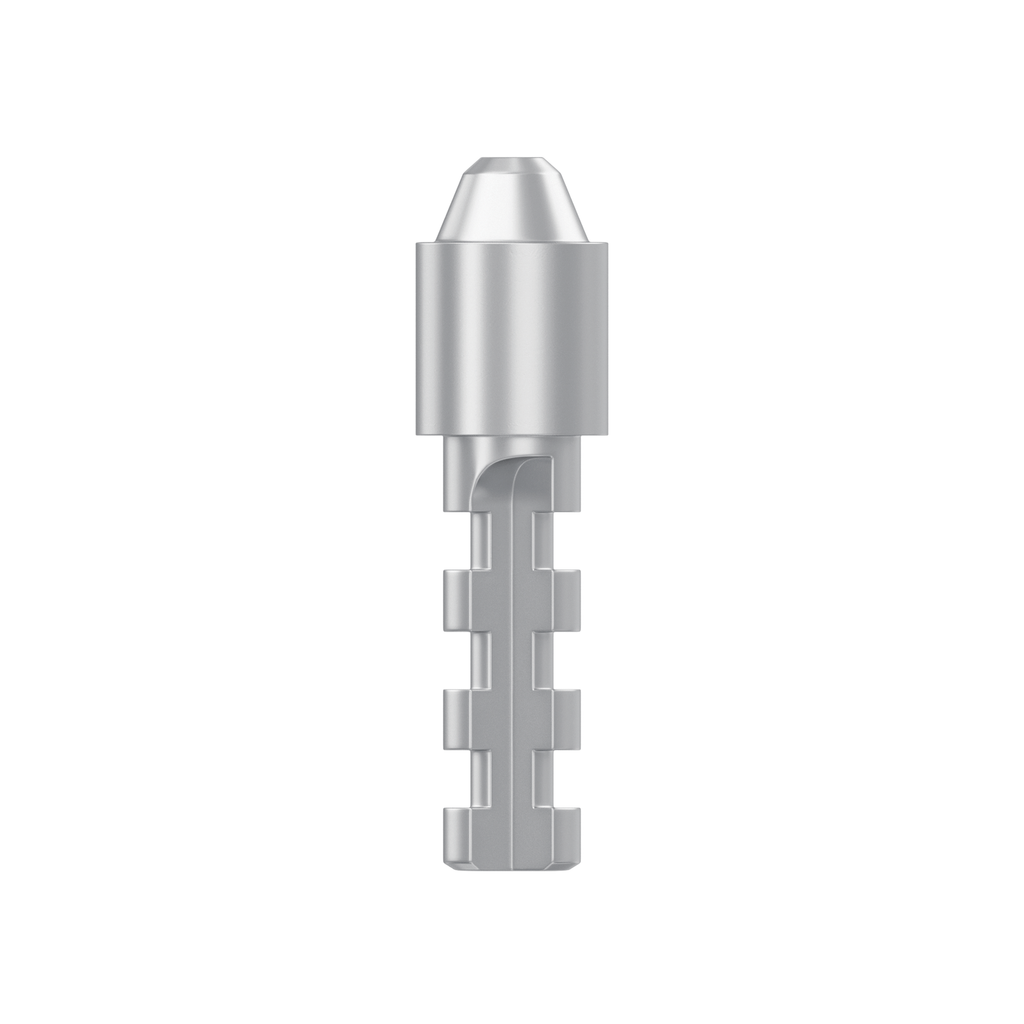

  2. MU-ANNO: Titanium Analog Ø 4.9mm , L=11.0mm, H=18.0mm x 1

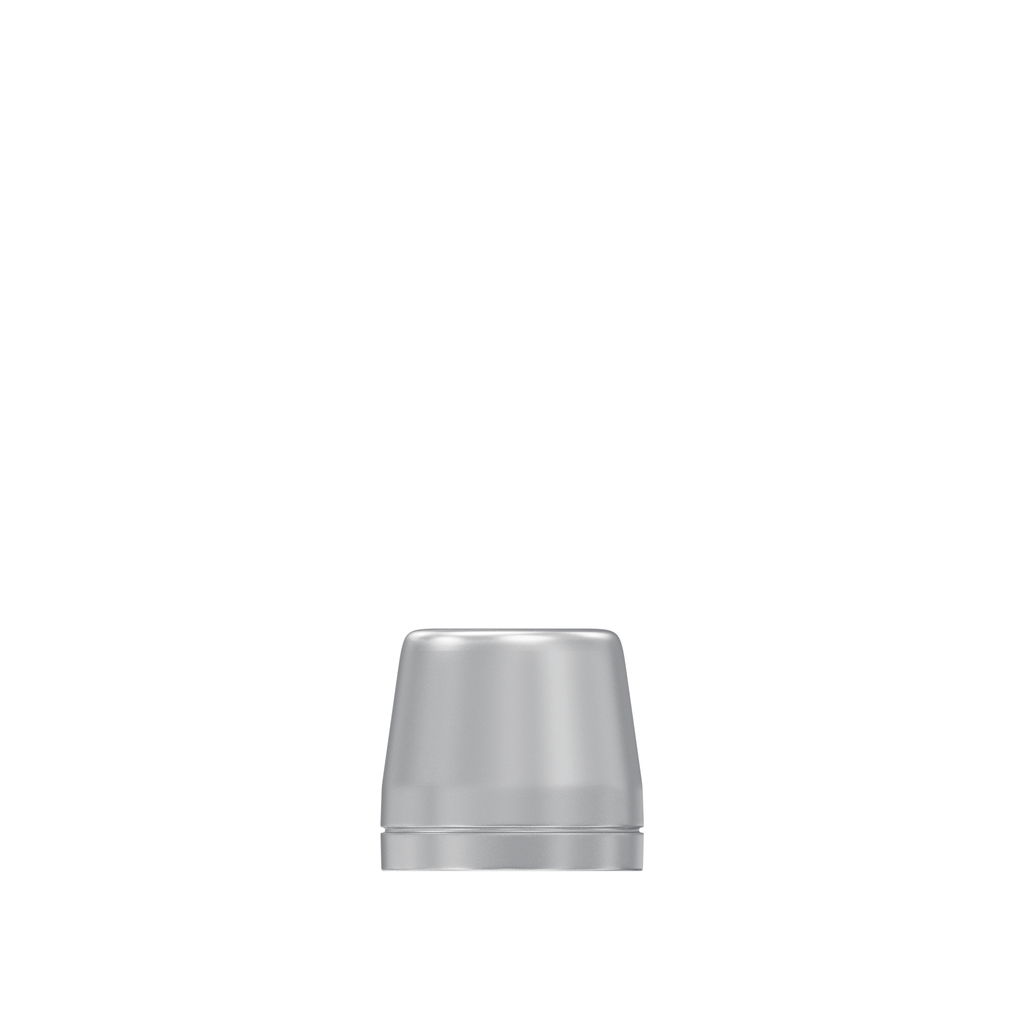

  3. MU-NO-HC: Healing Cap Ø 4.9mm , L=3.7mm, H=4.7mm x 1

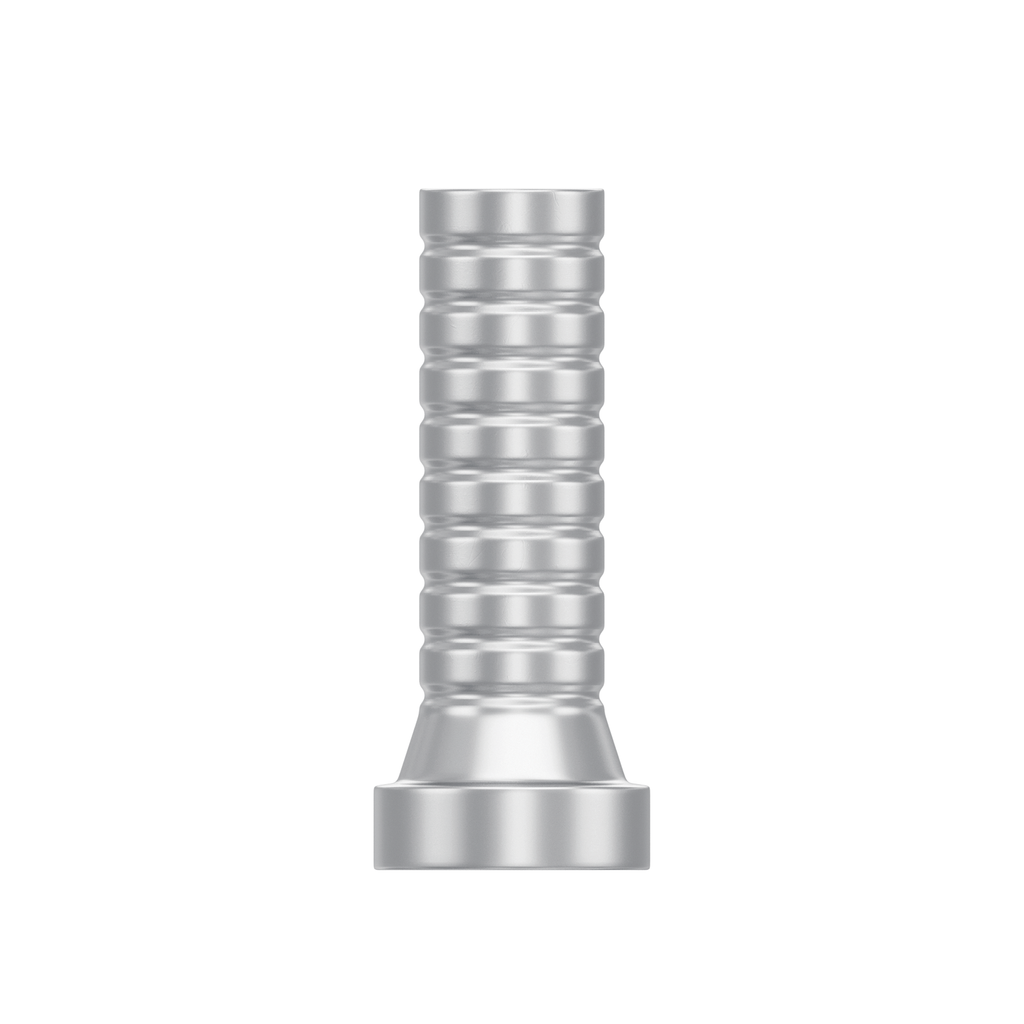

  4. MU-S-ST14: Titanium Sleeve Abutment Ø 4.9mm , L=11.0mm, H=12.0mm x 1

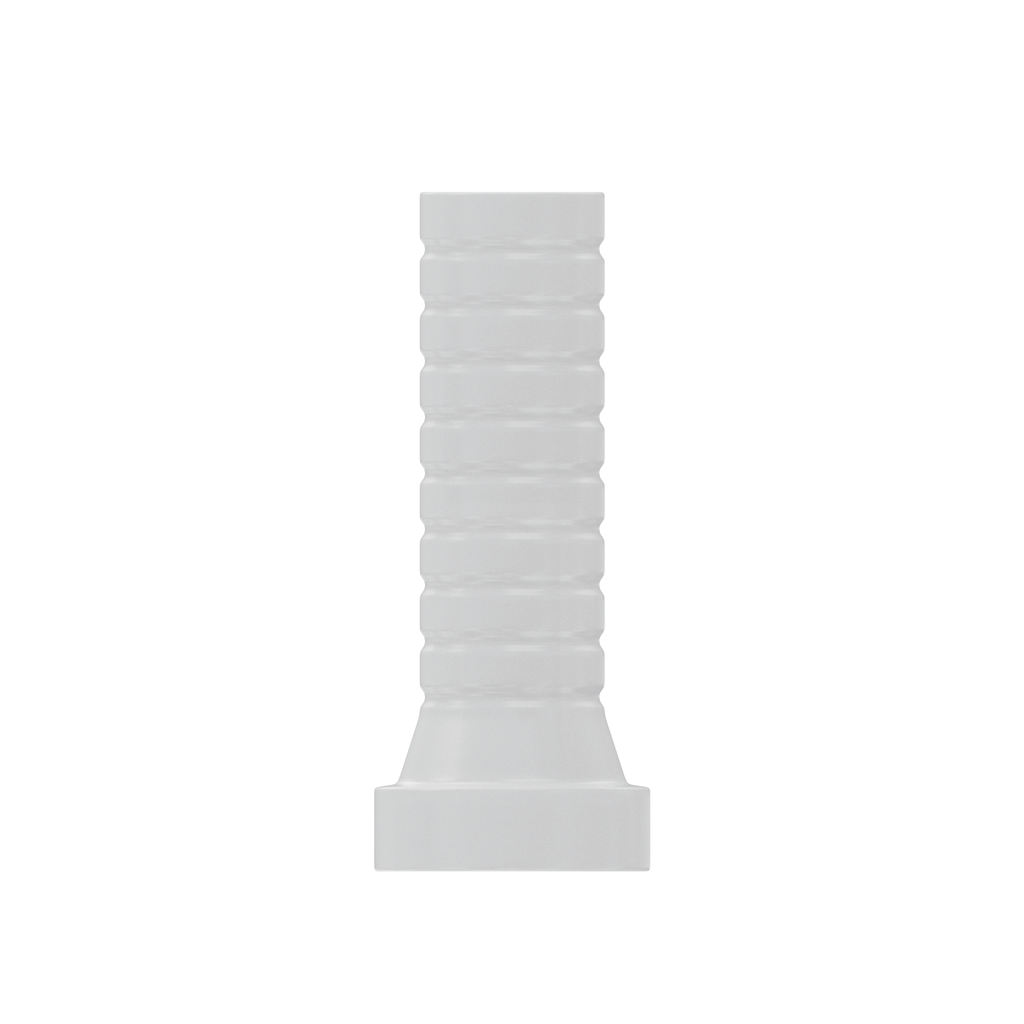

  5. MU-S-SP14: Castable Sleeve Abutment(for Lab) Ø 4.9mm , L=11.0mm, H=12.0mm x 1

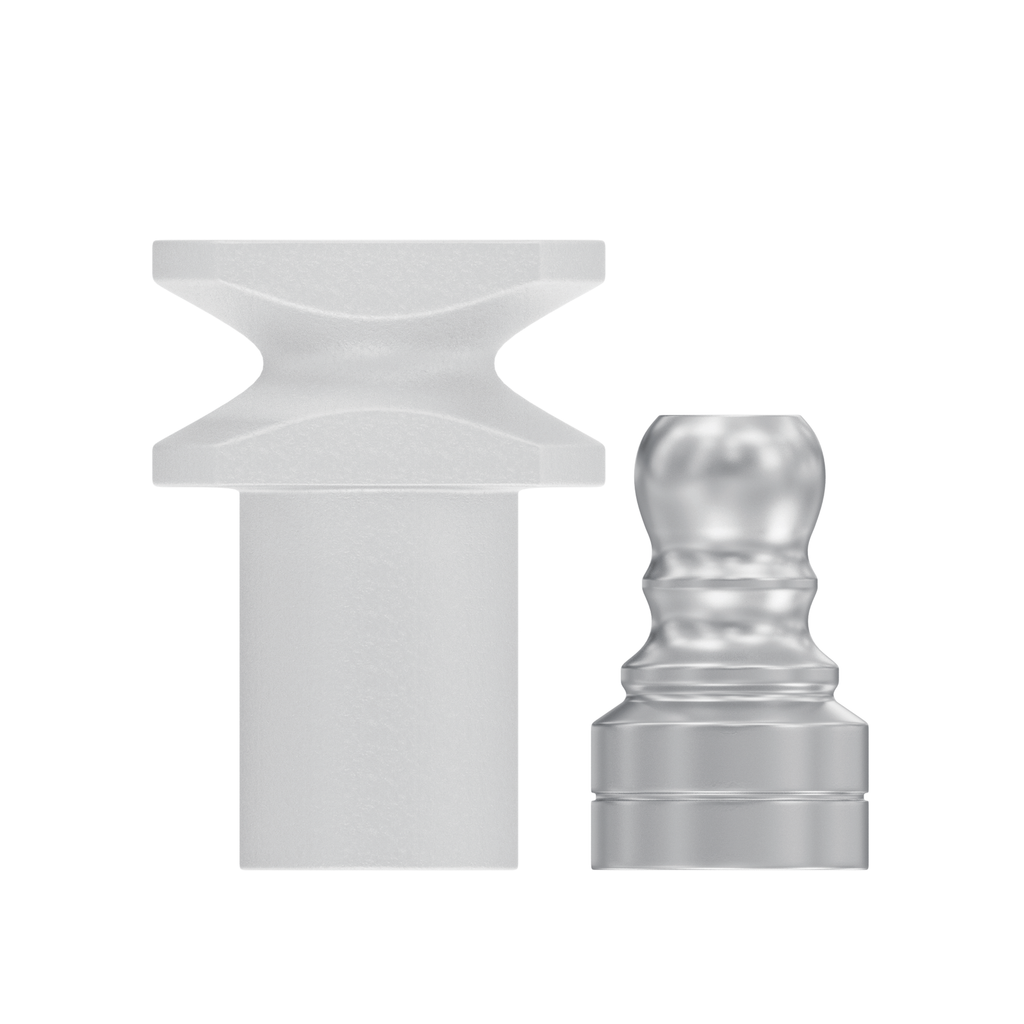

  6. MU-NO-CT: Snap On Cap for closed transfer Ø 4.8mm , L=6.8mm, H=11.0mm x 1
  7. MU-NM-CT: Closed Tray Transfer Ø 4.8mm , L=5.0mm, H=8.0mm x 1

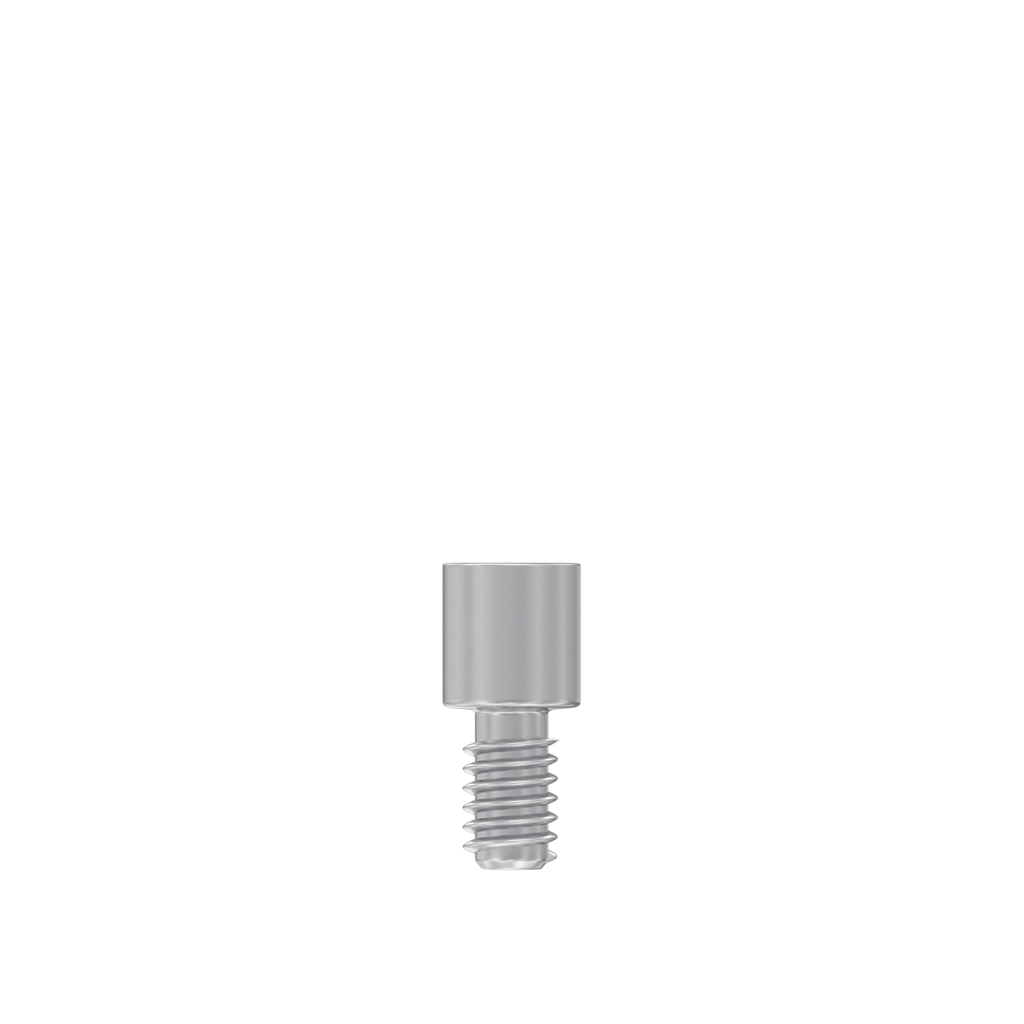

  8. MU-TX-FX: Fixation Short Screws Ø 2.0mm , L=2.2mm, H=4.2mm x 2

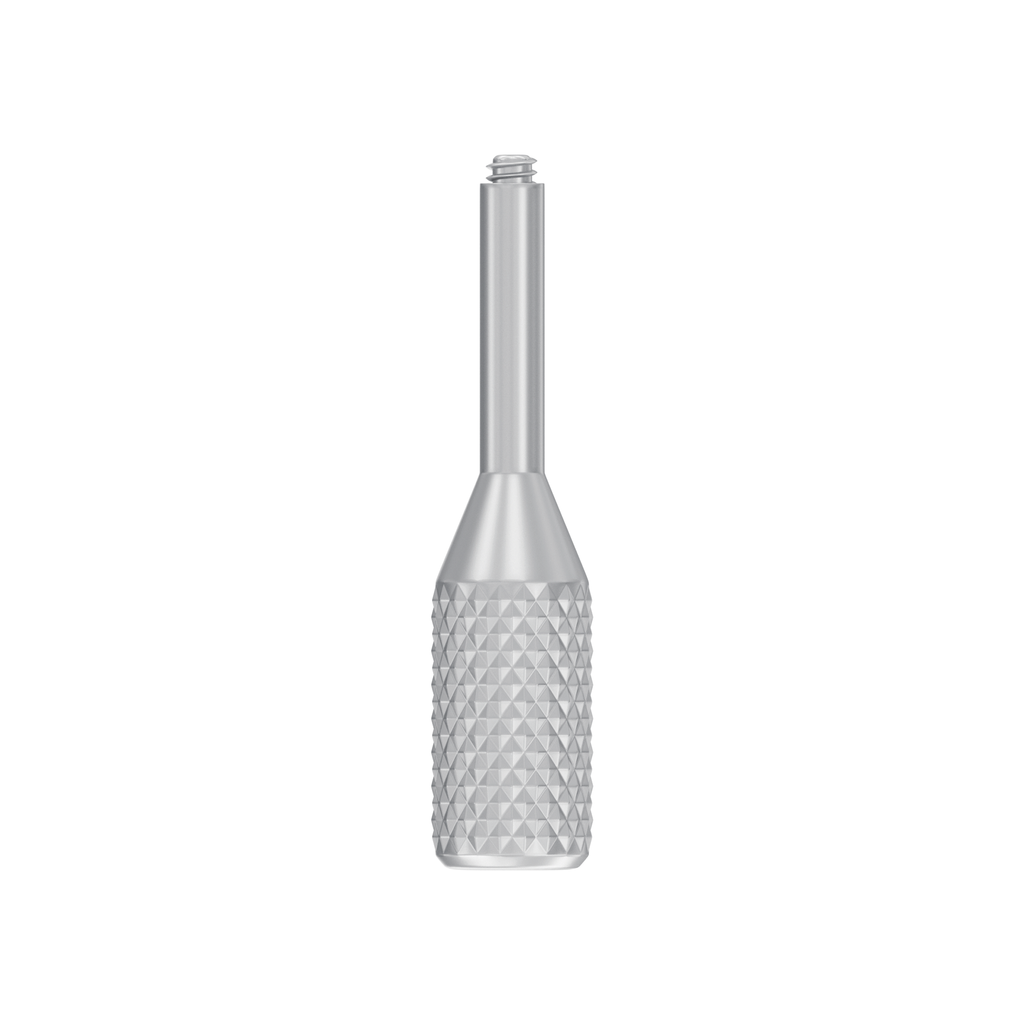

  9. MUIH: Metal Position Holder Ø 1.4mm , L=7.5mm, H=15.3mm x 1

Best-in-class digital library link for free download
Exocad: https://dsisrael.co/EXOCADLIB
3Shape: https://dsisrael.co/3SHAPELIB

Indications:

  • Multiple teeth
  • Complete bridges
  • Fabrication of long-term/permanent restorations
  • All-on-4,All-on-6
  • For non-parallel implant alignment cases

Features:

  • Excellent biocompatibility, no risk of abruption.
  • Precise, non-rotational, functional.
  • Simple, fast, and accurate positioning.
  • Outstanding stability for the crowns and bridges
  • Superior aesthetic results.

Technical information:

  • Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
  • Regular platform - Ø4.9mm / collar height 2.0-5.0mm
  • Implant Level Connection 2.42mm Internal Hex, compatible with: DSI®, MIS®, Alpha Bio®, AB Dental®, BioHorizons®, Zimmer®, Implant Direct®, Cortex®, Alpha Gate®, Adin®, Paltop®,Ditron Dental®, Surgikor®, JdentalCare® - Internal Hex RP
  • Multi Unit level Connection M1.4 Compatible with : Nobel Biocare and DSI premium multi-unit abutments M1.4
  • 17° Degrees
  • 30° Degrees
  • 45° Degrees
  • 52° Degrees
  • 60° Degrees
  • Titanium fixation screw included with every abutment

Material:
  • ["Titanium alloy Ti-6Al-4V grade 23 ELI","Acetal (Delrin®)"]
Package contents:
  • ["1 Angulated MUA + Accessories (see description)"]
Platform:

Internal Hex Ø2.42mm
