DSI Premium Straight Multi Unit Abutment (M1.6) 4.7mm Full Set - Conical Connection NP Ø3.5mm

Roll over image to zoom in Click on image to zoom

DSI Premium Straight Multi Unit Abutment (M1.6) 4.7mm Full Set - Conical Connection NP Ø3.5mm

SKU: PMUA-NB-NP15

Your cart
Variant	Variant total	Quantity	Price	Variant total
1.0mm	1.0mm $75.90/ea	$0.00	Quantity	$75.90/ea	$0.00

2.0mm	2.0mm $75.90/ea	$0.00	Quantity	$75.90/ea	$0.00

3.0mm	3.0mm $75.90/ea	$0.00	Quantity	$75.90/ea	$0.00

4.0mm	4.0mm $75.90/ea	$0.00	Quantity	$75.90/ea	$0.00

Add To Wishlist

The DSI Premium Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.

DSI Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DSI Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals‍

DSI Premium multi-unit Time-proven design Allows, work with different implants (regular hexagonal, narrow, conical) without changing the restoration at the multi-unit level

DSI Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

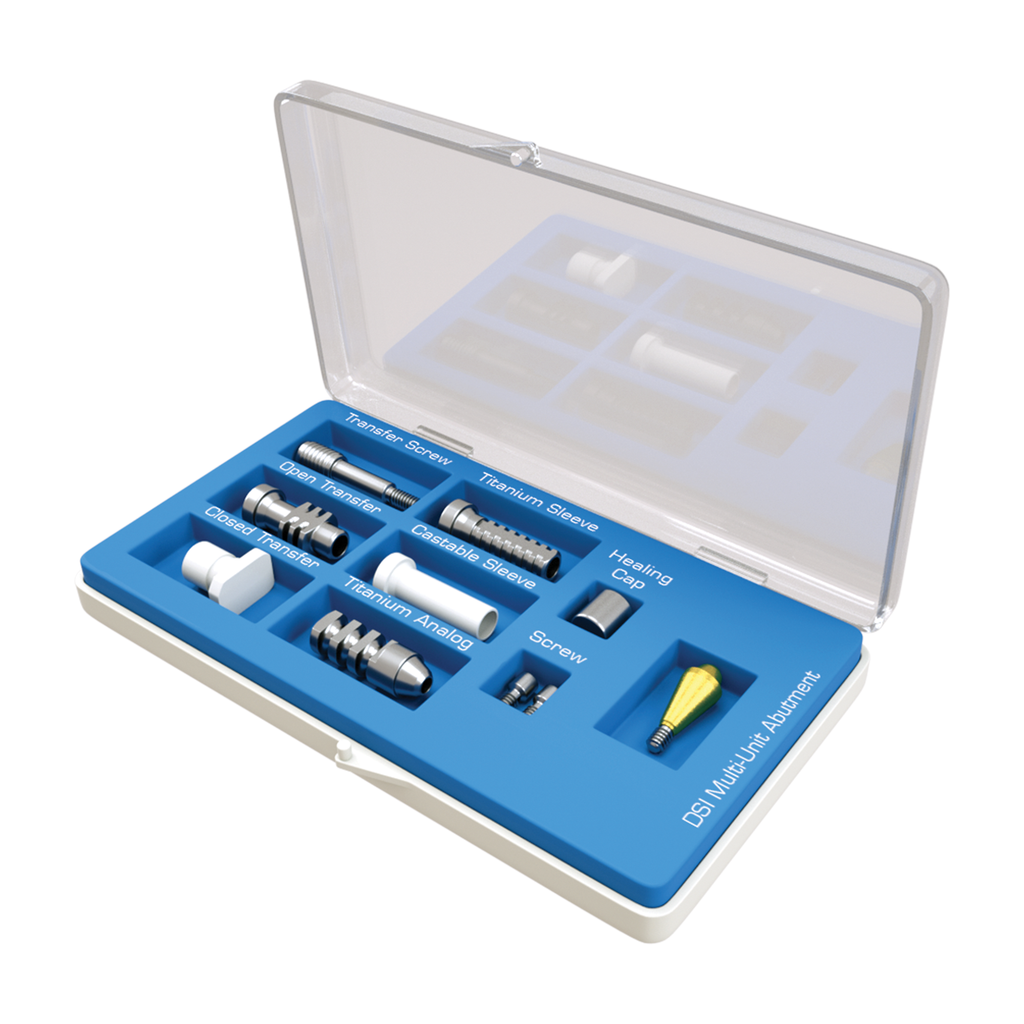

The most commonly used and versatile is the Full Set, which includes

One abutment of the chosen size:

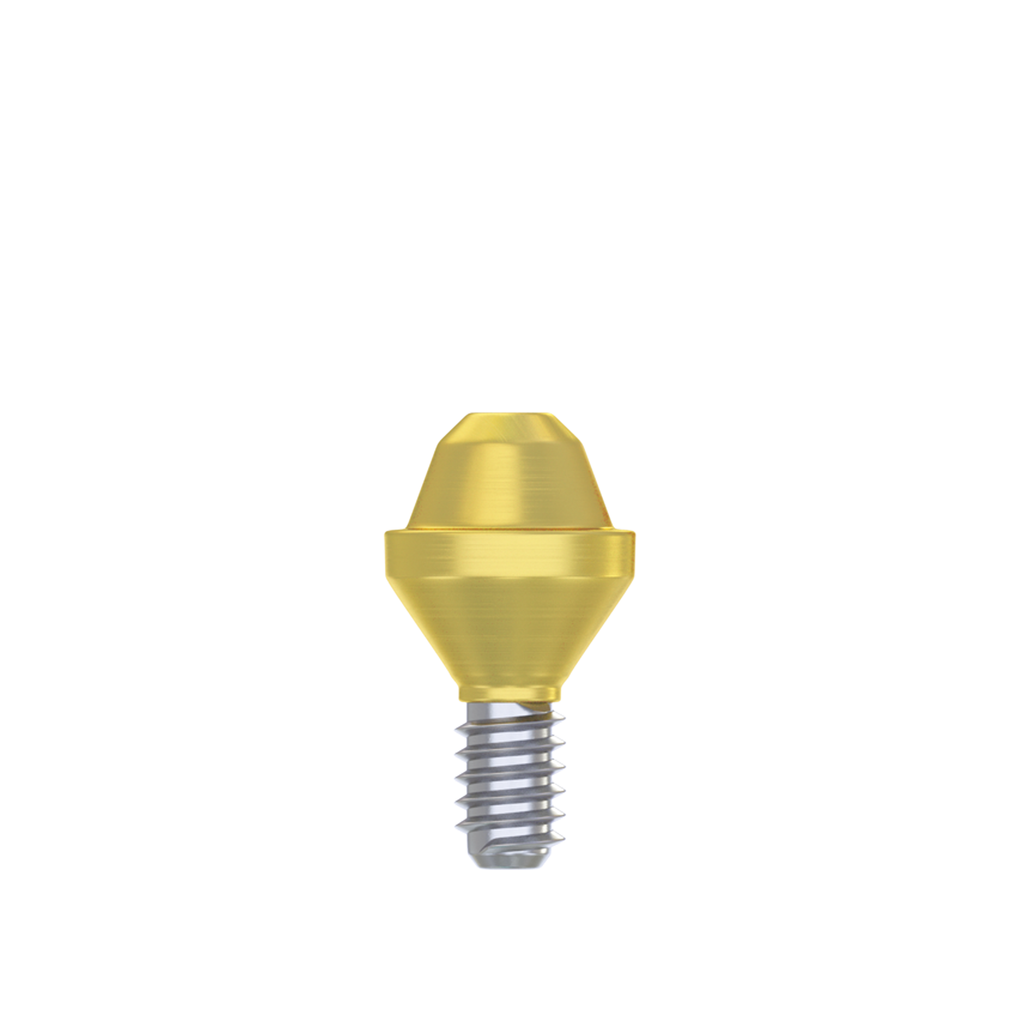

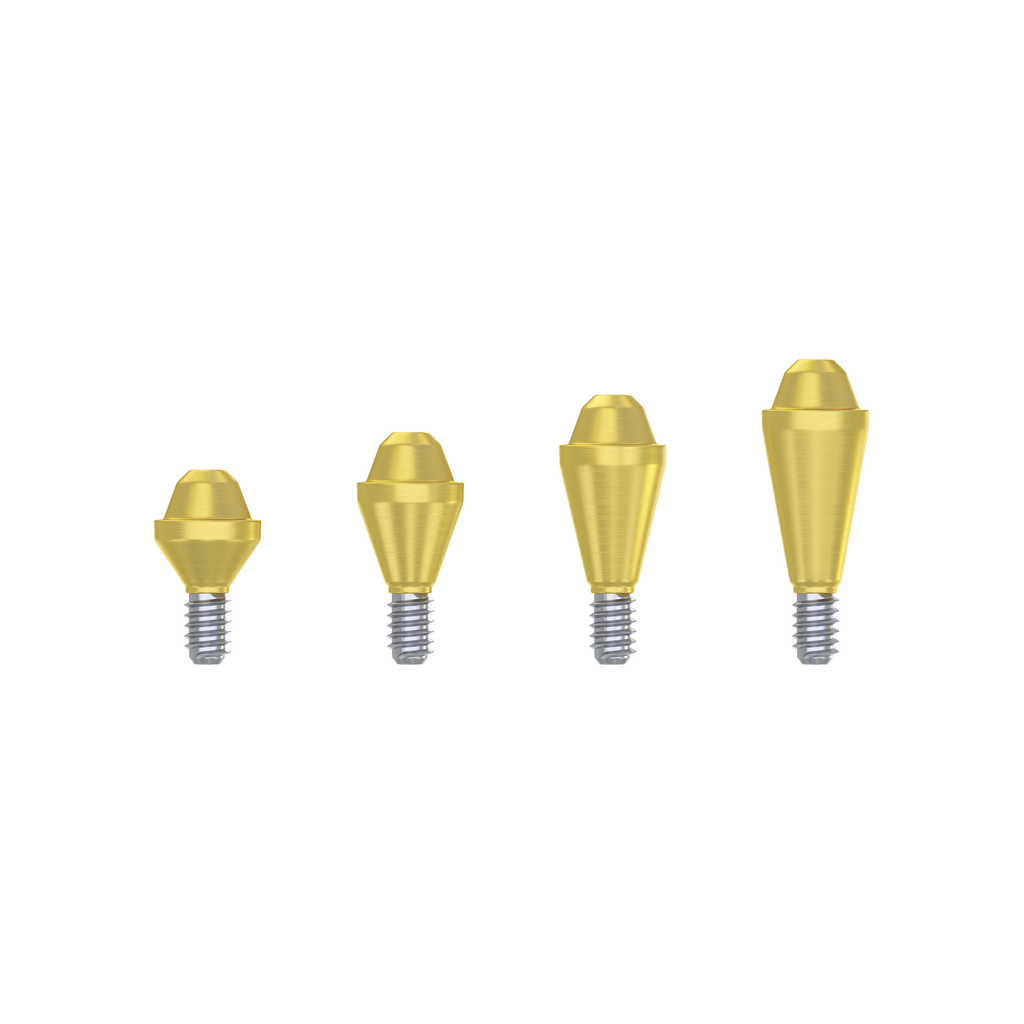

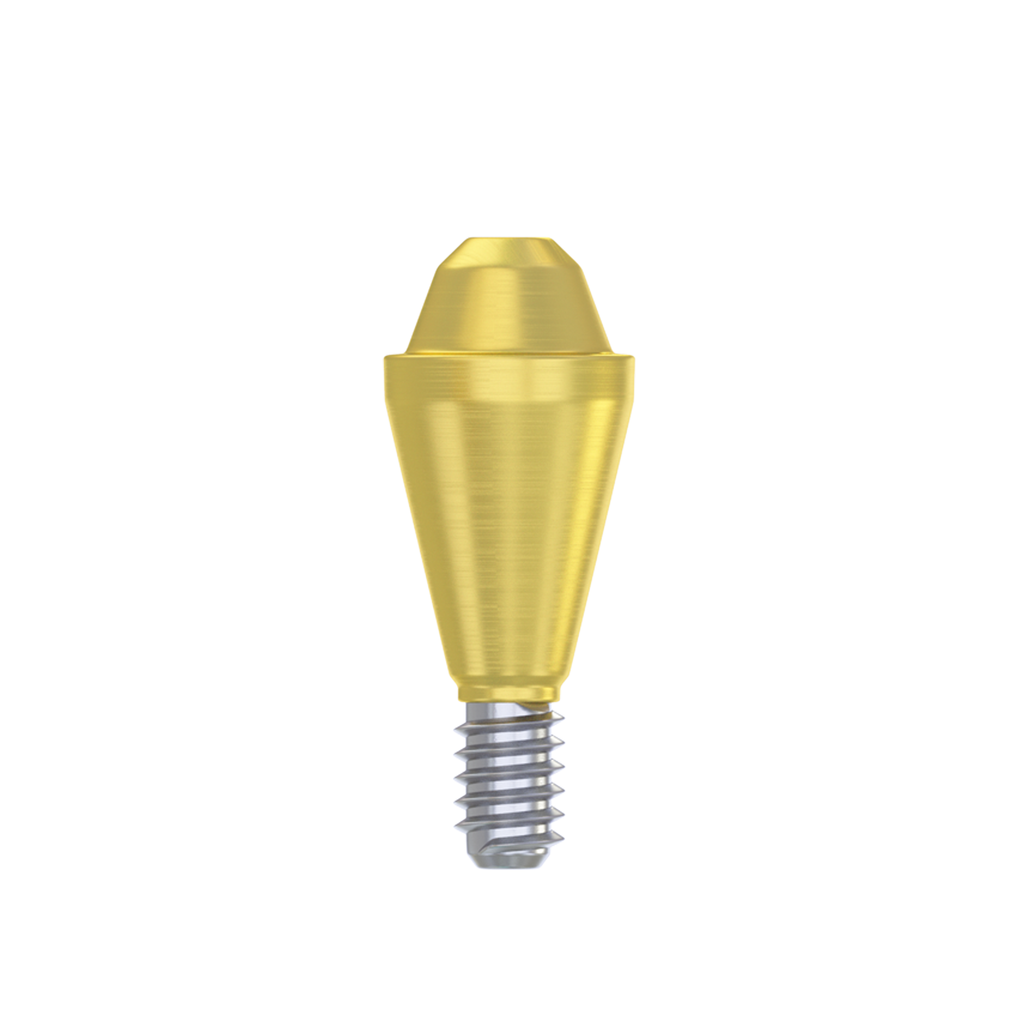

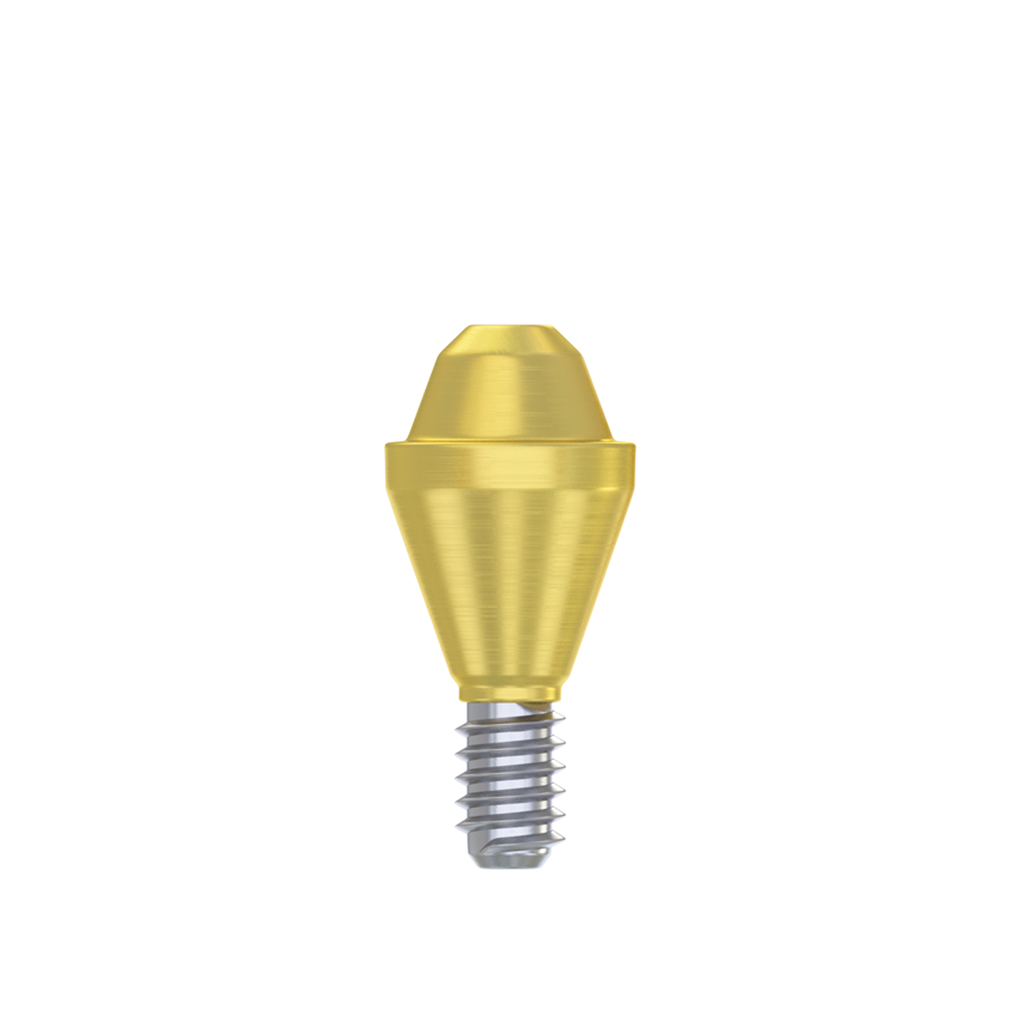

MUA-NB-NP15, MUA-NB-NP25 , MUA-NB-NP35 , MUA-NB-NP45: Straight Multi Unit Abutment Ø4.7mm ,1.0-4.0mm x1

And the following parts:

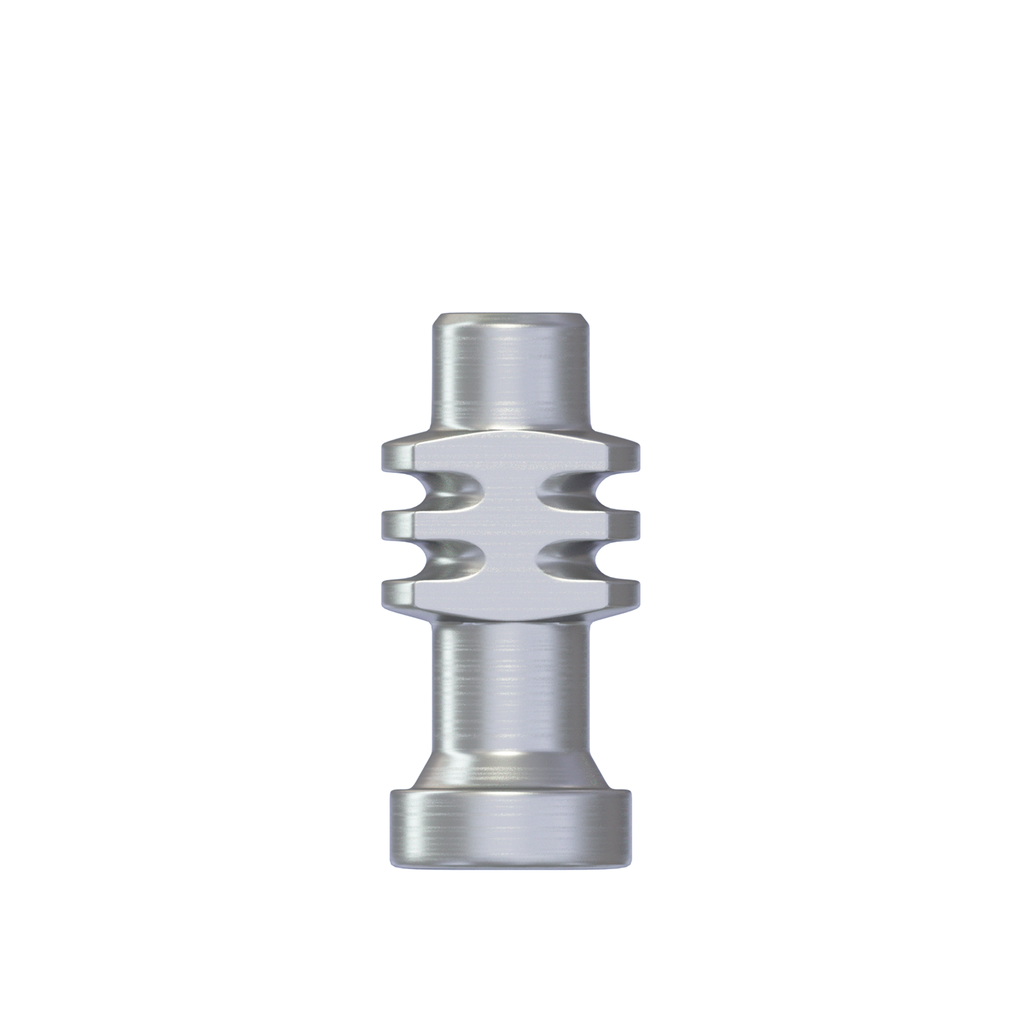

STFMU-K: Open Tray Transfer Ø 4.8mm , L=8.5mm, H=10.7mm x 1
STFMU-KC: Snap-On Closed Transfer Ø 4.75mm , L=5.0mm, H=7.2mm x 1

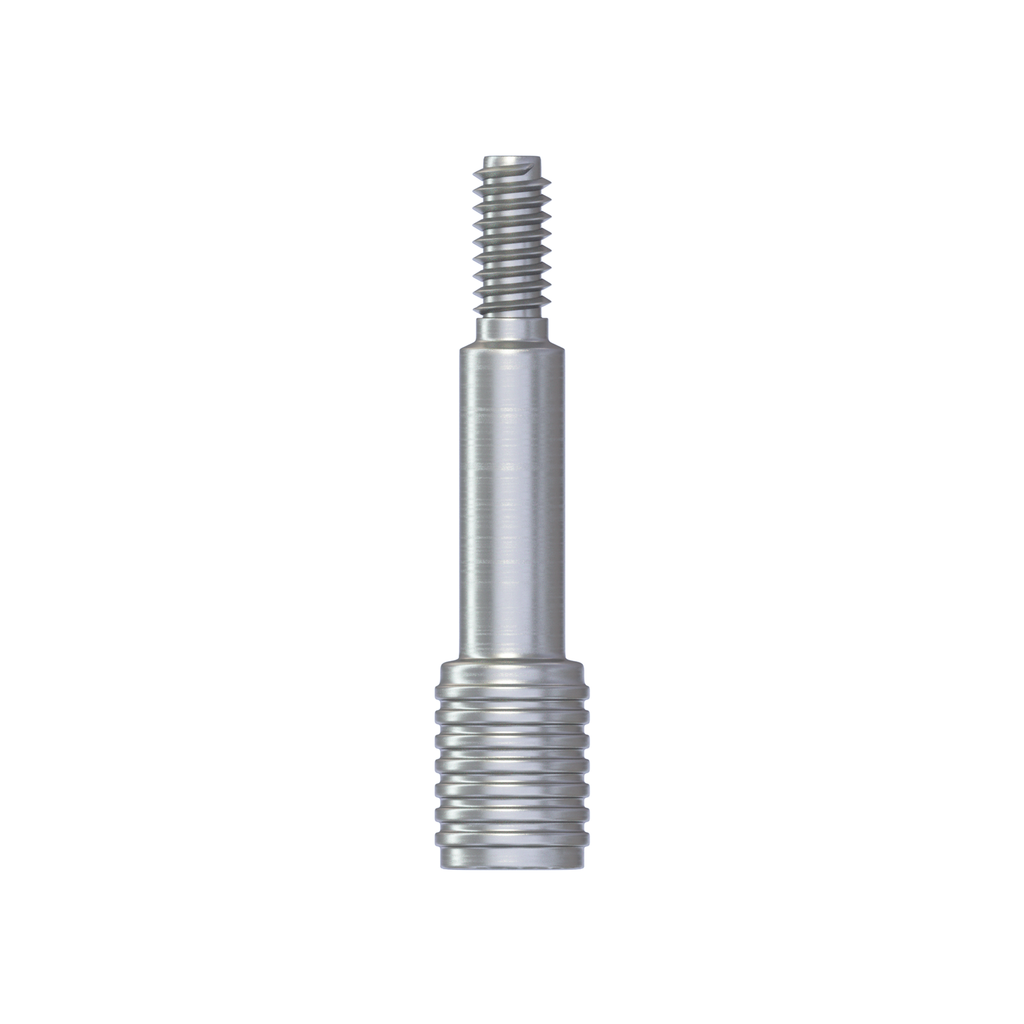

SSFTMU-K: Premium Transfer Screw Ø 2.0mm , L=11.0mm, H=14.5mm x 1

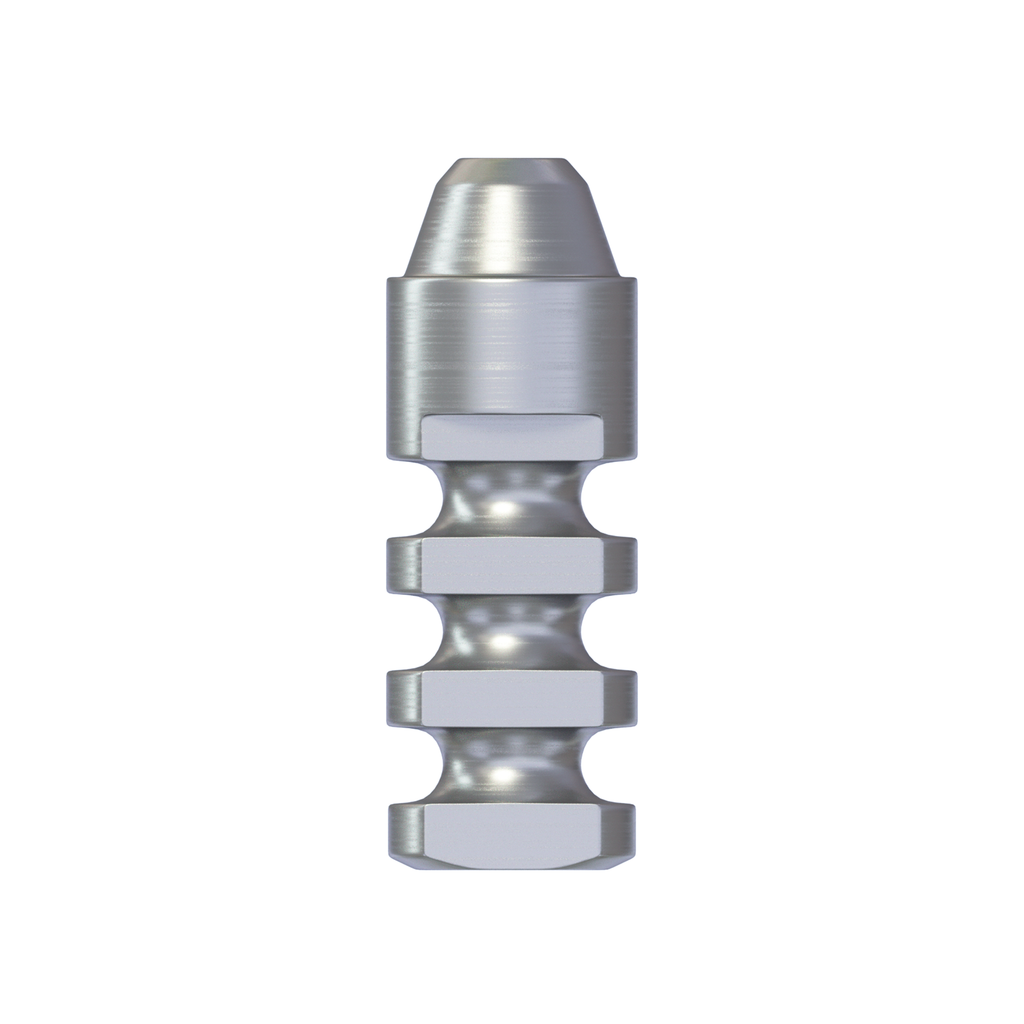

SAFMU-K: Titanium Analog Ø 4.8mm , L=7.0mm, H=13.5mm x 1

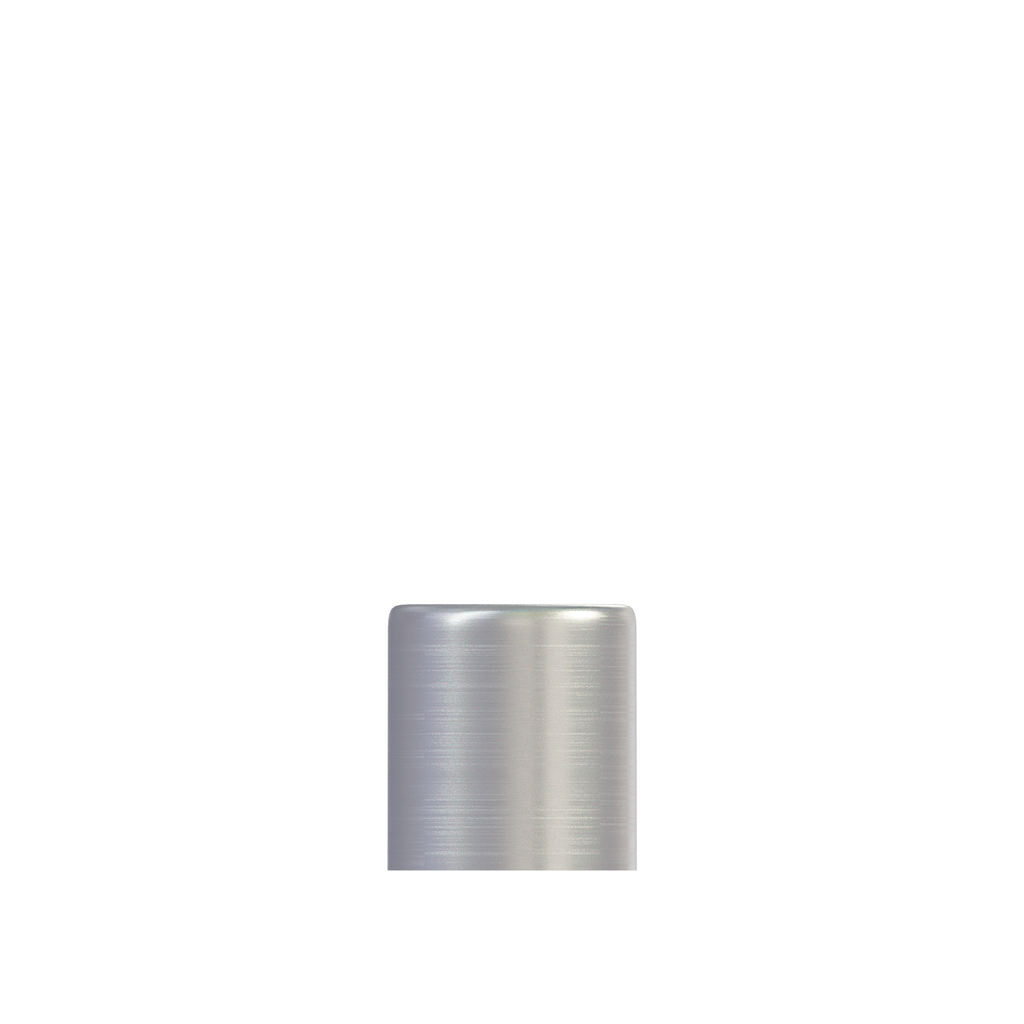

SHCFMU-K: Healing Cap Ø 4.9mm , L=2.35mm, H=5.0mm x 1

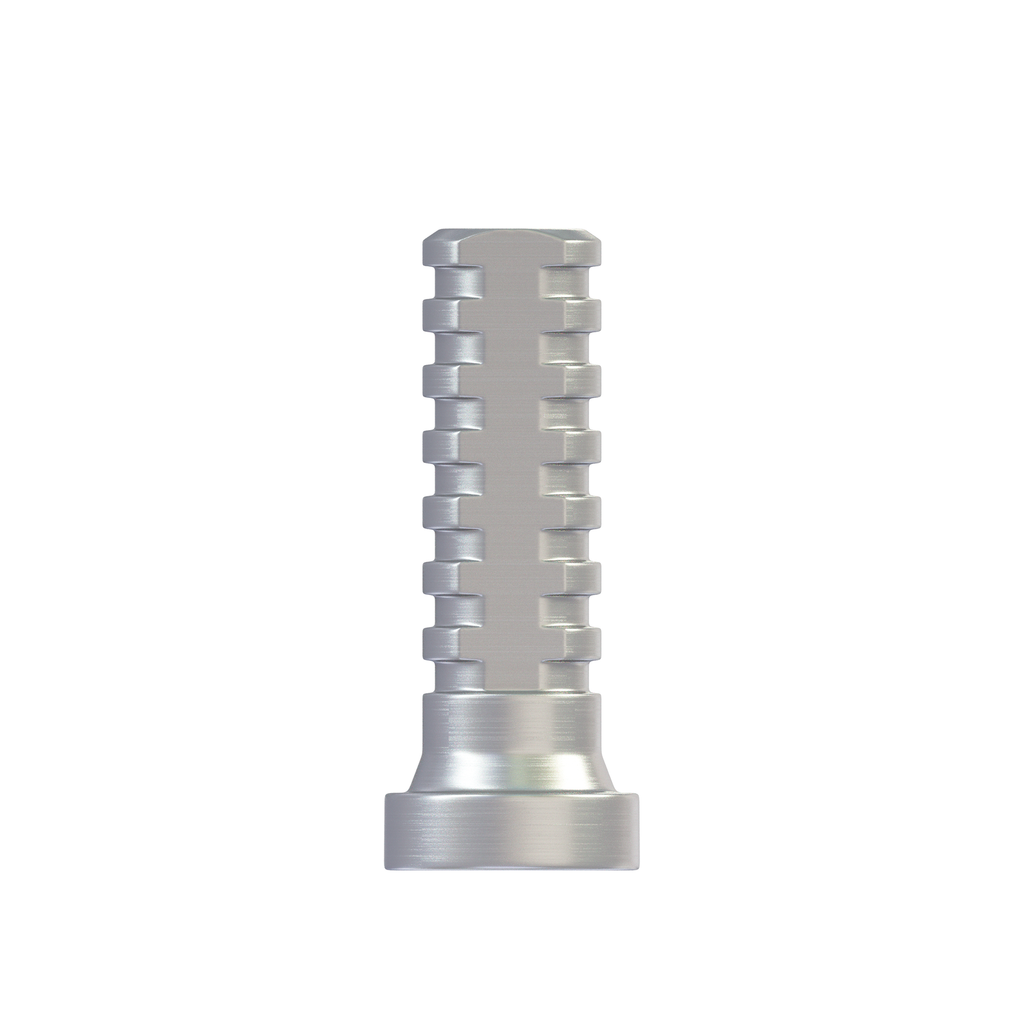

SSTFMU-K: Titanium Sleeve Abutment Ø 4.8mm , L=10.0mm, H=12.0mm x 1

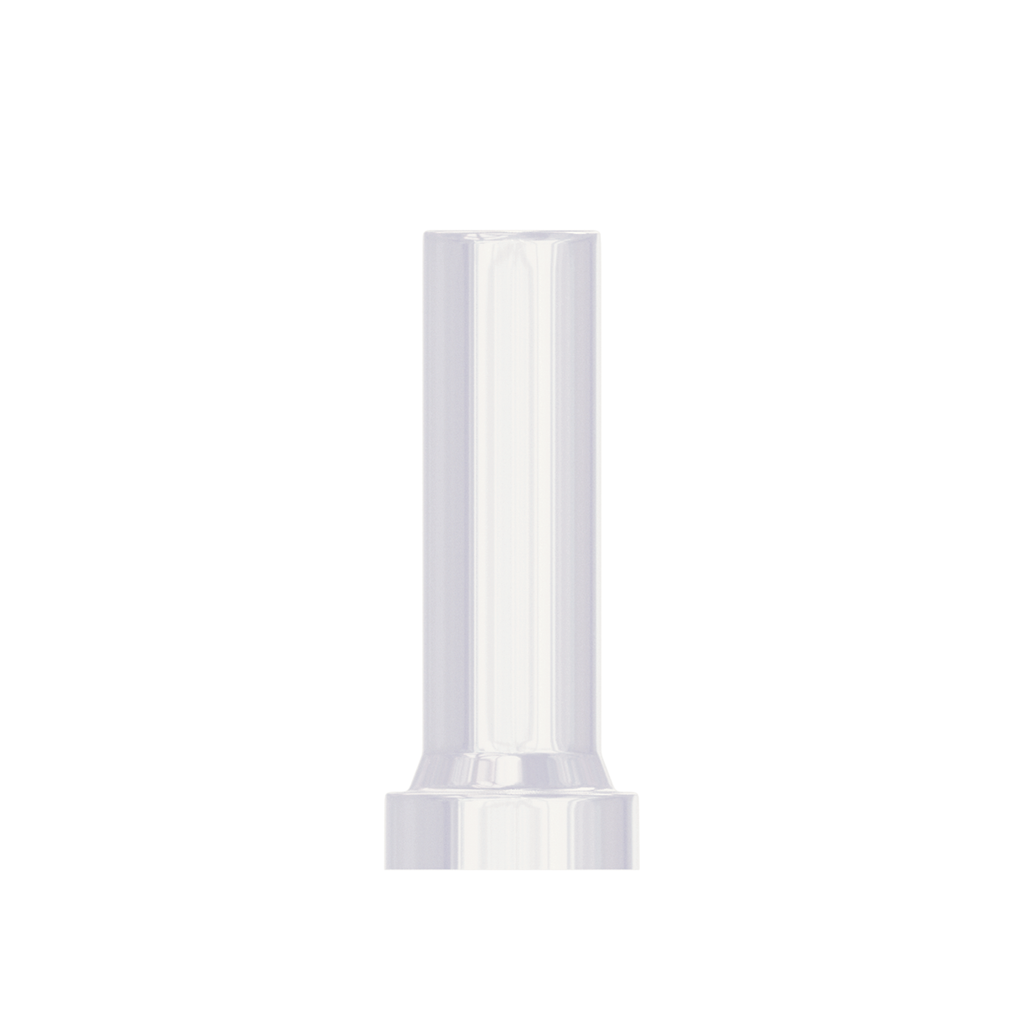

SSPFMU-K: Castable Sleeve Abutment(for Lab) Ø 4.8mm , L=10.0mm, H=12.0mm x 1
SSFMU-K: Fixation Short Screws Ø 2.0mm , L=2.6mm, H=3.9mm x 2

Indications:

Multiple teeth
Complete bridges
Fabrication of long-term/permanent restorations
All-on-4,All-on-6

Features:

Excellent biocompatibility, no risk of abruption.
Precise, non-rotational, functional.
Simple, fast, and accurate positioning.
Outstanding stability for the crowns and bridges
Superior aesthetic results.

Technical information:

Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
Regular Platform NP - Ø4.7mm / collar height 1.0-4.0mm
Implant Level Connection Conical Connection NP Ø3.5mm, compatible with: DSI Conical NP, NobelActive® NP platform Ø3.5mm
Multi Unit level Connection M1.6 Compatible with : DSI®, MIS®,

Specification

{"type":"root","children":[{"type":"paragraph","children":[{"type":"text","value":"Product type","bold":true},{"type":"text","value":": Premium MUA CC Straight Kit"}]},{"type":"paragraph","children":[{"type":"text","value":"Platform","bold":true},{"type":"text","value":": Narrow platform - Conical Connection NP Ø3.5mm"}]},{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"Implant Level Connection Conical Connection NP Ø3.5mm, compatible with","bold":true},{"type":"text","value":": DSI Conical NP, NobelActive® NP platform Ø3.5mm"}]}]},{"type":"paragraph","children":[{"type":"text","value":""}]},{"type":"paragraph","children":[{"type":"text","value":"Multi Unit level Connection M1.6 Compatible with : ","bold":true},{"type":"text","value":"DSI®, MIS®"}]},{"type":"paragraph","children":[{"type":"text","value":"Material: ","bold":true}]},{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"Titanium Ti-6Al-4V-ELI"}]},{"type":"list-item","children":[{"type":"text","value":"Stainless Steel Grade 316"}]},{"type":"list-item","children":[{"type":"text","value":"Delrin"}]}]},{"type":"paragraph","children":[{"type":"text","value":""}]},{"type":"paragraph","children":[{"type":"text","value":"Indications: ","bold":true}]},{"type":"list","listType":"unordered","children":[{"type":"list-item","children":[{"type":"text","value":"Multiple teeth"}]},{"type":"list-item","children":[{"type":"text","value":"Complete bridges"}]},{"type":"list-item","children":[{"type":"text","value":"Fabrication of long-term/permanent restorations"}]},{"type":"list-item","children":[{"type":"text","value":"All-on-4,All-on-6 "}]}]},{"type":"paragraph","children":[{"type":"text","value":""}]},{"type":"paragraph","children":[{"type":"text","value":"Country of origin: ","bold":true},{"type":"text","value":"Israel"}]}]}

Material:

["Titanium alloy Ti-6Al-4V grade 23 ELI","Acetal (Delrin®)"]

Package contents:

["1 Straight MUA + Accessories (see description)"]

Platform:

Conical Connection NP Platform Ø3.5mm
