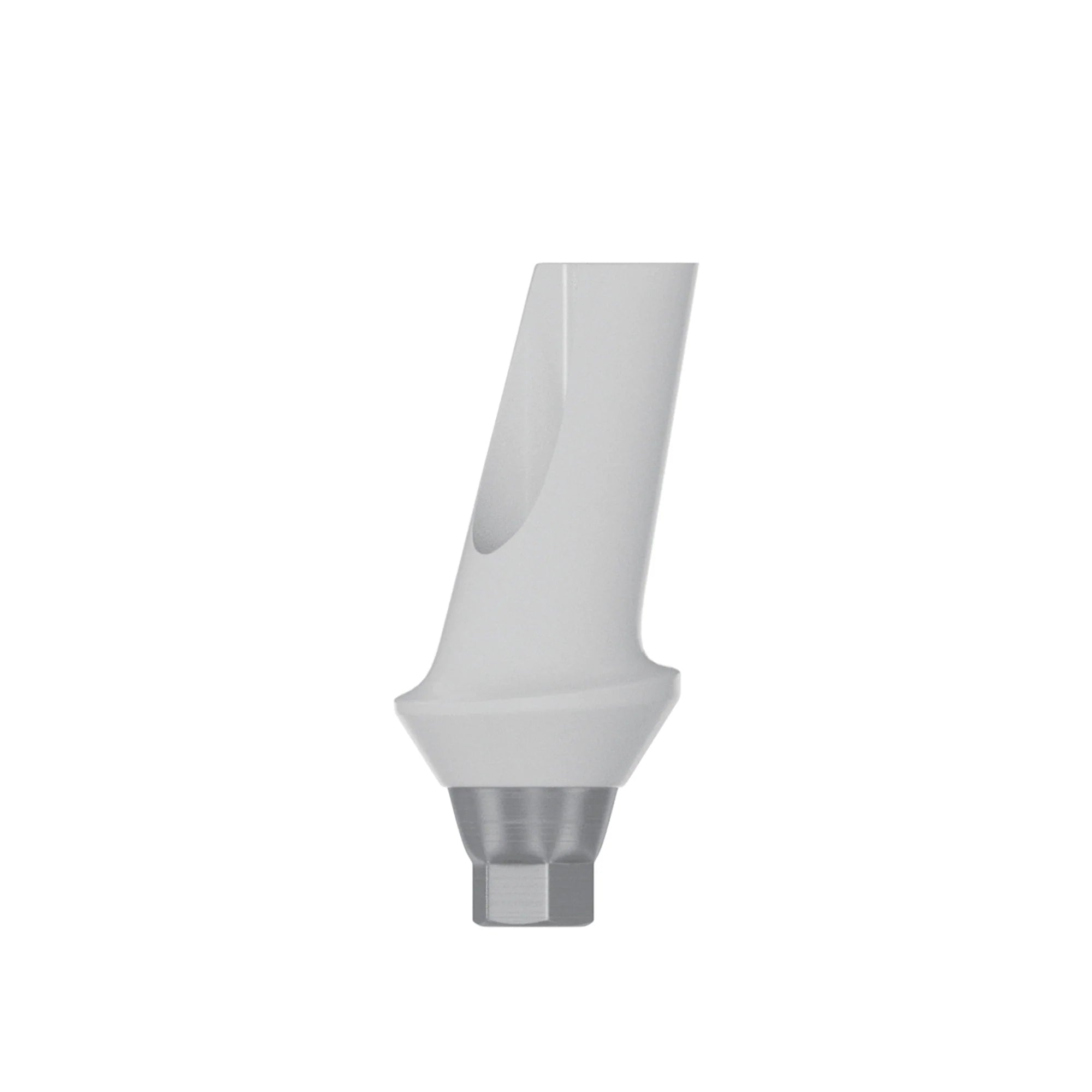

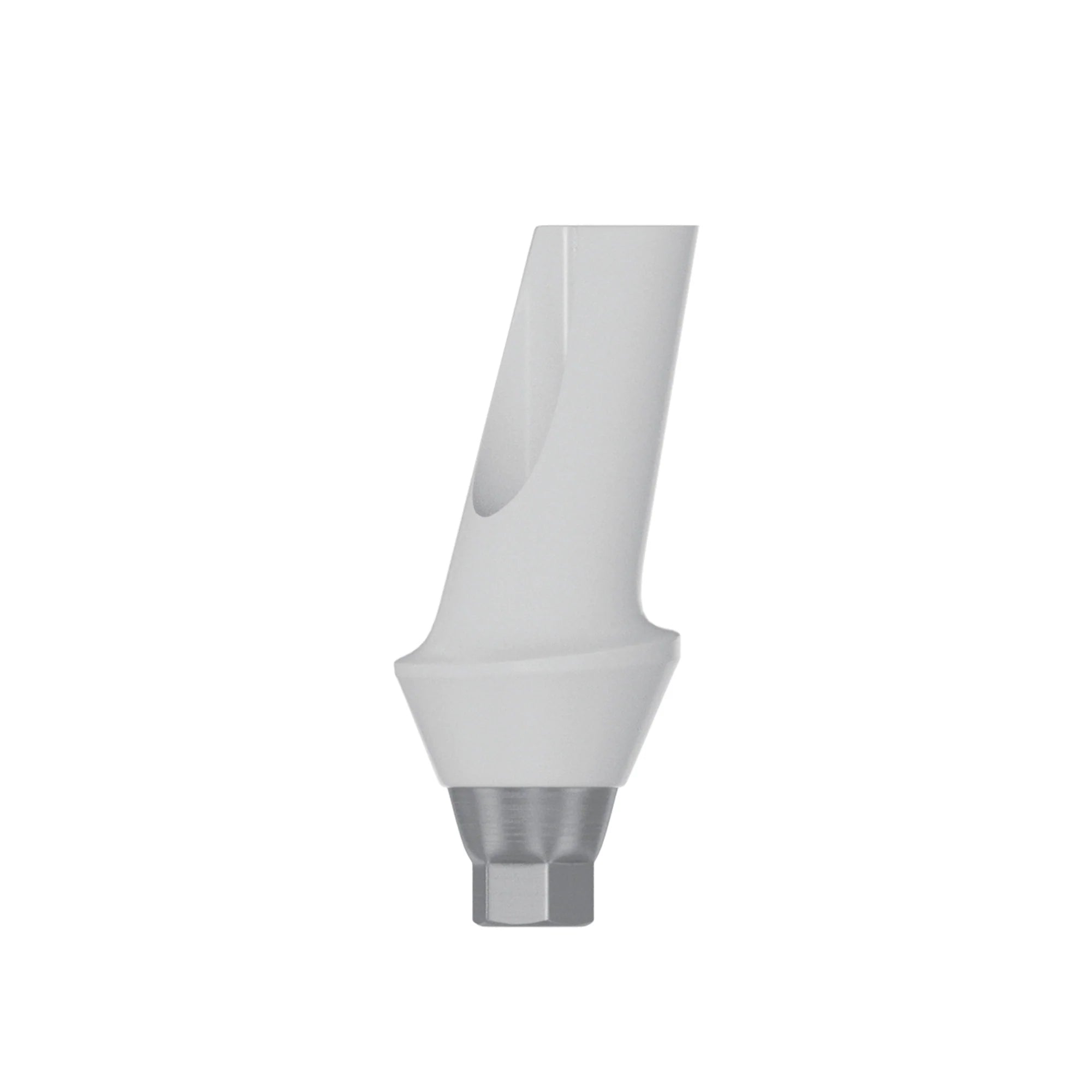

DIP Zirconia Angulated 15° Anatomic Abutment 3.8mm - Conical RP Ø4.3mm-5.0mm

The DIP Zirconia Hybrid Abutment is an excellent alternative to metal abutments, known for its exceptional strength, durability, and unique aesthetic appeal. Its pure white color provides outstanding aesthetic results and natural tooth color in restorations, unmatched by metal abutments. Constructed as a monoblock zirconium body on a titanium base, this abutment offers high resistance to intra-oral acids, ensuring long-lasting restorations and peace of mind for patients. Unlike metal abutments, zirconia abutments maintain their original pure white intensity throughout the restoration's lifespan without fading or dimming.

The angulated zirconia abutments are perfect for non-parallel implant alignment cases when different abutment angles are required for restoration parallelism.

Preferred for high-end aesthetic restorations, zirconia abutments are celebrated for their remarkable biocompatibility, lifelike color, and superb mechanical properties. Their structure offers patients superior aesthetics and comfort while being incredibly easy to work with. This combination makes zirconia abutments ideal for creating beautiful, durable restorations.

Indications:

• Single crown

• Multiple teeth

• Complete bridges

• Fabrication of long-term/permanent restorations
• For non-parallel implant alignment cases

Features:

• Excellent biocompatibility, no risk of abruption.

• Precise, non-rotational, functional.

• Simple, fast, and accurate positioning.

• Outstanding stability for the crowns and bridges

• Special collar adapts to the gums emergence profile for an easier permanent restoration

Technical information:

• Composition:

• Body - Made of Zirconium dioxide (ZrO2 )

• Base - Titanium Grade 5 (TI-6AL-4V ELI)

• Regular Platform RP - 15° angle / regular body Ø3.8mm / Collar height 1-3mm
• Fully compatible with DIP Conical RP, NobelActive® RP platform Ø4.3-5.0mm

• Titanium fixation screw included with every abutment
