What is the Zest Locator® attachment system?

The Zest Locator® is the world's most widely used implant overdenture attachment system. It consists of a titanium attachment placed on the implant and a nylon retention insert (male) housed in the denture base. The low-profile design (only 3.17mm height) and self-aligning angle correction (up to 40° between two implants) make it the gold standard for implant-retained removable overdentures.

Are DIP Dental components compatible with Zest Locator®?

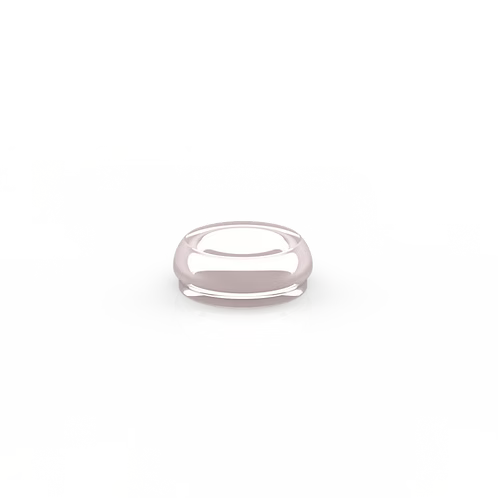

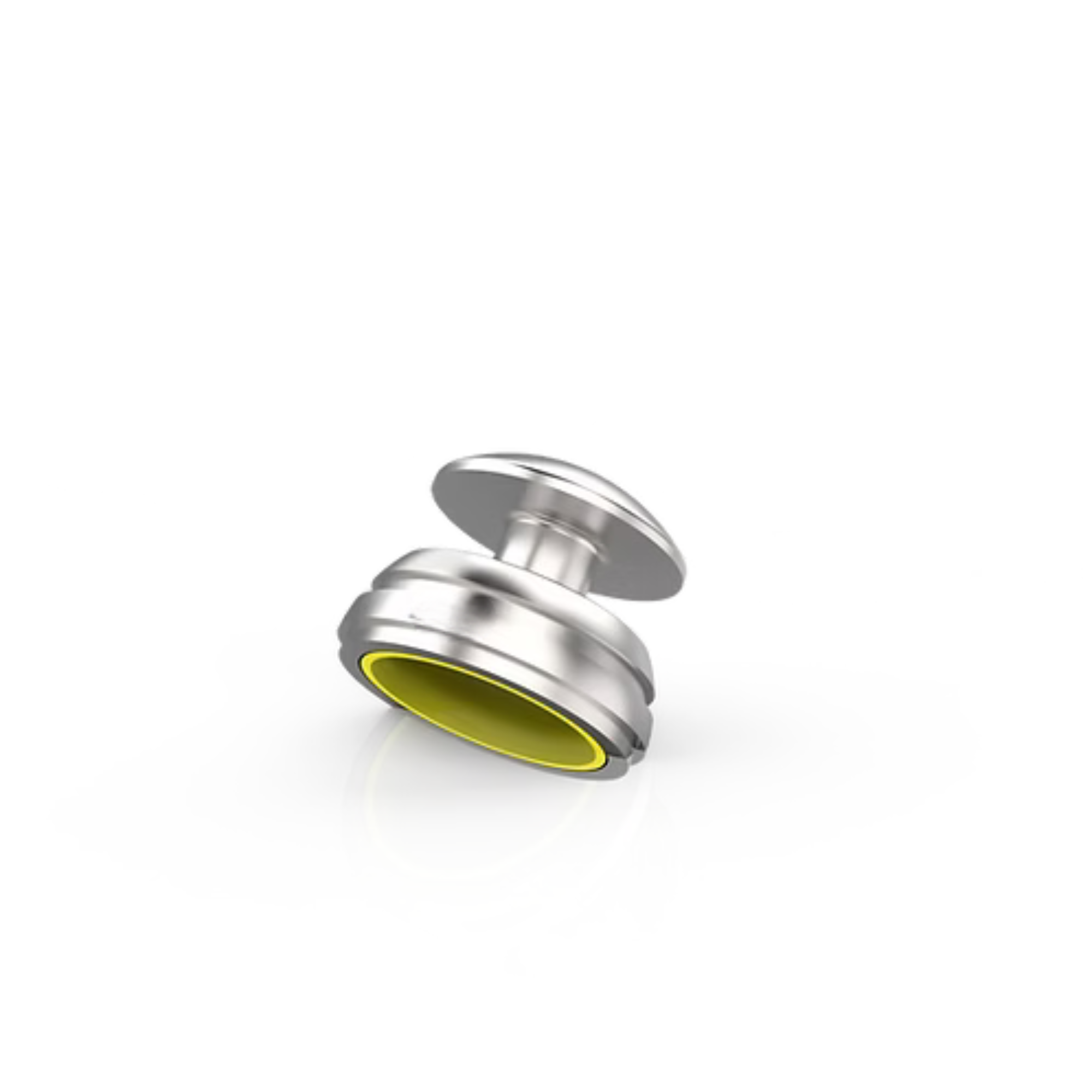

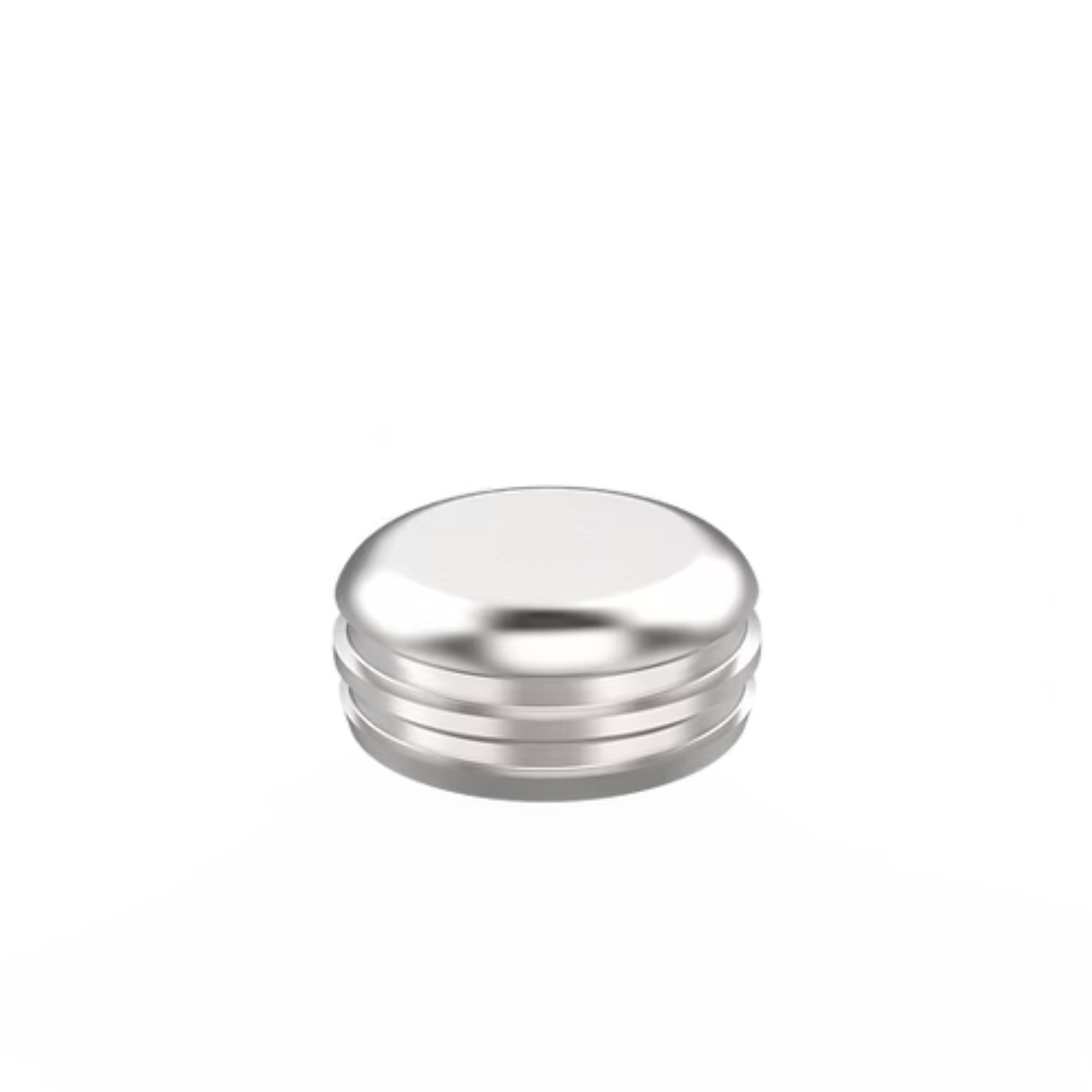

Yes. DIP Dental offers a comprehensive range of prosthetic components fully compatible with the Zest Locator® attachment system — including attachments for major implant brands such as MIS, Zimmer, MegaGen, Neodent, and more. Our catalog also includes male retention inserts (in multiple retention strengths), metal housings, and processing caps. All components are precision-machined to match the original Locator® geometry, ensuring reliable fit and retention.

What retention insert colors and strengths are available?

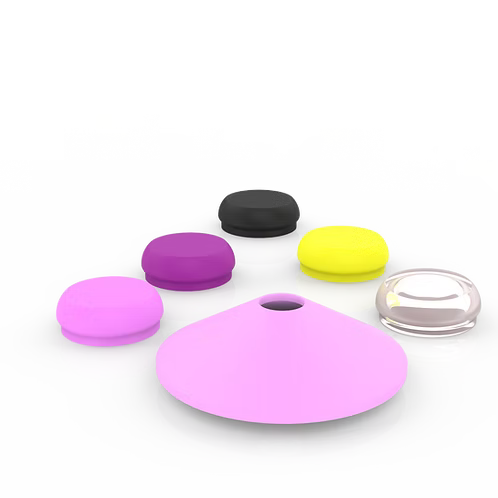

Locator® compatible retention inserts are available in multiple retention strengths: Blue (light, ~1.5 lbs), Pink (medium, ~3 lbs), Clear (extra light, for tight cases), and Red (heavy, ~5 lbs). The color-coded system allows clinicians to customize retention force based on patient dexterity, denture design, and the number of implants. Retention inserts can be replaced chairside without replacing the attachment.

What is the difference between Locator® and Locator R-Tx®?

The original Locator® uses a two-part system with a metal housing and replaceable nylon insert. Locator R-Tx® is an updated design with a threaded titanium cap for easier chairside insert replacement without special tools. DIP Dental offers compatible components for both systems, making it easy to maintain existing patient cases regardless of which version was originally placed.

When should I use Locator® attachments instead of ball attachments?

Locator® attachments are preferred when: implants are not perfectly parallel (up to 40° combined divergence), patient dexterity is a concern (easier insertion/removal), lower profile is required, or when long-term maintenance simplicity is a priority. Ball attachments may be preferred in single-implant cases or when maximum retention force is needed with a simpler component design.

Filters

В наличии
Нет в наличии

Zest Locator® Compatible

9 products

Showing 1 - 9 of 9 products

Zest Locator® Compatible Overdenture Attachments — For Implant-Supported Removable Prosthetics.

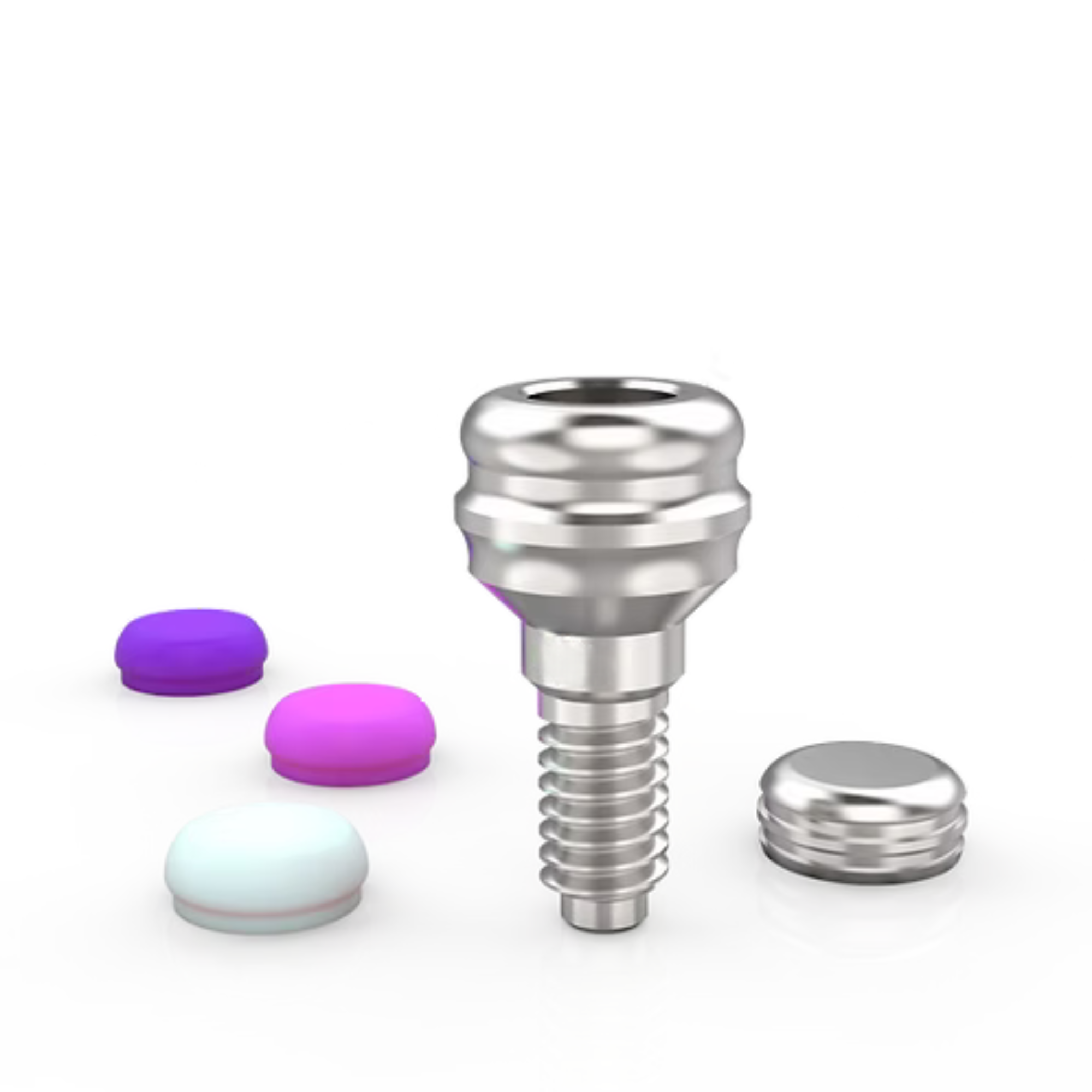

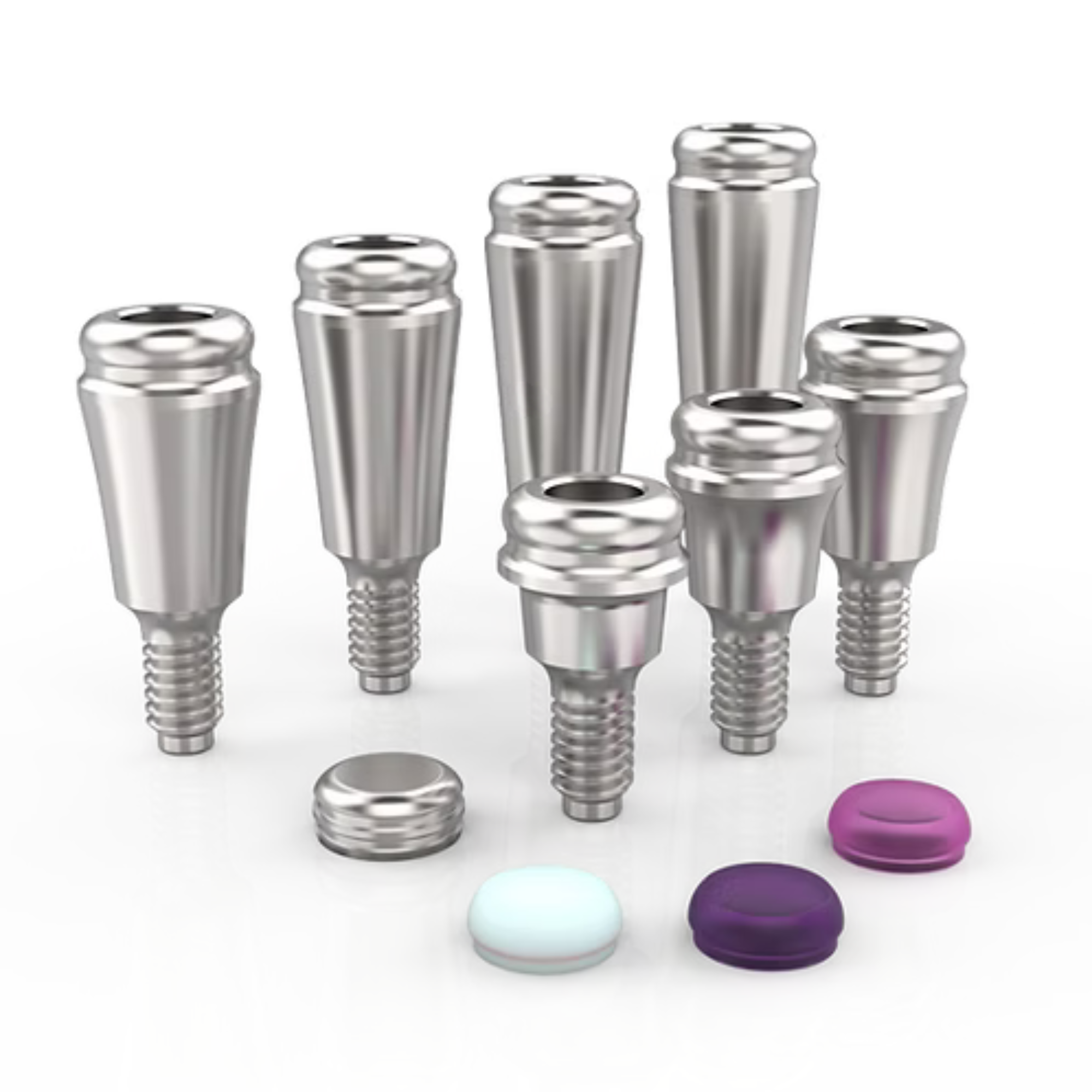

Locator® attachments are the gold standard in implant-retained overdenture systems — offering exceptional retention, angular correction capability, and easy chairside replacement of inserts. DIP Dental offers straight Locator®-compatible overdenture abutment sets compatible with leading implant systems, covering a wide range of heights for every clinical scenario.

Available Compatible Systems:

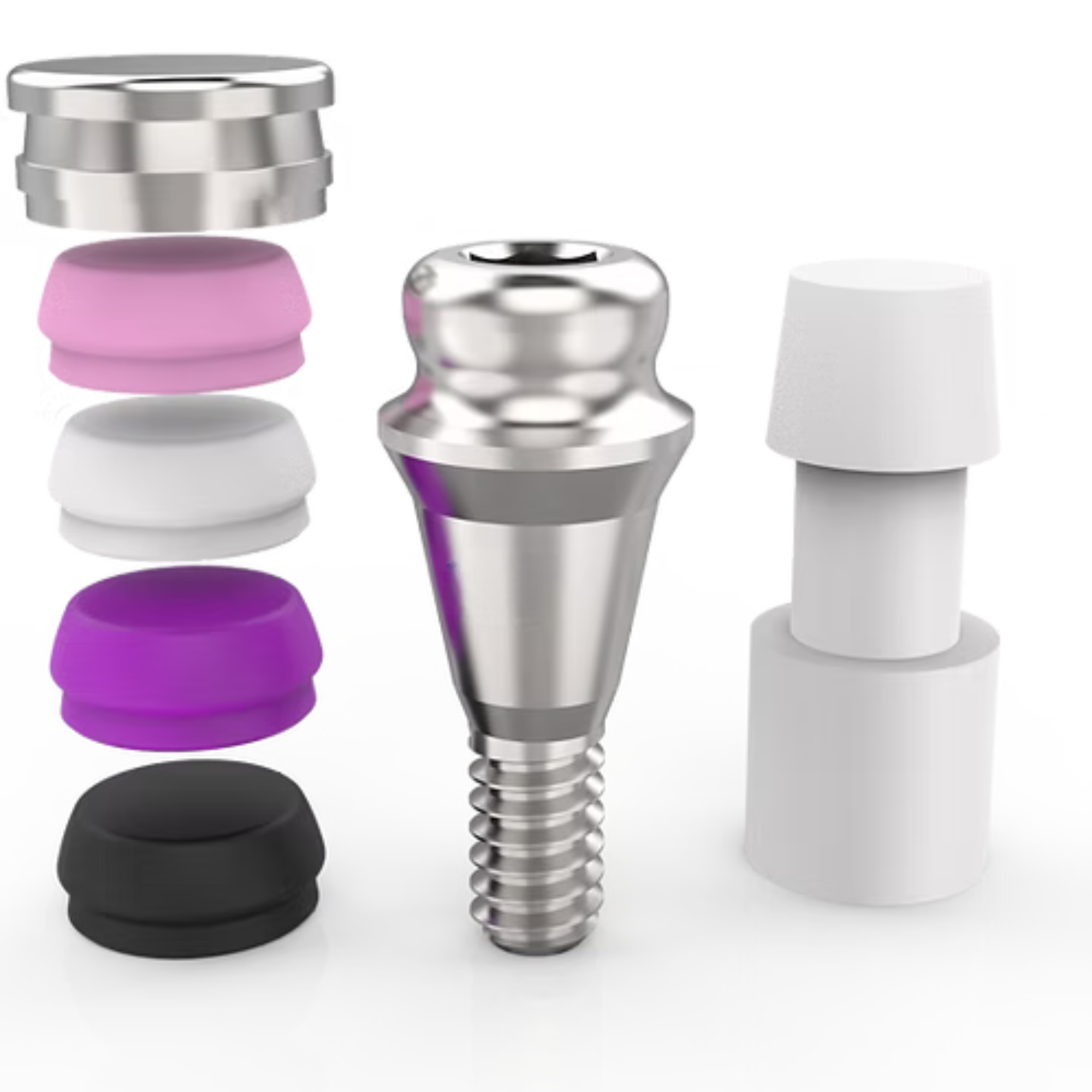

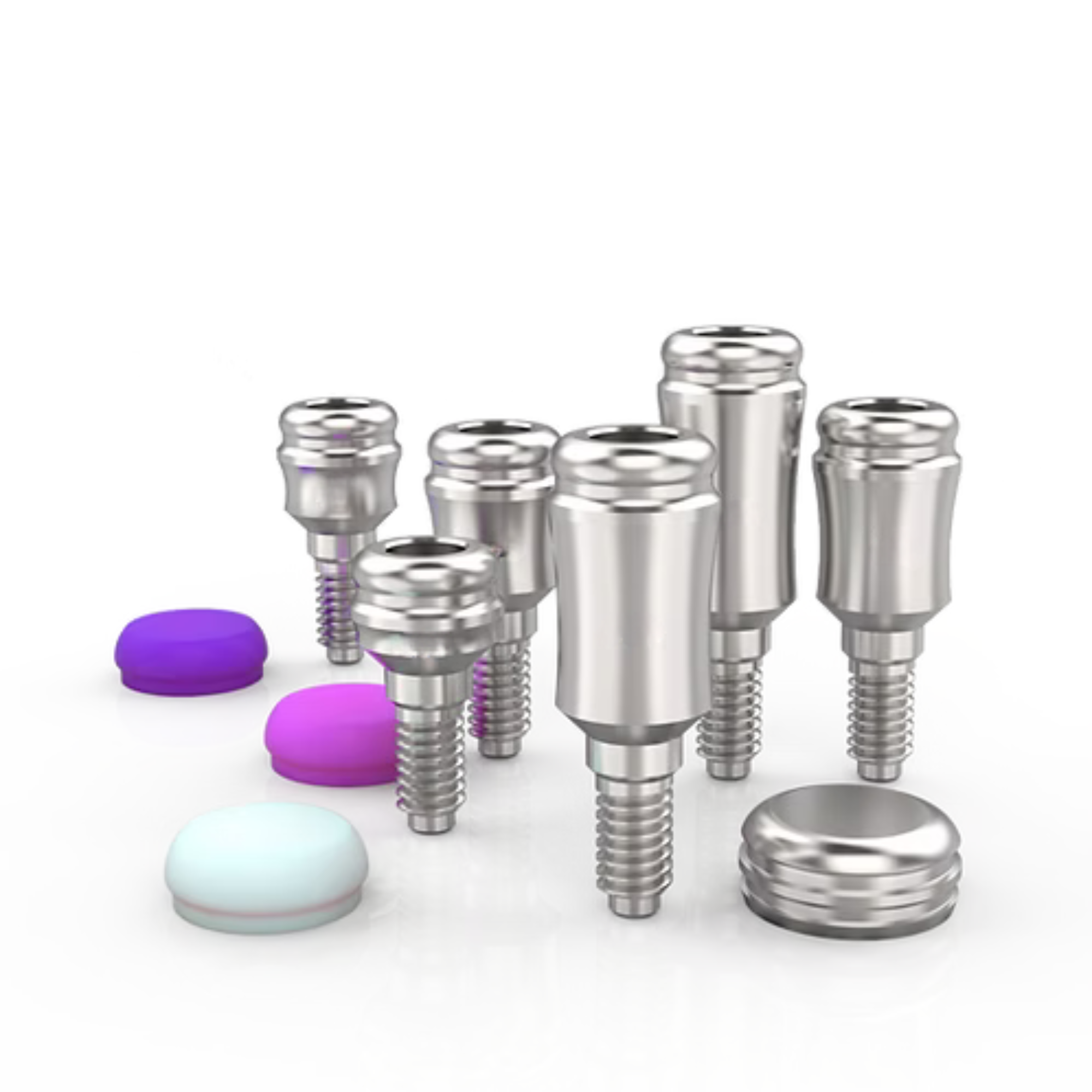

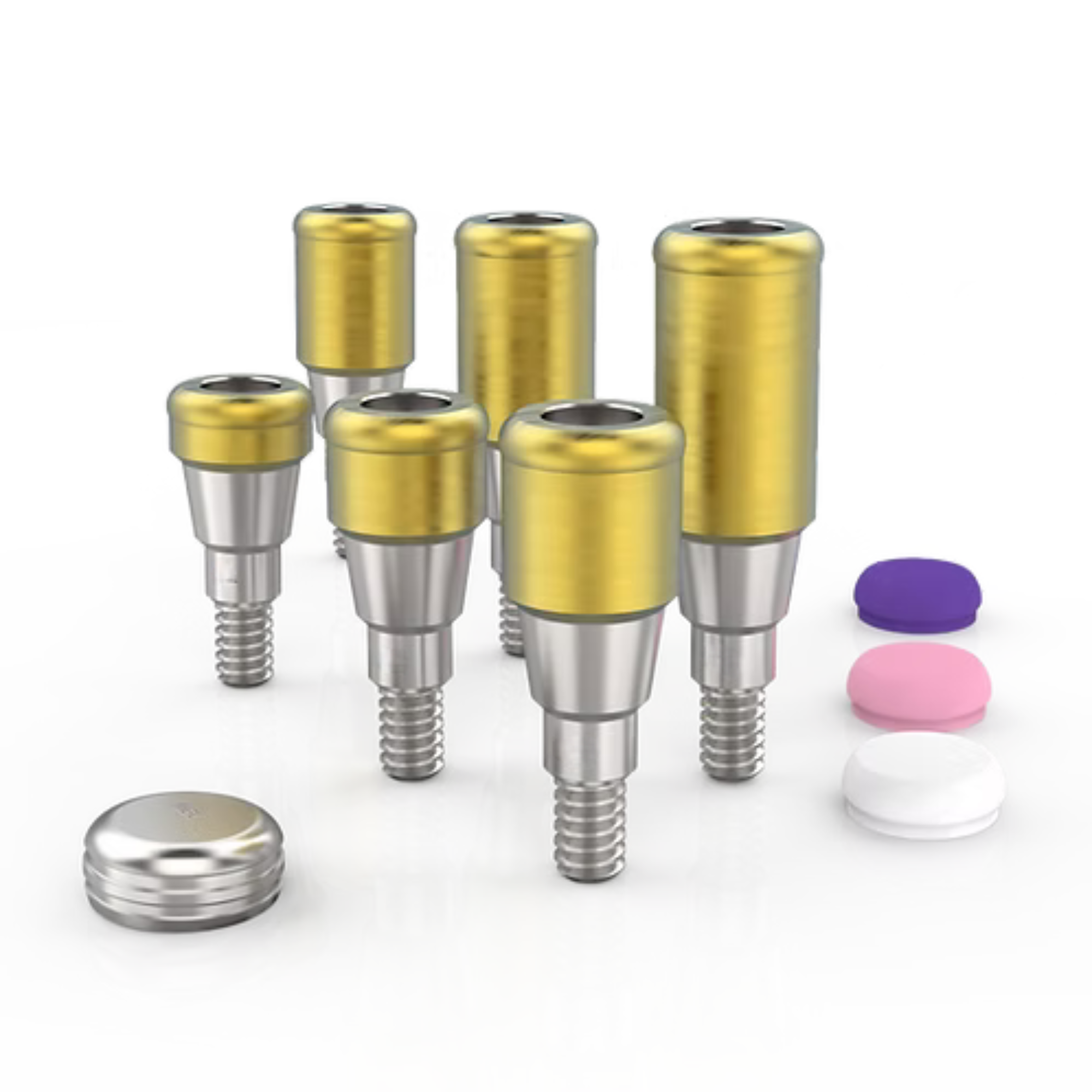

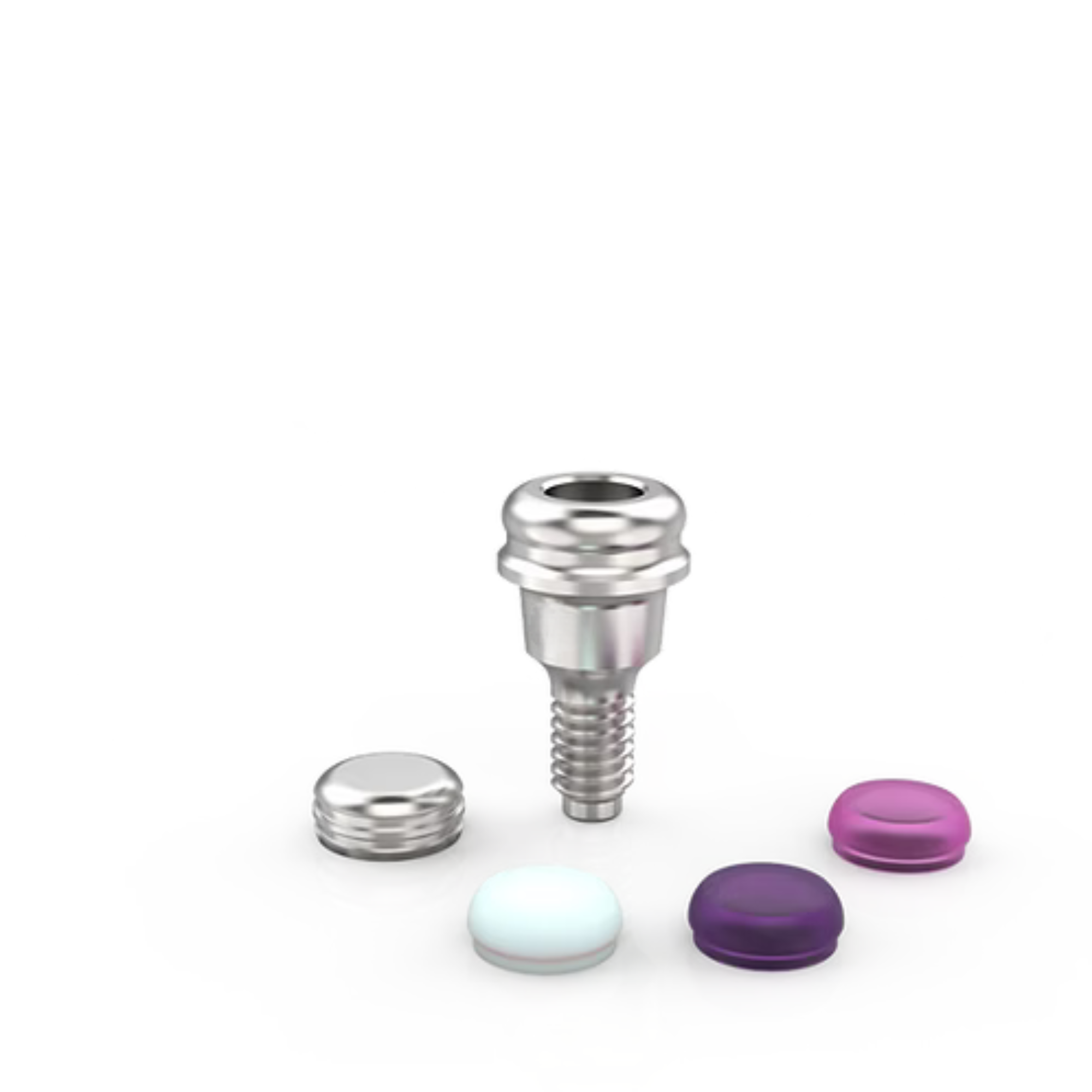

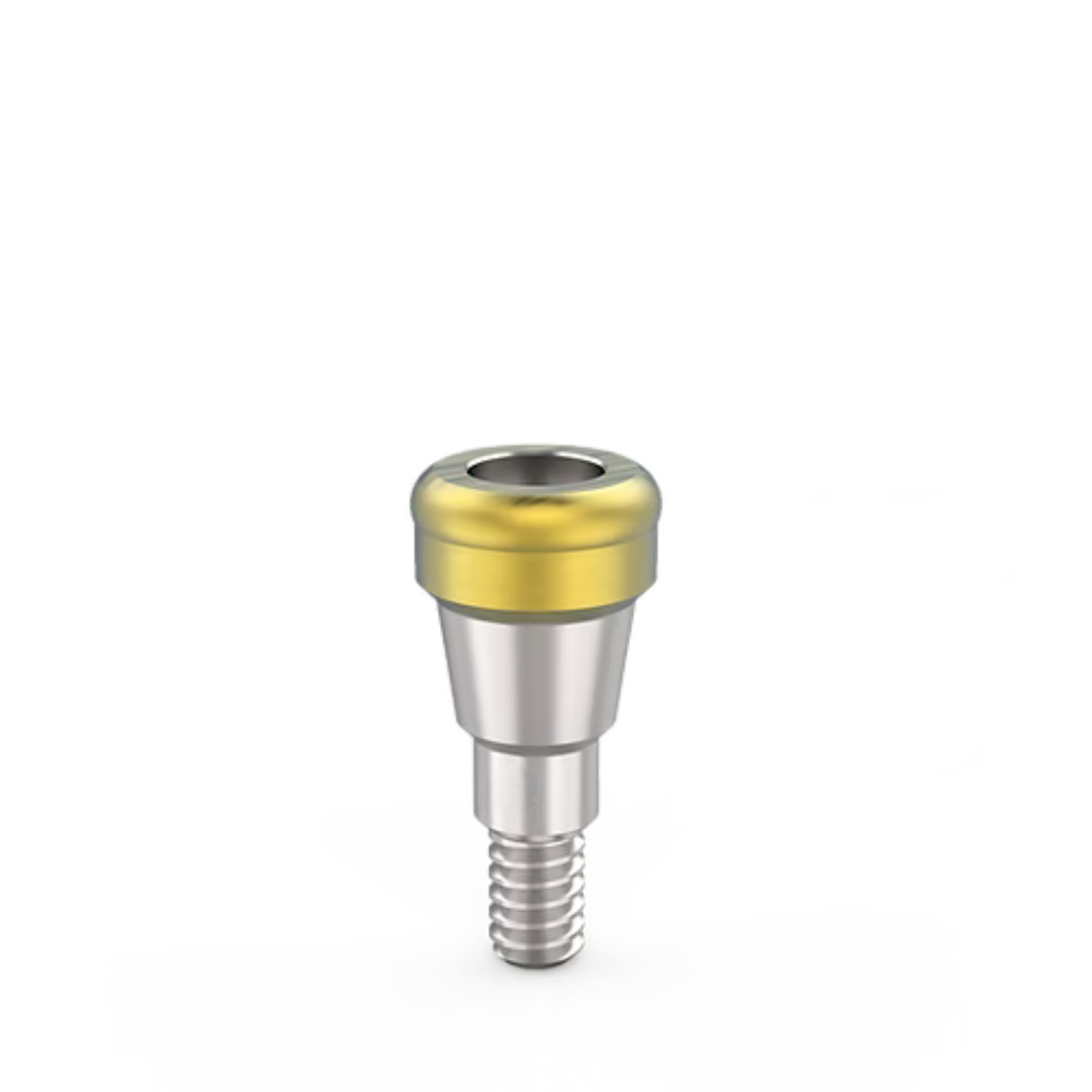

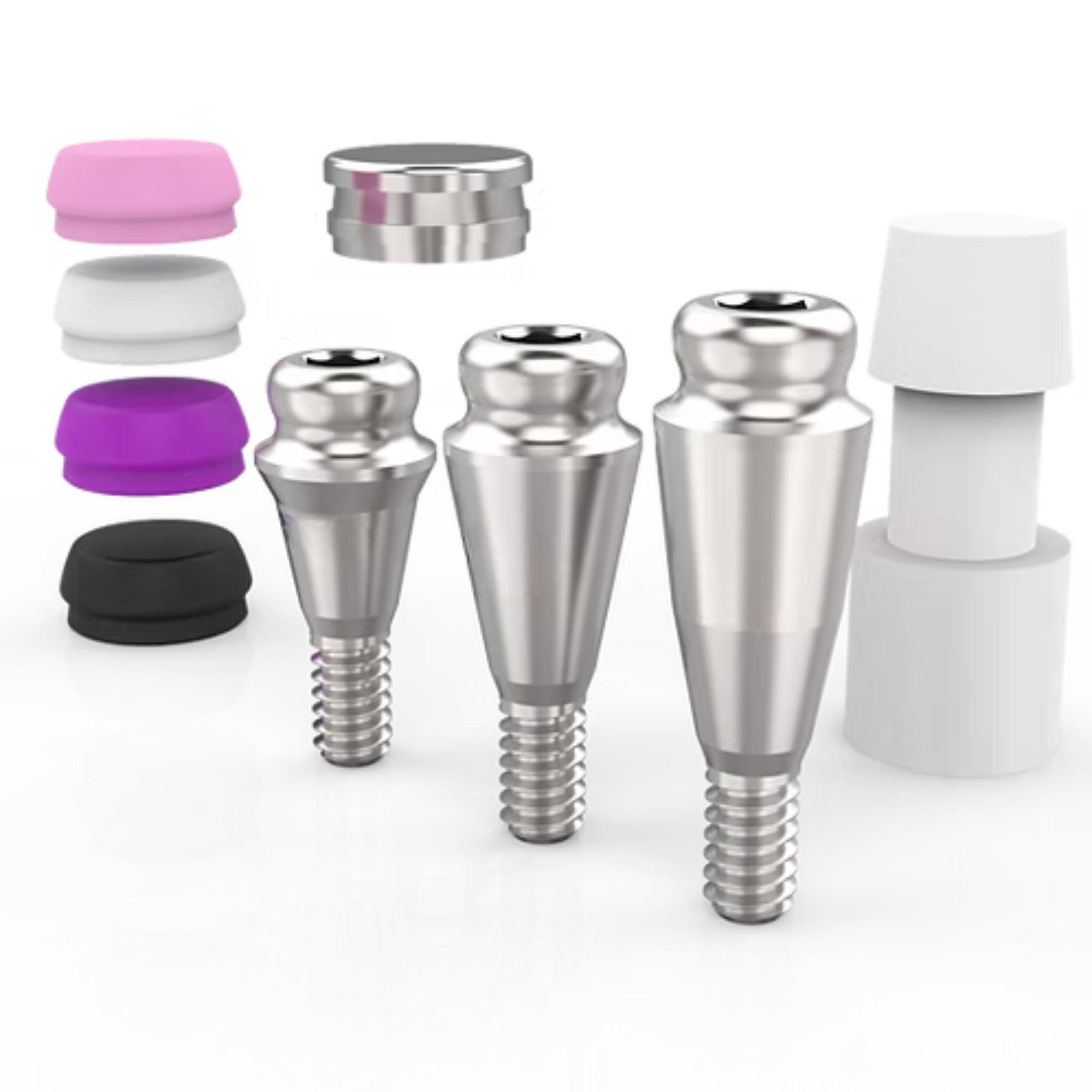

Neodent GM®, MegaGen AnyRidge®, MegaGen Mini, Zimmer®

Can't find the system or height you need? Our website reflects only part of what we carry. We have access to a large global inventory — if you don't see what you're looking for, contact us and we'll source or produce the exact component you need.

Free shipping available. Competitive pricing for clinics and labs.
