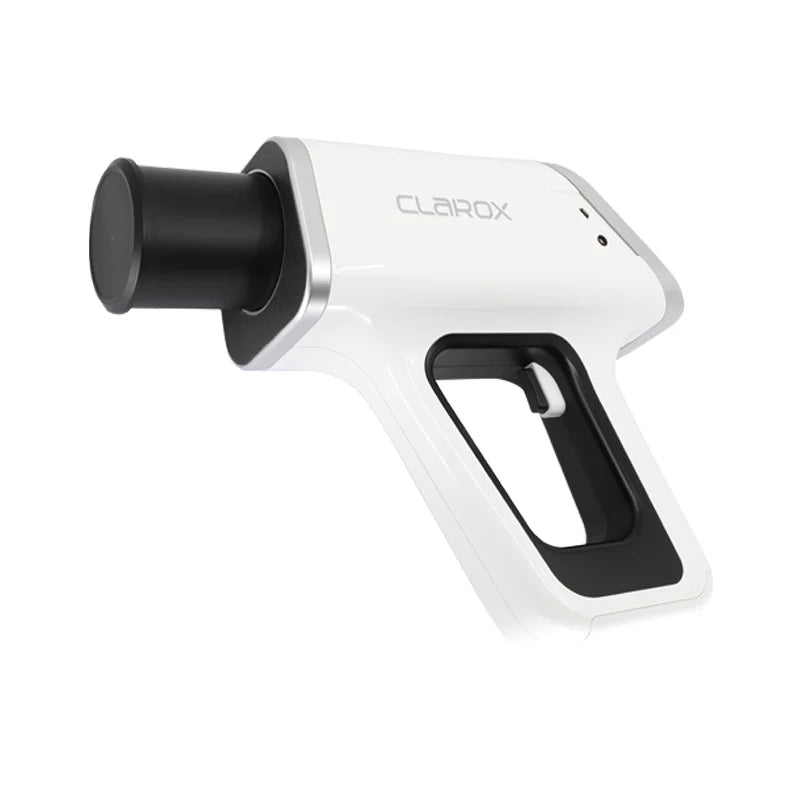

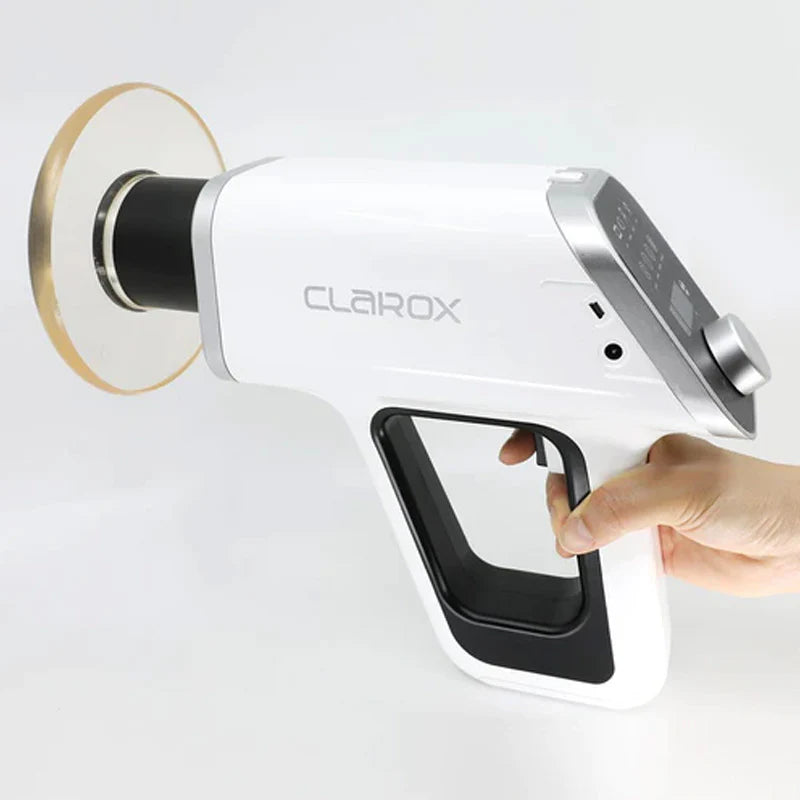

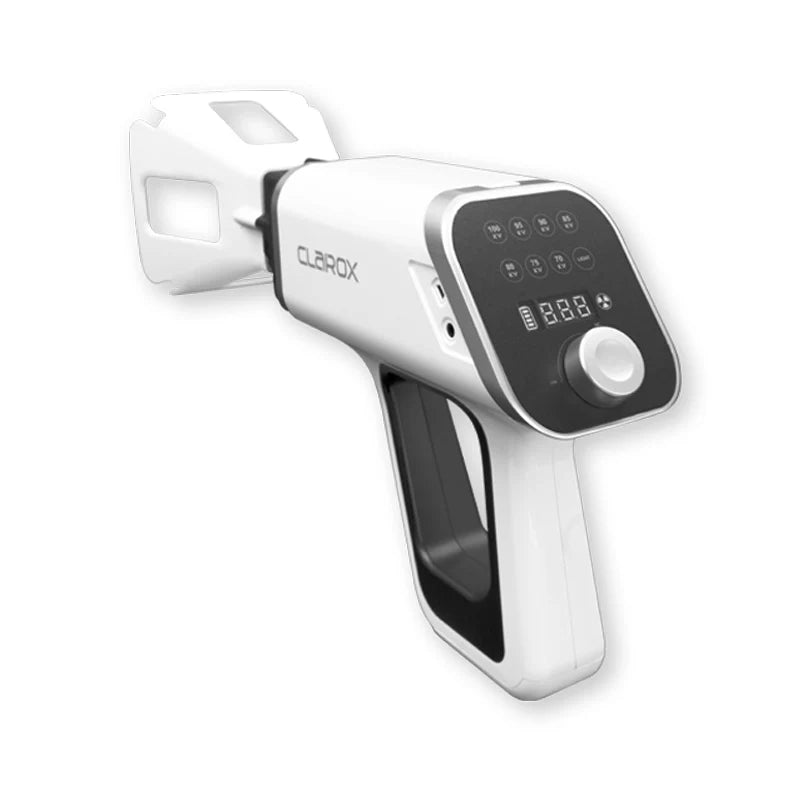

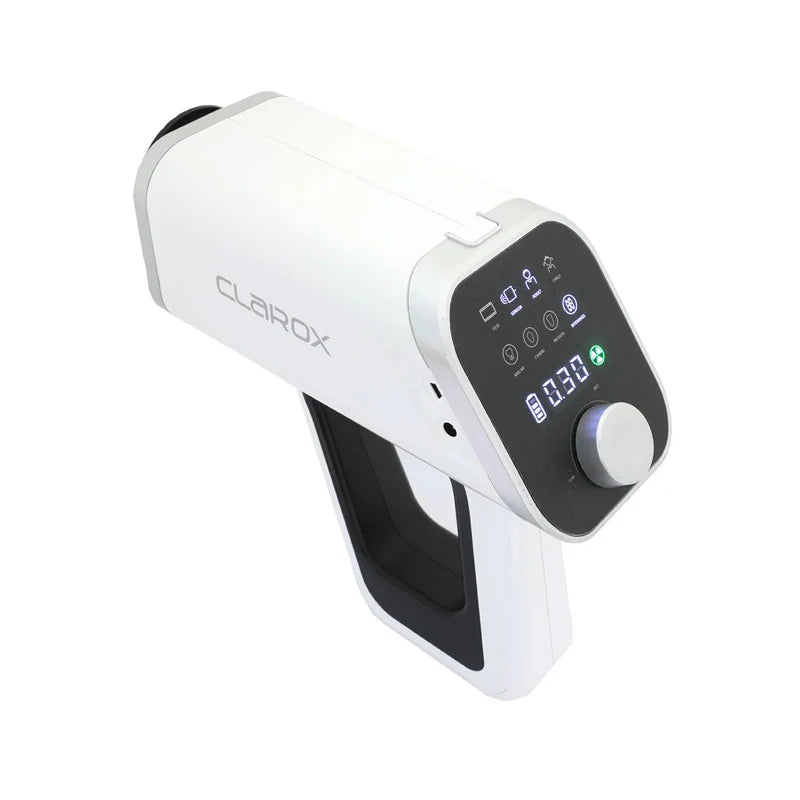

The CLAROX VX-30 is a cutting-edge innovation in modern dental radiography. Designed for comfort, safety, and superior imaging, this portable device is built from advanced carbon nanopolymer materials—completely lead-free—making it safer for both patients and practitioners.
Thanks to its smart digital system, the CLAROX VX-30 delivers outstanding image quality and ease of use. It features a lightweight, ergonomic design that reduces strain on the wrist, weighing only 1.5 kg. A unique internal shielding system protects the user from radiation during operation.
With the capability to capture up to 800 images on a single battery charge, this device is perfect for high-efficiency practices. It includes both internal and external protective screens against radiation, and a built-in smart gyroscope automatically adjusts the tilt angle for optimal imaging.
The CLAROX VX-30 is the world’s first and only portable X-ray unit to utilize Carbon Nano Tube (CNT) technology for its radiation source—offering unmatched safety, lightweight handling, and consistently sharp image resolution.
Benefits:
- Exclusive Carbon Nano Tube (CNT) Technology – The only device of its kind using CNT for safe, sharp imaging.
- Ultra-lightweight – Weighs just 1.5 kg, ideal for one-handed operation and reduced wrist fatigue.

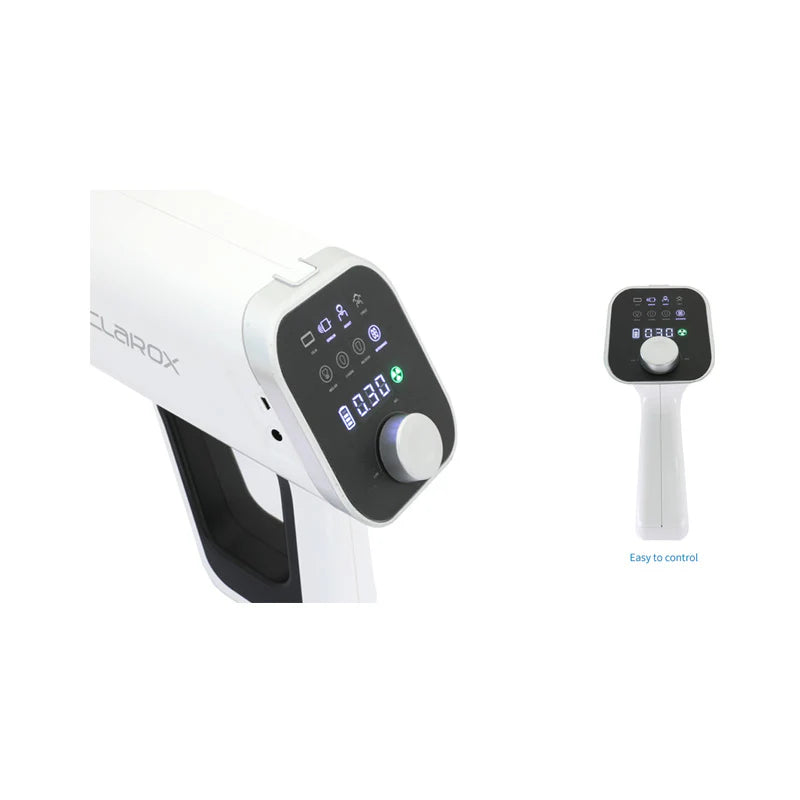

- All-in-one digital touch screen – Smart display simplifies control with all functions on a single panel.
- Dual Output – Compatible with both traditional films and digital sensor systems.
- Fast and simple operation – Adjustable exposure time with adult/child mode selection.
- Smart tilt adjustment – Built-in gyroscope maintains correct tube angle and exposure duration.
- Long-lasting performance – Up to 800 images per battery charge, and a minimum of 150,000 exposures before tube replacement.
- Secure usage – Lock/unlock features prevent accidental misoperation.
- Radiation safety – Internal shielding and dual screens for optimal protection.
Technical Information:
| Specification |
Details |
| Input Power (AC/DC Adapter) |
100-240 VAC, 50/60Hz, 0.4A |
| Output Power (Adapter) |
25.5 VDC, 0.9A |
| Battery |
22.2 VDC, 1460 mAh (Rechargeable) |
| X-ray Tube Voltage |
70 kV (fixed) |
| X-ray Tube Current |
2.0 mA (fixed) |
| Exposure Time Range |
0.12 – 1.2 seconds |
| Focal Spot Size |
0.4 mm (IEC 60336) |
| Inherent Filtration |
2.1 mm Al equivalent |
| Anode Angle |
12.5° |
| Output Power |
200W |
| Device Dimensions (mm) |
360 x 100 x 253 |
| Main Unit Weight |
1.5 kg |
