Descripción
DSI Implant Removal Kit is designed specifically for the extraction of broken, ill-fit, or misplaced implants. This is not an invasive solution without the need for surgical intervention. The procedure is fast, reliable, and not traumatic for the patient.

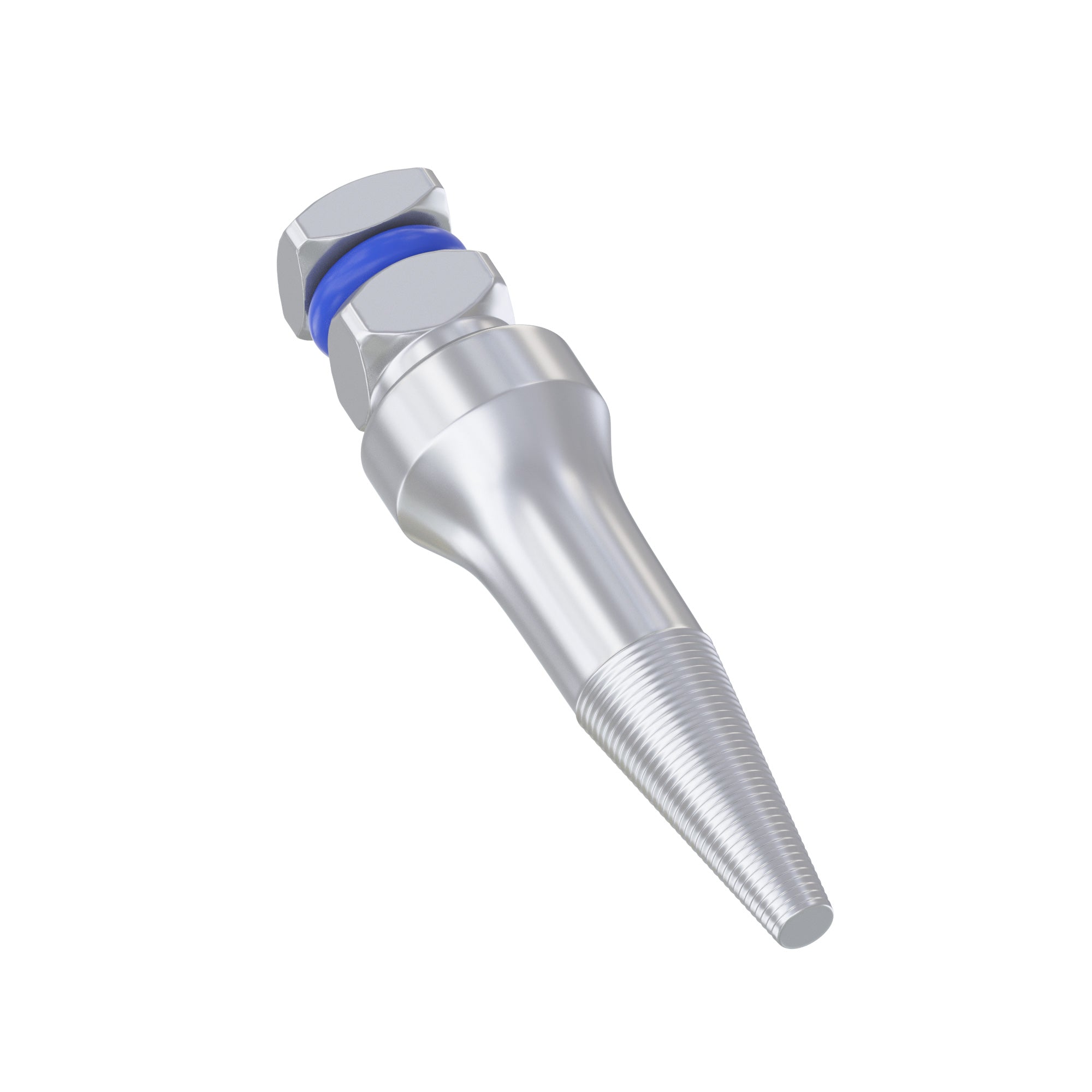

The kit includes extraction drills that are able to fit most of the platforms and implant sizes available on the dental market. The tapered body of the removal drill tools engages with the internal threads of the implant and allows easy and fast removal on any implant, including the ones that are already osseointegrated into a bone structure.

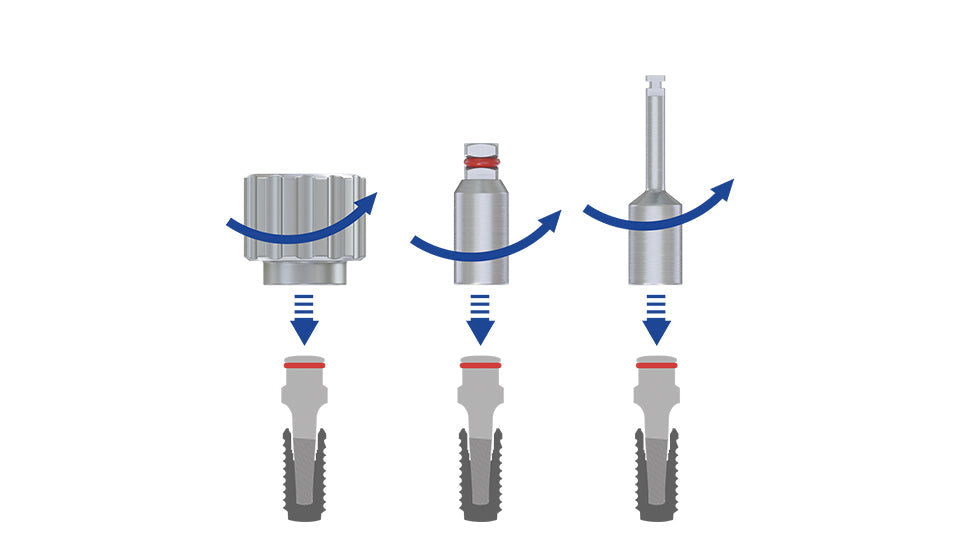

The drills can be used with a designated ratchet located in the kit, or hand adapter, or can be used with any contra-angle handpiece using the special latch-type RA connection adapter.
Indications:
- Removal of failed, misplaced, or broken implants.
- Forward engagement with the implant inner thread without surgical intervention.
Features & Benefits:
- Easy and fast removal on any implant, including the ones that are already osseointegrated into a bone structure
- No bone damage or serious trauma for patients
- No need for surgical intervention, trephine drills, or additional units
- Applicable for a large variety of implant types, and diameters
- Removes failed implants without compromising surrounding bone or damaging neighboring structures
- Fast, reliable, and cost-effective solution
- Can be used with a ratchet, hand adapter, or with a contra-angle handpiece
Technical information:
- Material: Stainless steel
- External device connection type: Ratchet square Ø4.0mm
- Additional adapters: Manual adapter and Latch-type RA connection adapter
- Length of the removal units: 22mm
- Autoclavable and reusable
Compatibility:
- FRD-01: Used for implants with diameters between 3.5-4.5mm
- FRD-02: Used for implants with a diameter larger than 4.5mm
- FRD-03: Used for implants with a diameter smaller than 3.5mm

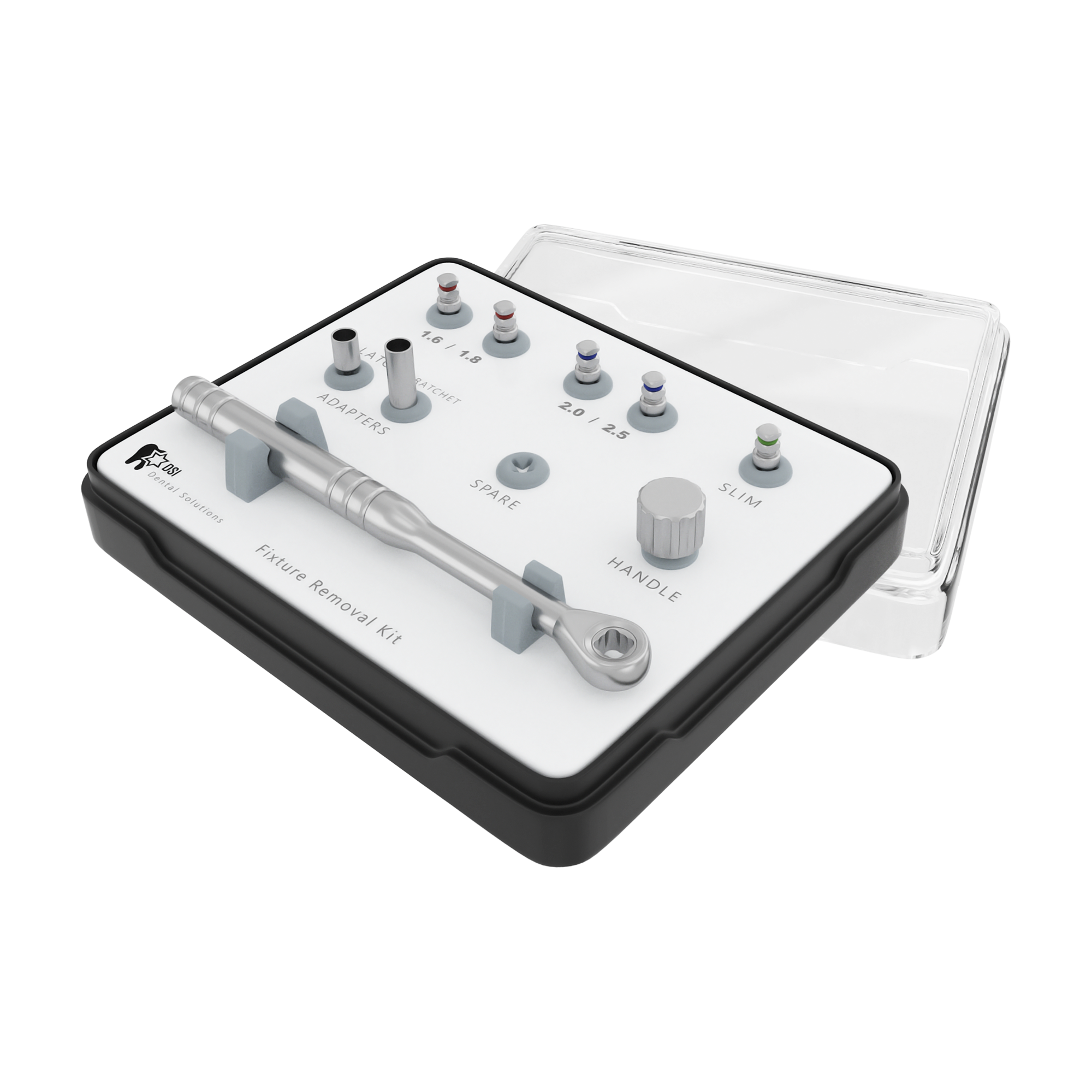

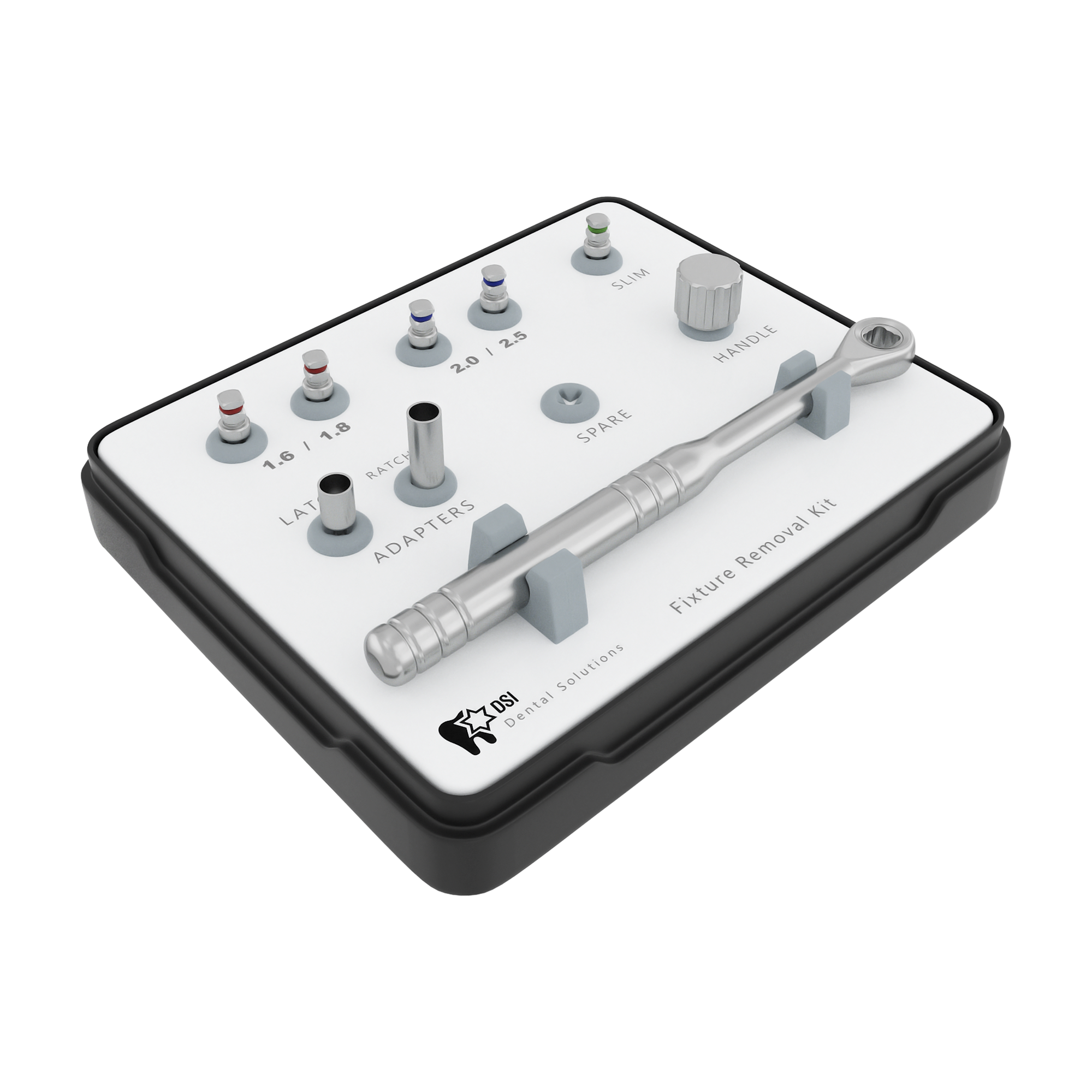

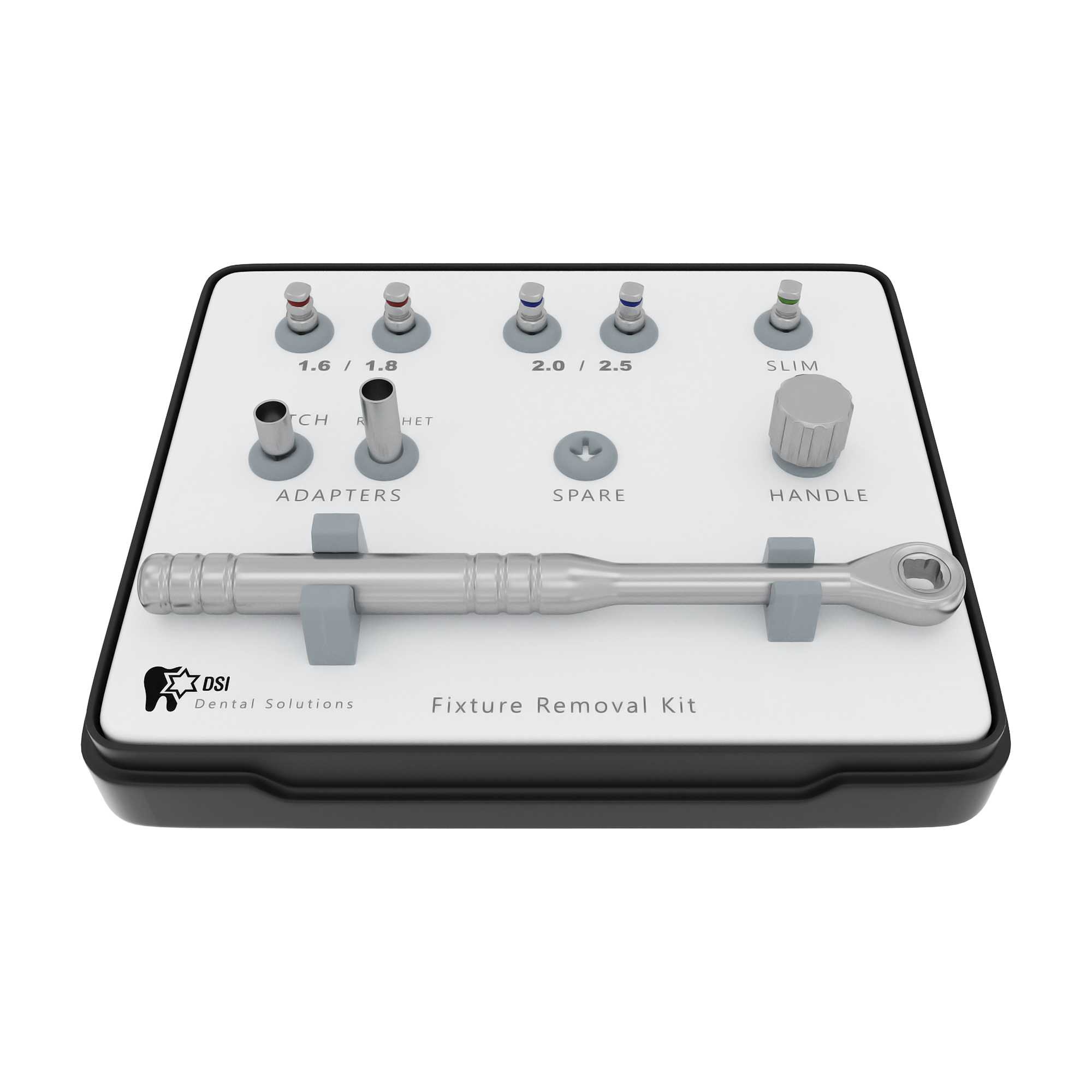

The kit includes all the following items:

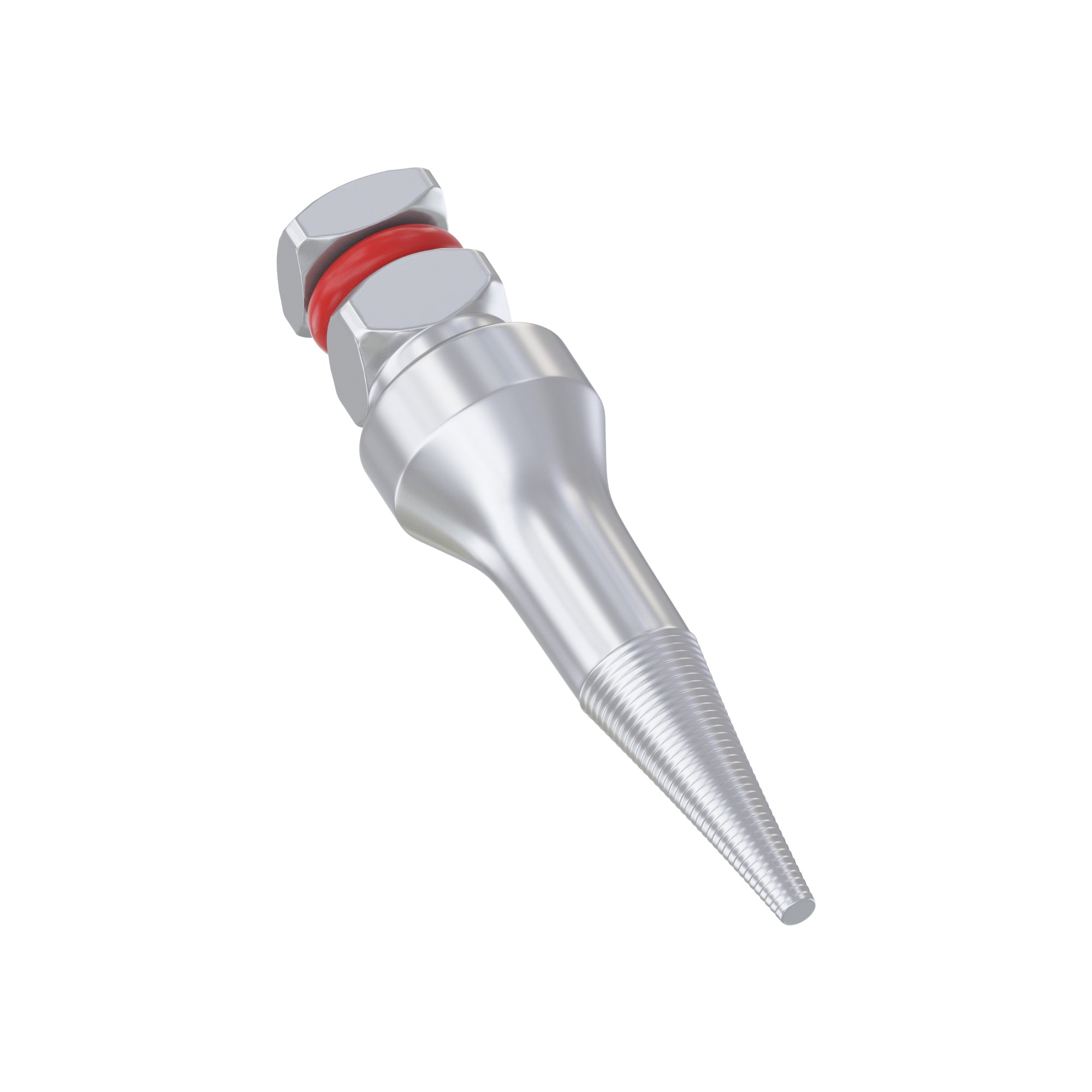

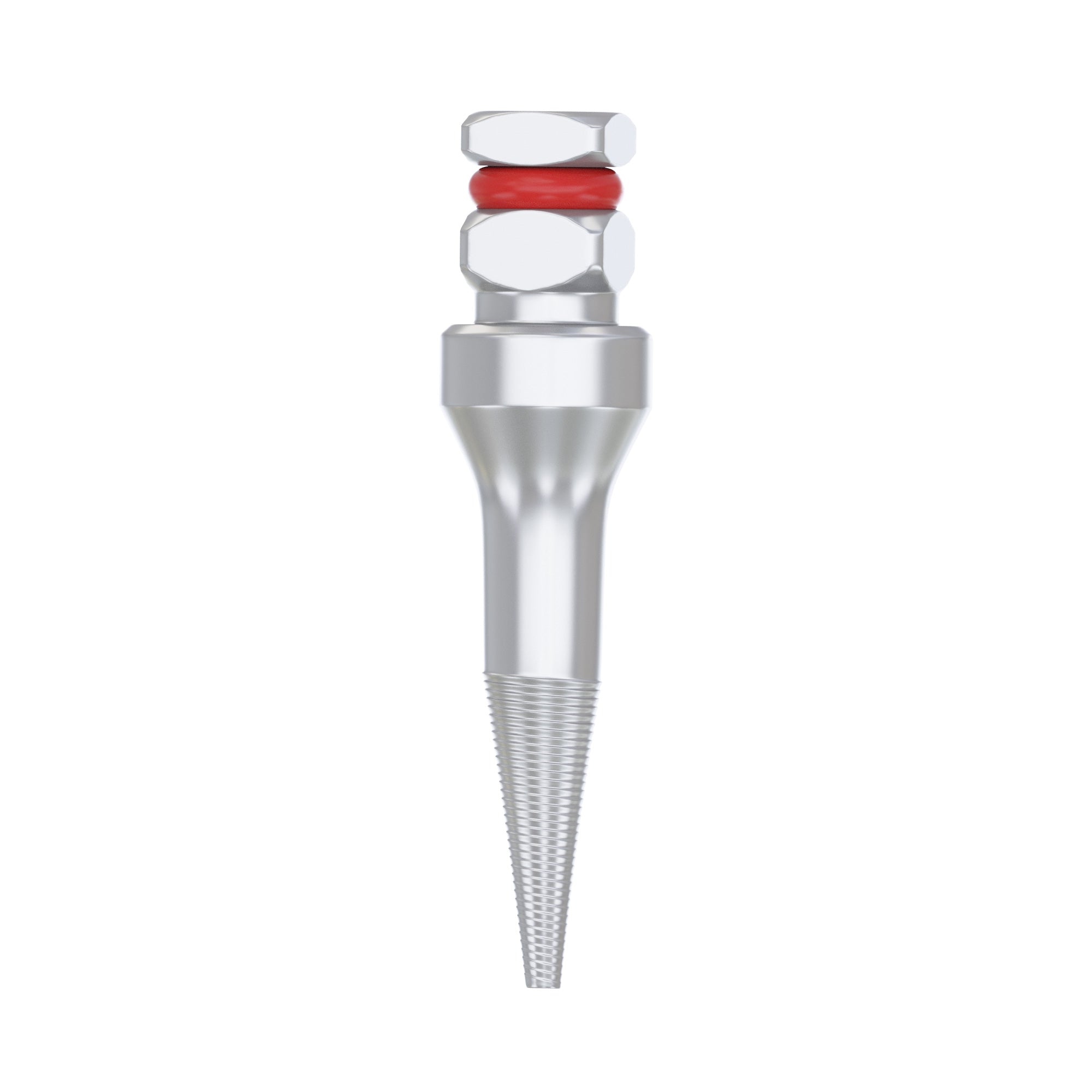

- FRD-01: Implant remover Ø1.6/1.8mm (2pcs)

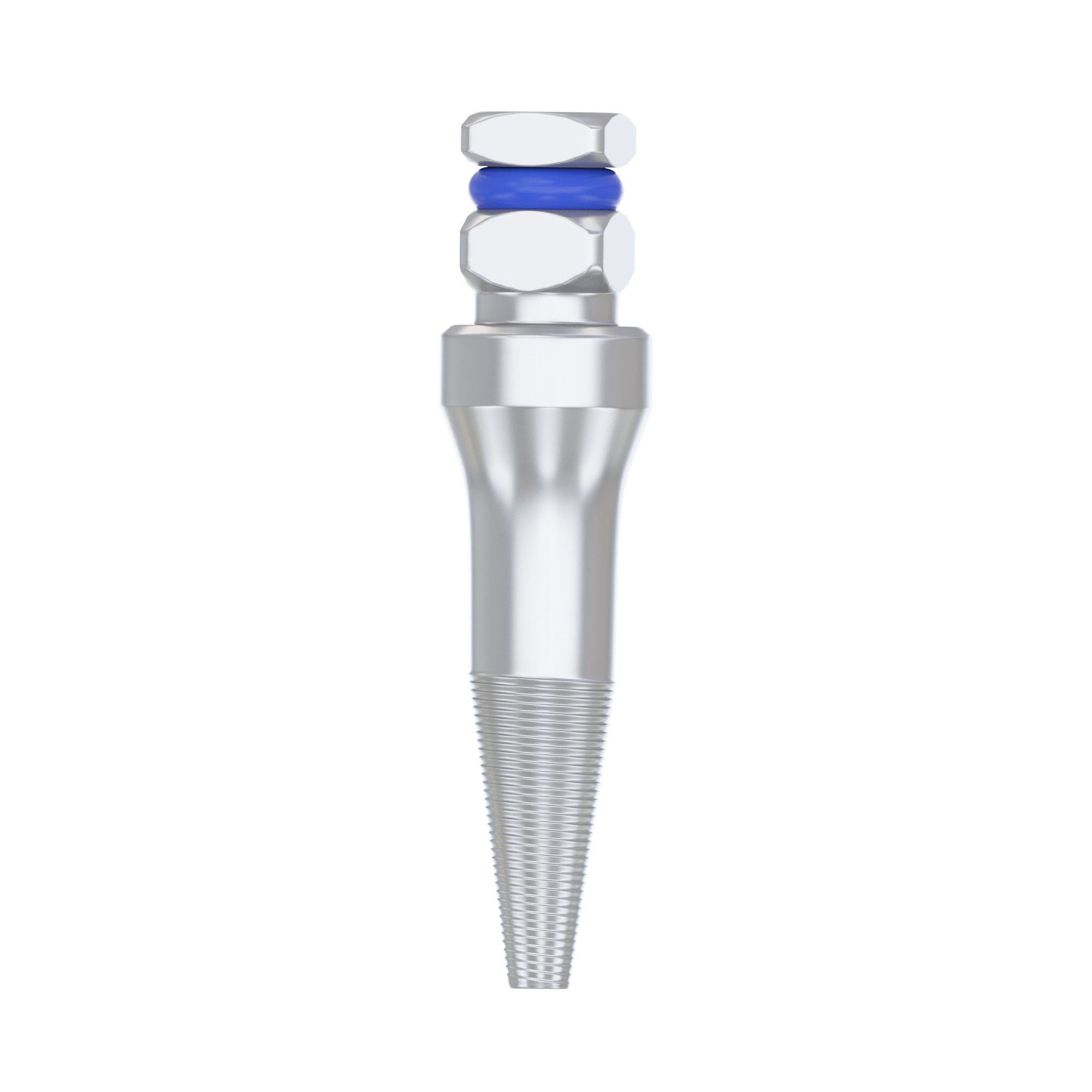

- FRD-02: Implant remover Ø2.0/2.5mm (2pcs)

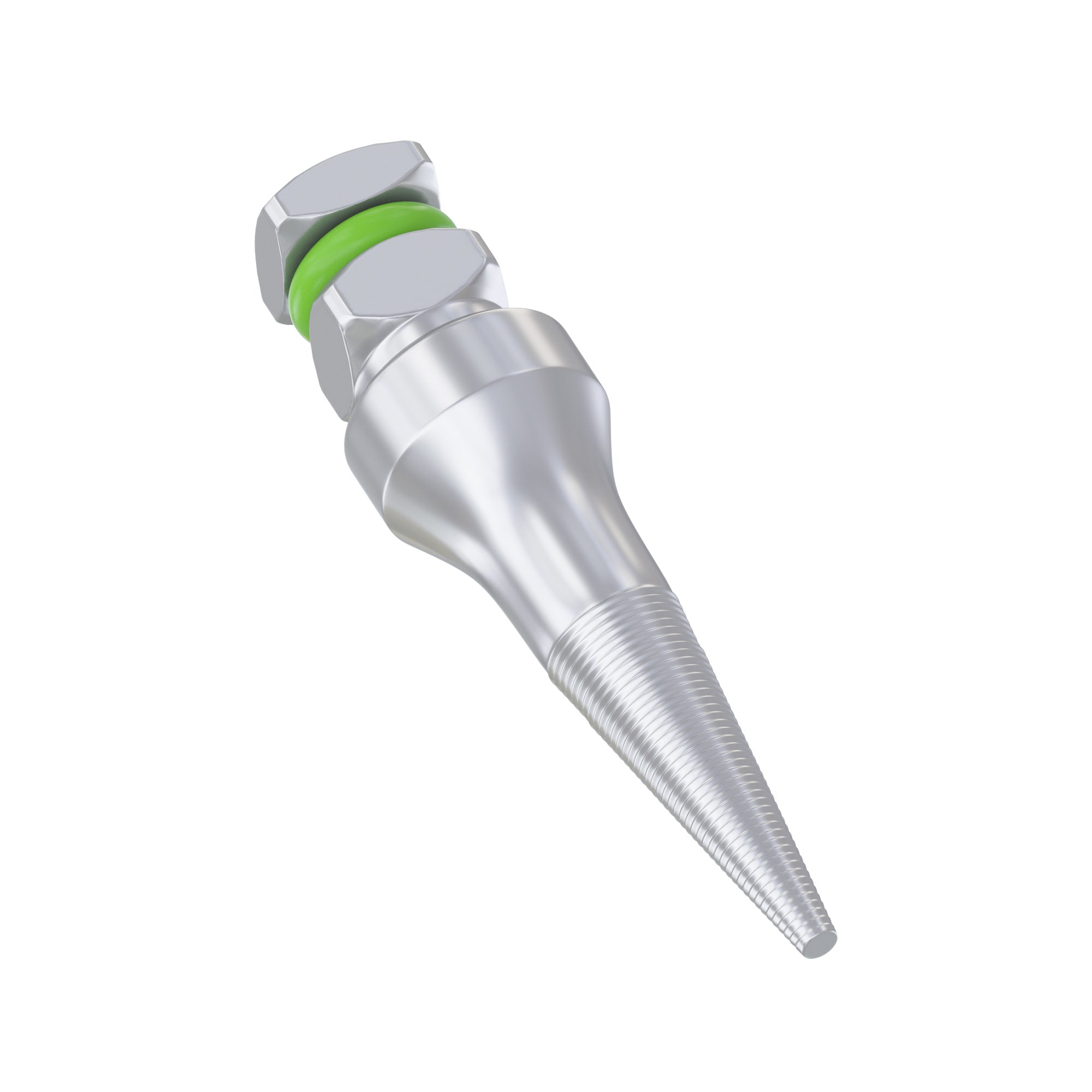

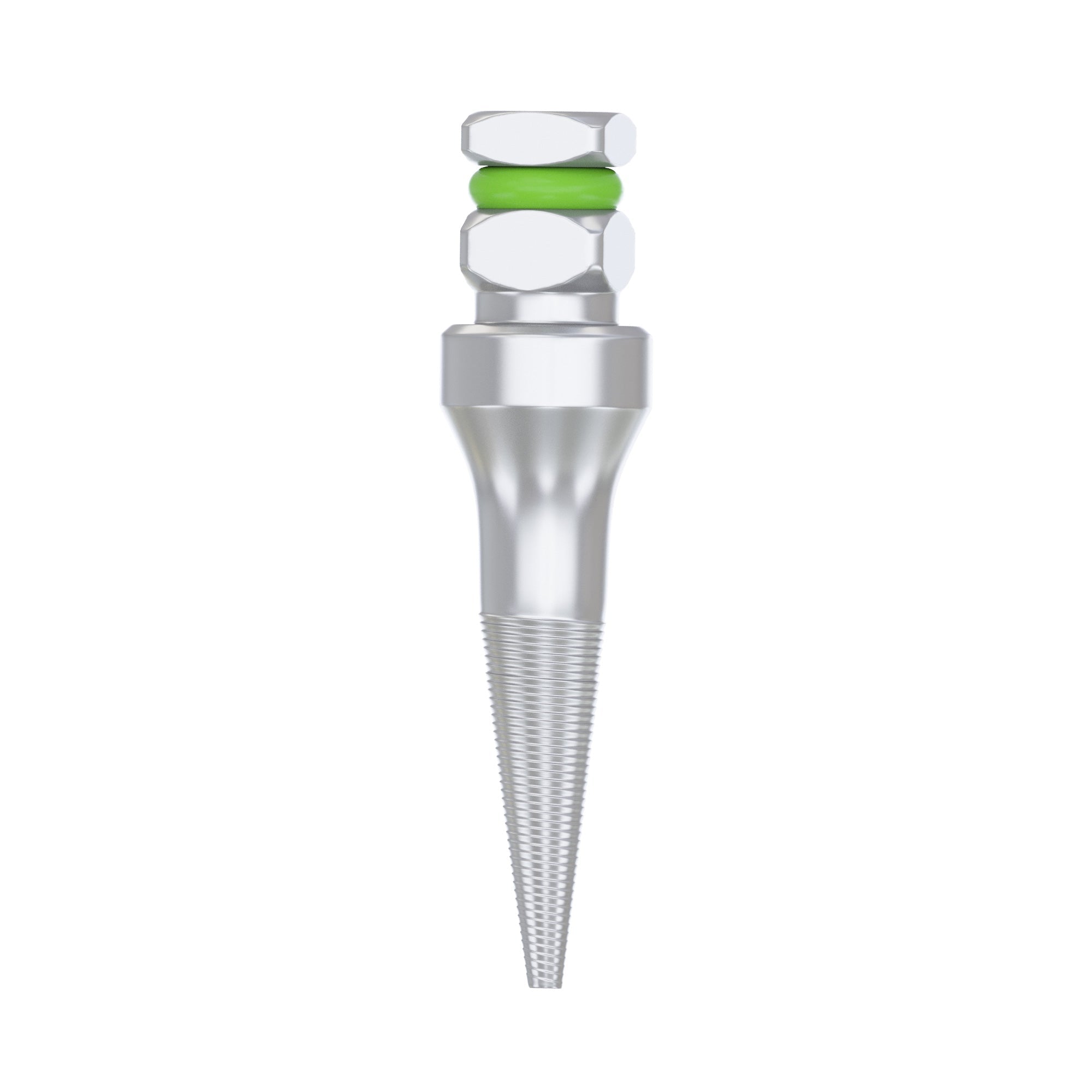

- FRD-03: Implant remover Narrow (1pcs)

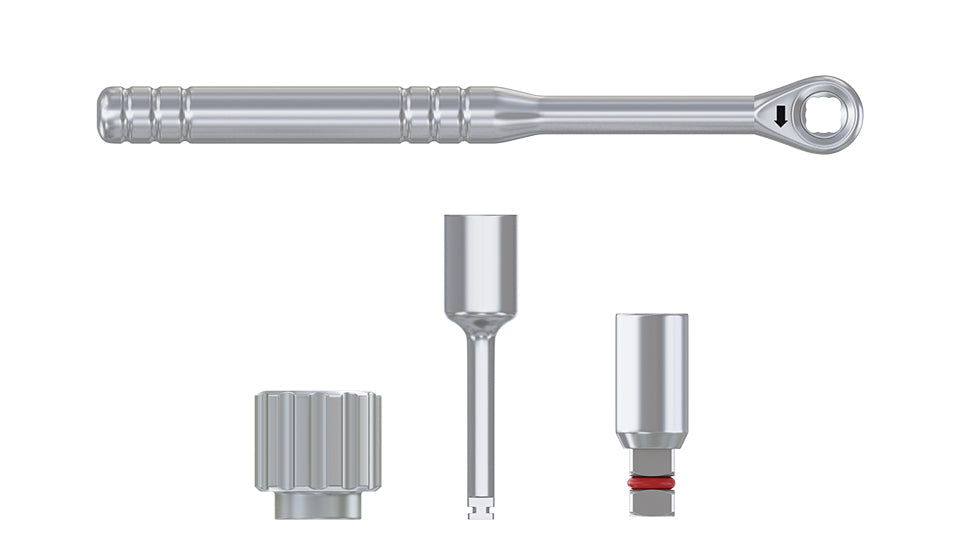

- RE-02: ratchet extension square connection type Ø4.0mm (1pcs)
- SDADP-01: Latch-type RA connector adapter (handpiece condenser) (1pcs)
- SDWRH-02: Wrench ratchet - length 110mm (1pcs)
- TH-03: Manual adapter (turning handle) (1pcs)
