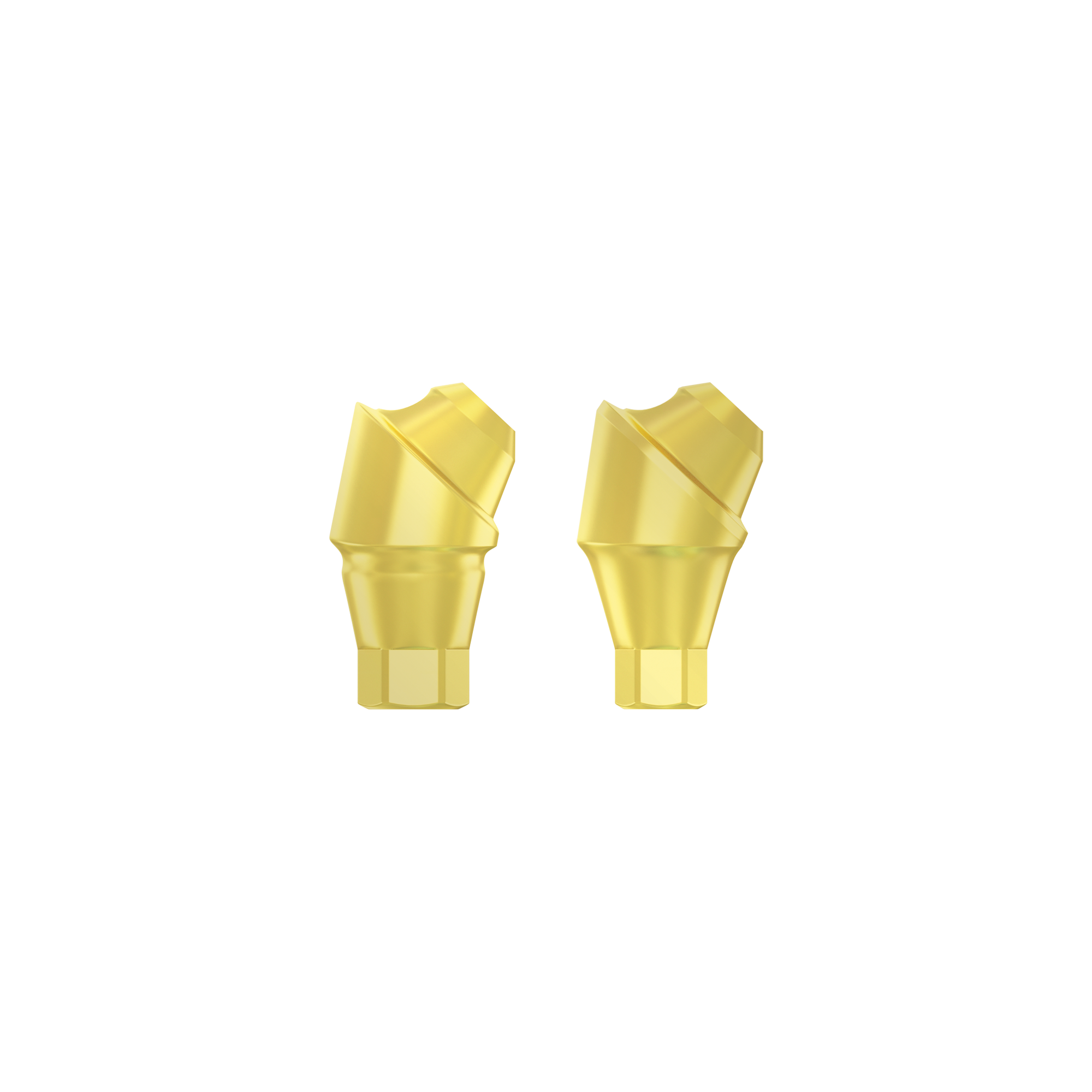

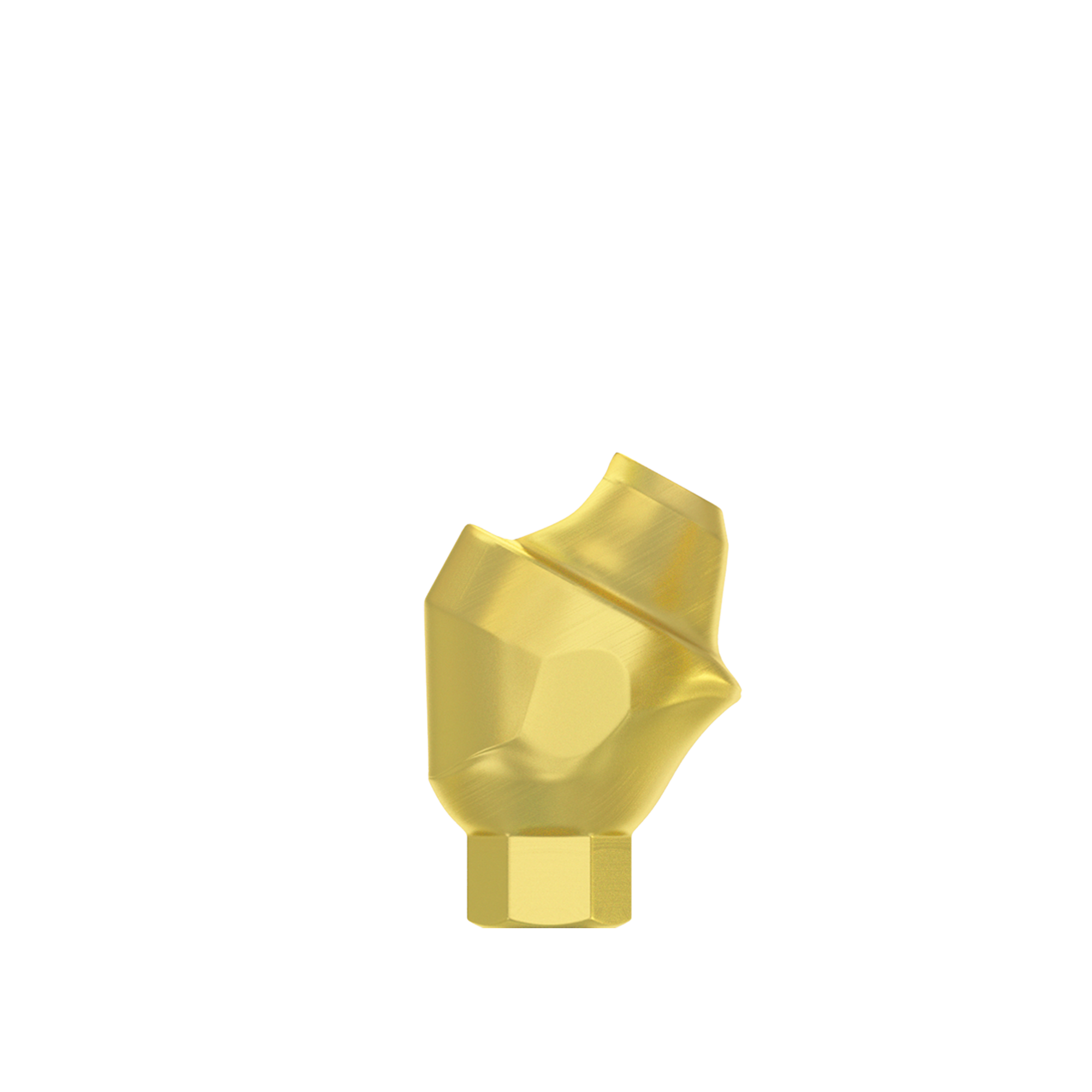

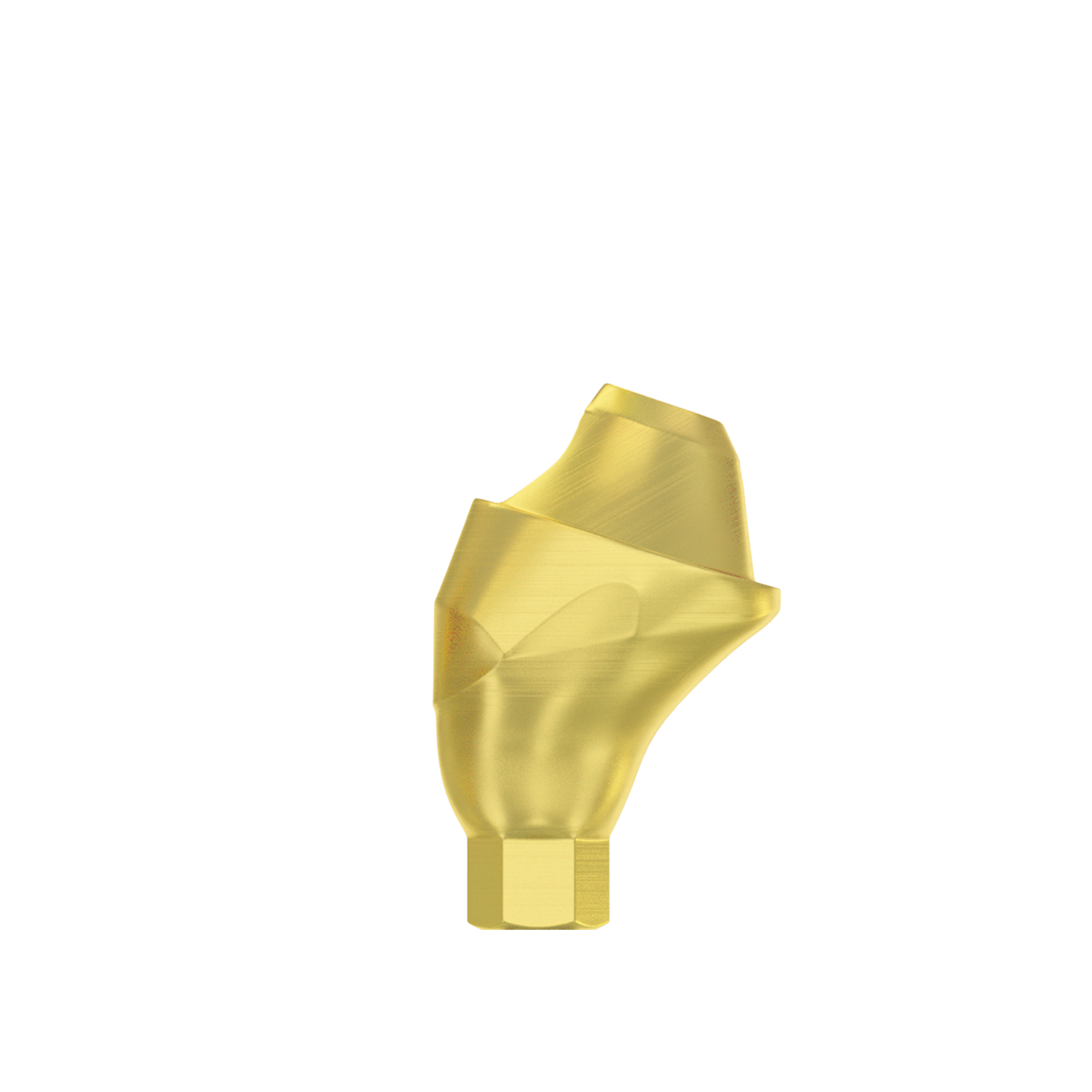

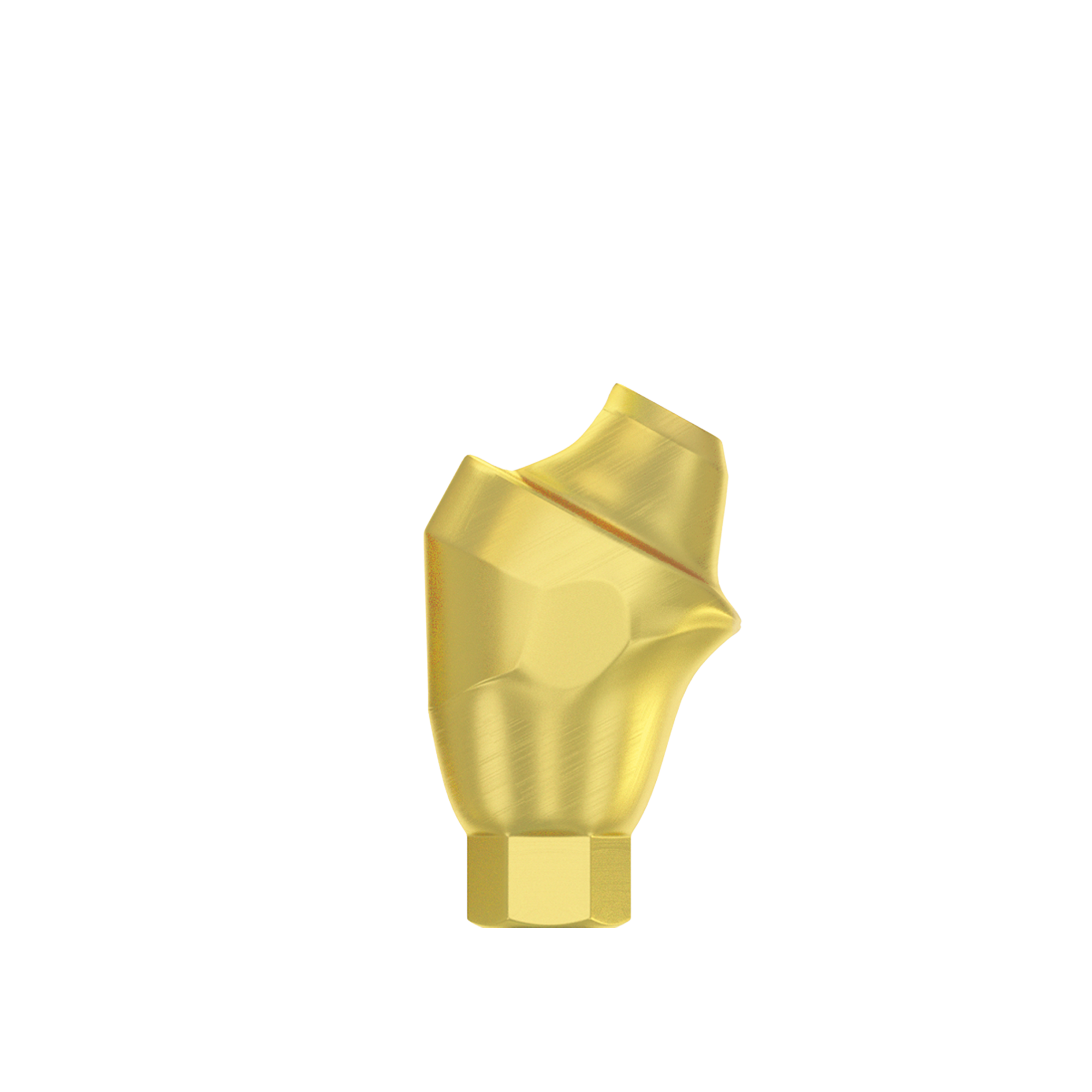

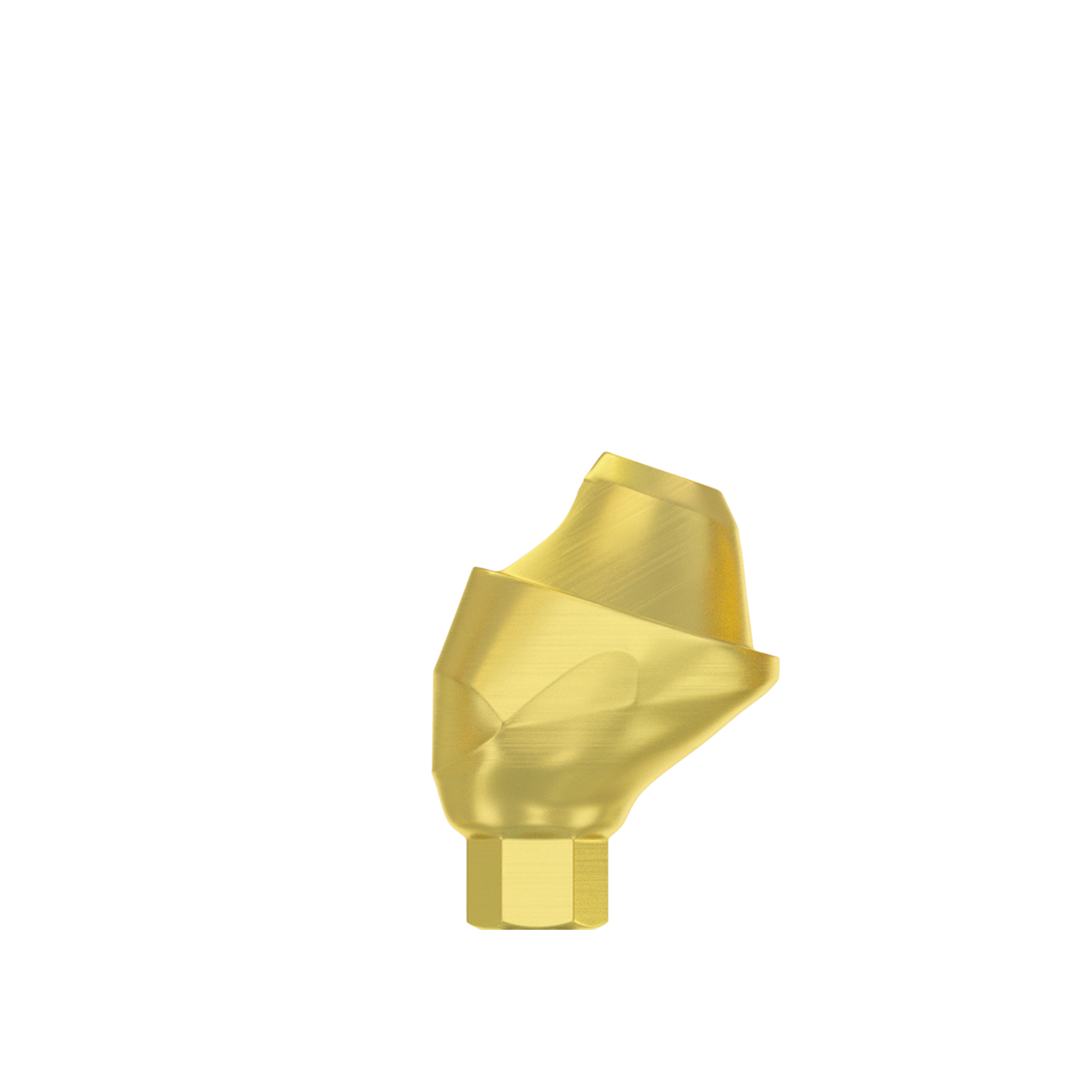

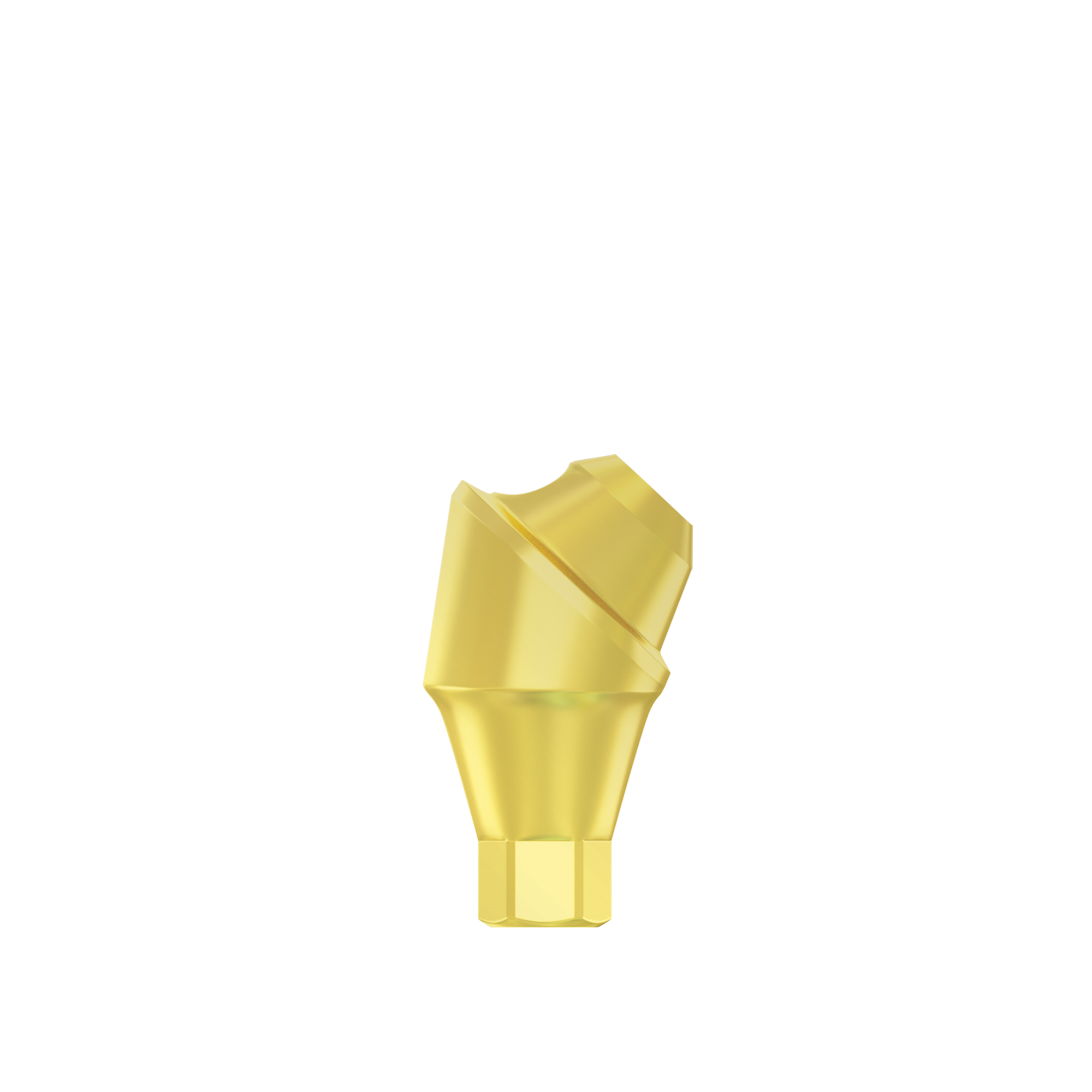

DIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mm
Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar
DIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mmDIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mmDIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mmDIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mmDIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mmDIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mmDIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mmDIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mm

DIP Premium Angulated Multi Unit Abutment (M1.6) 4.8mm - Conical Connection NP Ø3.5mm

SKU: MUA-NB-NP1710

Quick Buy

  • Collar Height / Angle
  • 1.0mm
  • 2.0mm
  • 17°
  • 30°
Add To Wishlist

We deliver to more than 120 countries worldwide.In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping Type Shipping Cost Estimated Delivery Eligibility
DHL Express Worldwide $45.00 2-4 Days All orders
DHL Free Express Worldwide Free 2-4 Days Orders $399.00 and up
International Israel Post $15.00 7-21 Days All orders
International Israel Post (Free) Free 7-21 Days Orders $120.00 and up

Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

We deliver to more than 120 countries worldwide.In most cases it's a next-day dispatch - your order will be processed and prepared for delivery within 24 hours, one business day after receiving payment.


Shipping Type Shipping Cost Estimated Delivery Eligibility
DHL Express Worldwide $45.00 2-4 Days All orders
DHL Free Express Worldwide Free 2-4 Days Orders $399.00 and up
International Israel Post $15.00 7-21 Days All orders
International Israel Post (Free) Free 7-21 Days Orders $120.00 and up

Please note: It is very important to write the address accurately, the package will deliver to the address you provided during the order process. Packages must be signed for by an adult aged 18+ years on delivery.In addition to the price displayed, imported goods might be a subject of additional fees&taxes, collected by your country's customs authorities.

Descripción

The DIP Premium Angulated Multi-Unit Abutments are a key component in connecting endosseous dental implants and multiple implant screw-retained restorations. They are suitable for partial or full jaw as in treatments like the All-on-4 or All-On-6, as they provide edentulous and partially edentulous patients with a full-arch prosthesis.

DIP Premium multi-unit unique design provides the most advantageous soft tissue contouring. The low-profile abutment can be inserted into a shallow or deep tissue with no need for readjusting. DIP Premium multi-unit system made with the highest degree of accuracy. All the parts fit each other with exceptional veracity, thanks to the thorough examination of every component by a leading team of qualified professionals‍

  • DIP Premium multi-unit Time-proven design Allows, work with different implants (regular hexagonal, narrow, conical) without changing the restoration at the multi-unit level

DIP Premium multi-unit abutments could be inserted directly into the implant for any screw-retained restoration. A broad spectrum of screw-retained supra structures is available for this multi-unit system presenting additional possibilities for each patient's specific individual case.

Indications:

  • Multiple teeth
  • Complete bridges
  • Fabrication of long-term/permanent restorations
  • All-on-4,All-on-6
  • For non-parallel implant alignment cases

Features:

  • Excellent biocompatibility, no risk of abruption.
  • Precise, non-rotational, functional.
  • Simple, fast, and accurate positioning.
  • Outstanding stability for the crowns and bridges
  • Superior aesthetic results.

Technical information:

  • Made of Titanium alloy Ti-6Al-4V grade 23 ELI - biocompatible
  • Narrow Platform NP - Ø4.8mm / collar height 1.0-2.0mm
  • Implant Level Connection Conical Connection NP Ø3.5mm, compatible with: DIP Conical NP, NobelActive® NP platform Ø3.5mm
  • Multi Unit level Connection M1.6 Compatible with : DIP®, MIS®,
  • 17° Degrees
  • 30° Degrees
  • Titanium fixation screw included with every abutment

Material:
  • ["Titanium alloy Ti-6Al-4V grade 23 ELI"]
Indications:
  • ["Multiple teeth","Complete bridges","Fabrication of long-term/permanent restorations","All-on-4,All-on-6","For non-parallel implant alignment cases "]
Package contents:
  • ["1 Angulated MUA + 1 Fixation Screw"]
Platform:

Conical Connection NP Platform Ø3.5mm

Units in a box:

1
